Entering & Exiting Diagnostics: Notes

Speedometer, odometer and trip monitor are used to display Central Control Module (CCM) information while in diagnostic mode. Speedometer displays CCM and ECM Diagnostic Trouble Codes (DTCs). Odometer displays CCM data. Trip monitor displays system being tested and test being performed. See Fig 1 and Fig 2 . Driver Information Center (DIC) buttons are used to transmit instructions to CCM while in diagnostic mode. See Fig 3 .

If a code-setting malfunction is present, "SYS" (SYSTEM ERROR) will flash on instrument cluster trip monitor. SYS will flash 3 times every 15 seconds when a current code is set. If a PASS-Key(R) malfunction code (DTCs 51-54) is set, SECURITY indicator will flash.

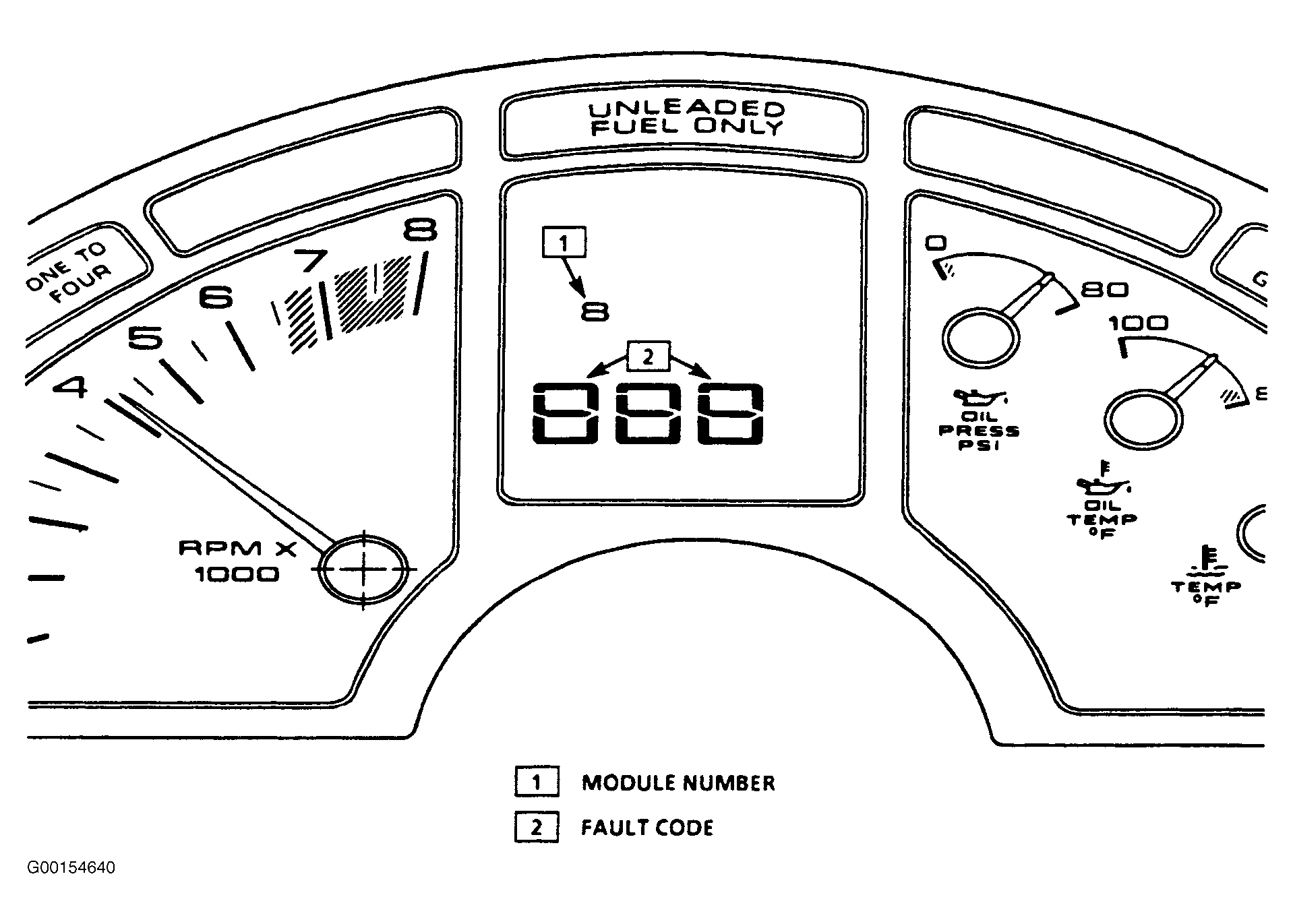

Fig 1: Automatic Diagnostic Display Mode

Courtesy of GENERAL MOTORS CORP.

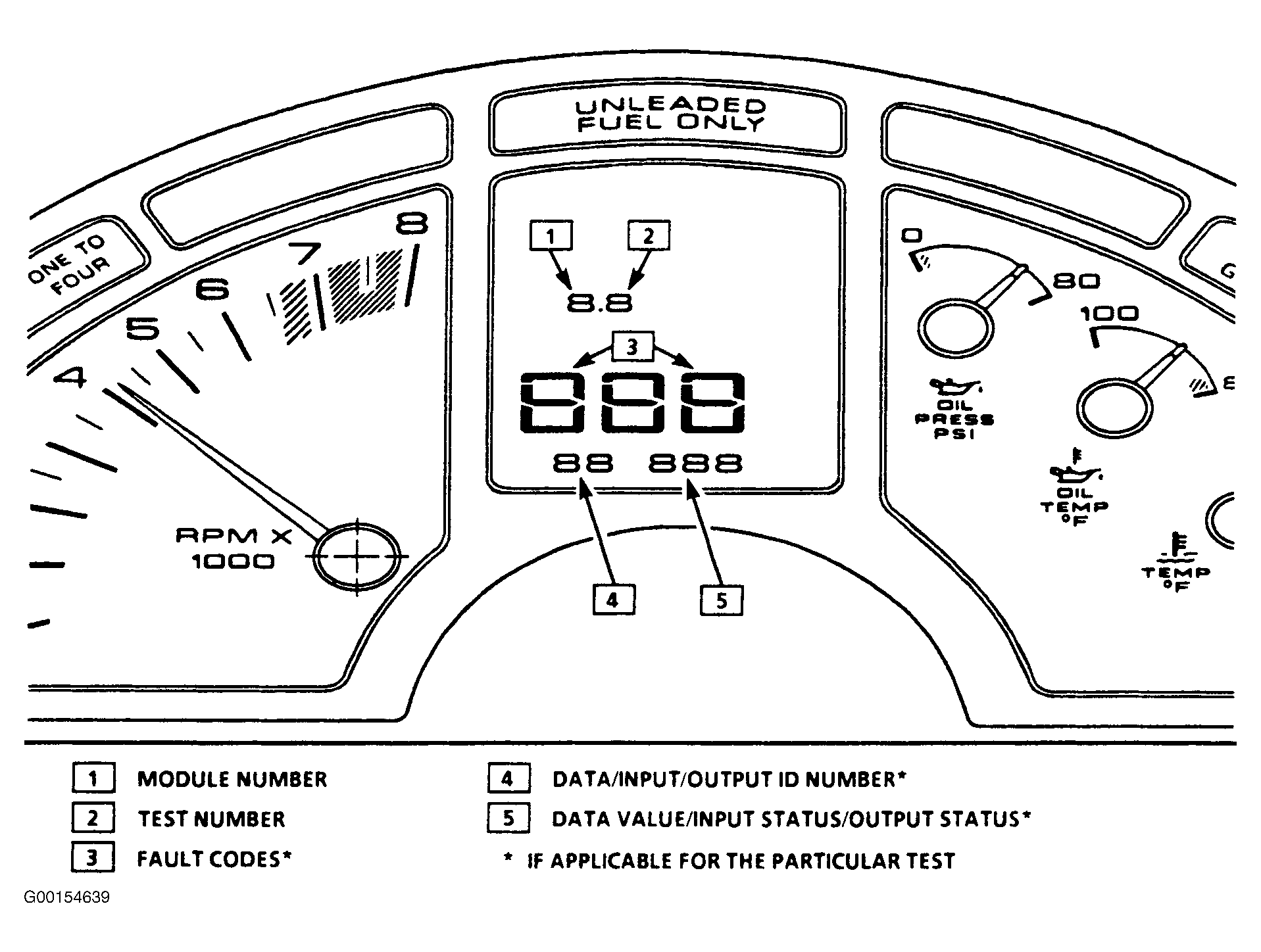

Fig 2: Manual Diagnostic Display Mode

Courtesy of GENERAL MOTORS CORP.

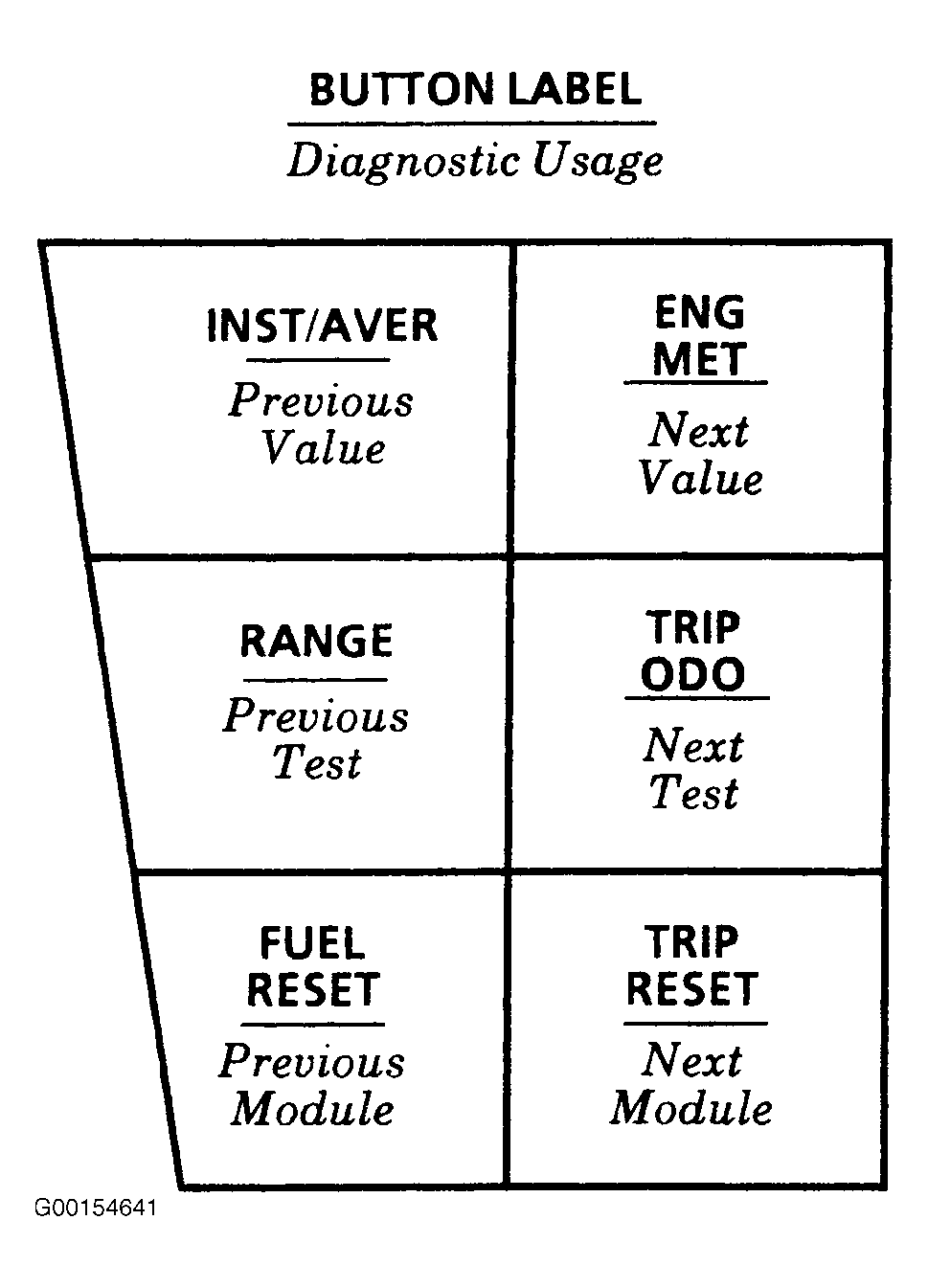

Fig 3: Identifying DIC Button Diagnostic Functions

Courtesy of GENERAL MOTORS CORP.
