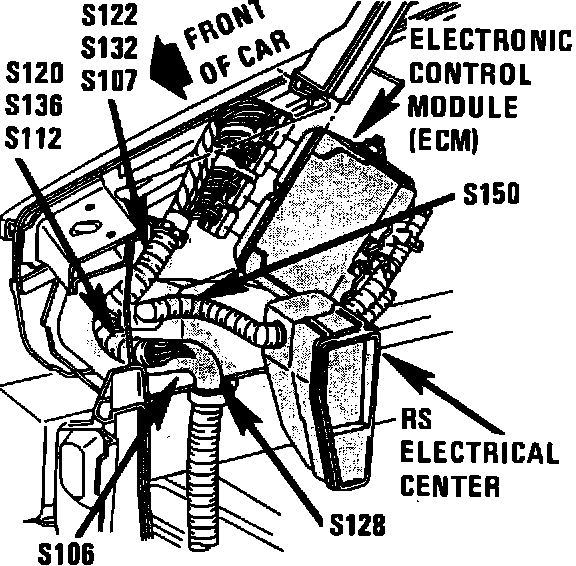

Electronic Control Module (ECM)

RH Front Of Engine Compartment:






RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Lumina & 1992 Grand Prix
