Window Motor Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Window Motor Test
To perform test, see
Fig 1
.

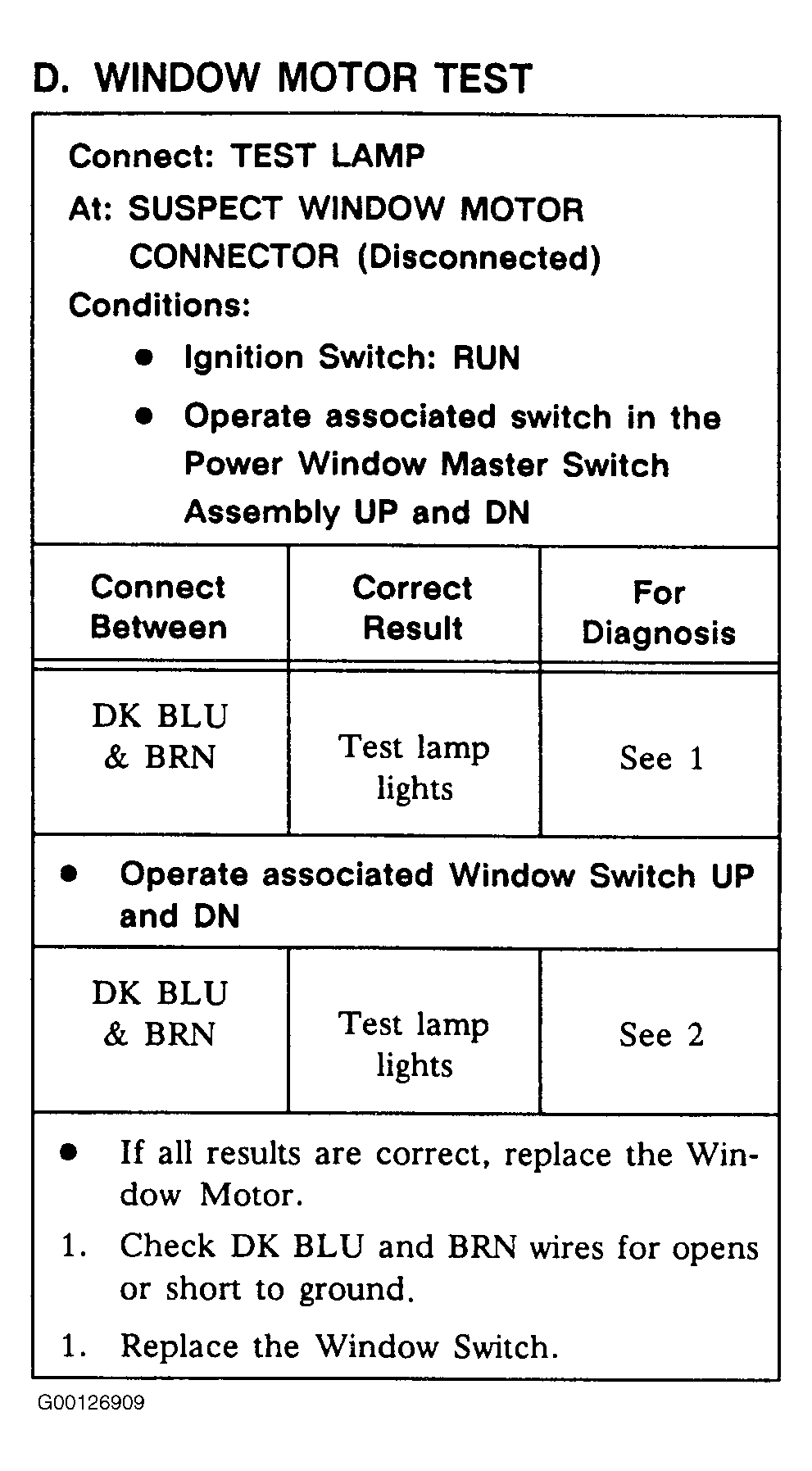

Fig 1: Window Motor Test
Courtesy of GENERAL MOTORS CORP.
