Electronic Control Module

Electronic Control Module:

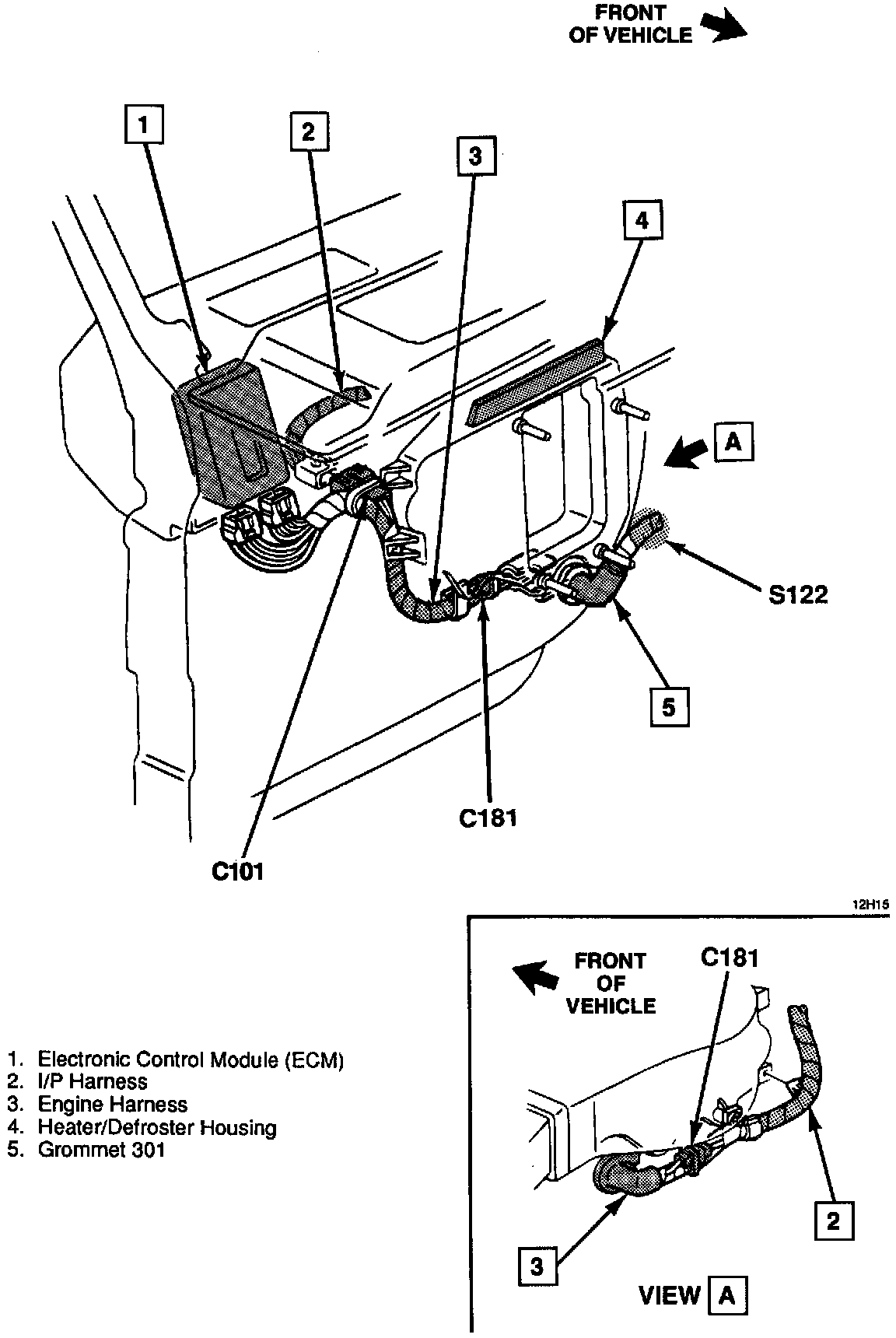

Electronic Control Module - Behind RH side of I/P
