Chart No. 4: One Key Lock Switch Inoperative
For flowchart diagnosis, refer to illustration. See
Fig 1
.

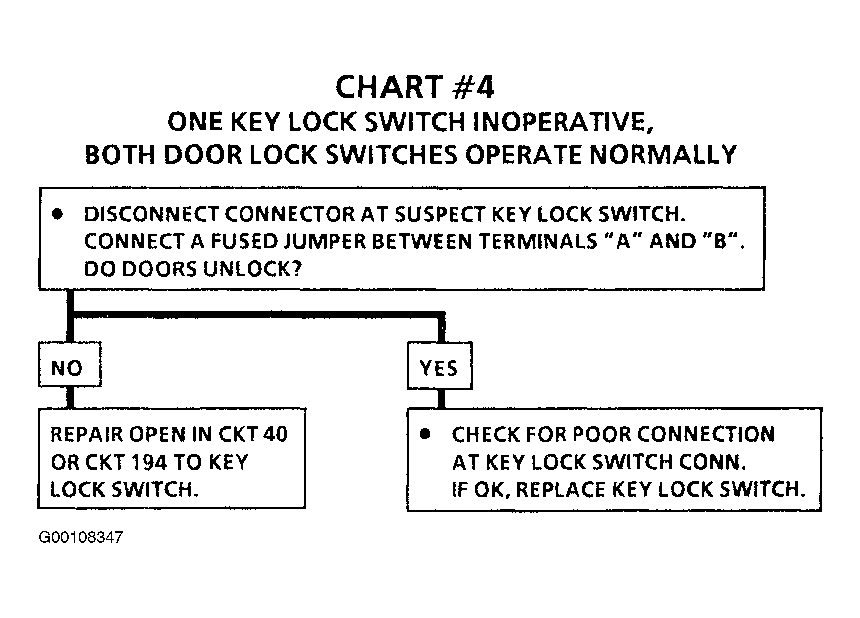

Fig 1: Chart No. 4: One Key Lock Switch Inoperative
Courtesy of GENERAL MOTORS CORP.
