Electronic Brake Control Module

Electronic Brake Control Module (EBCM) Connector Face:

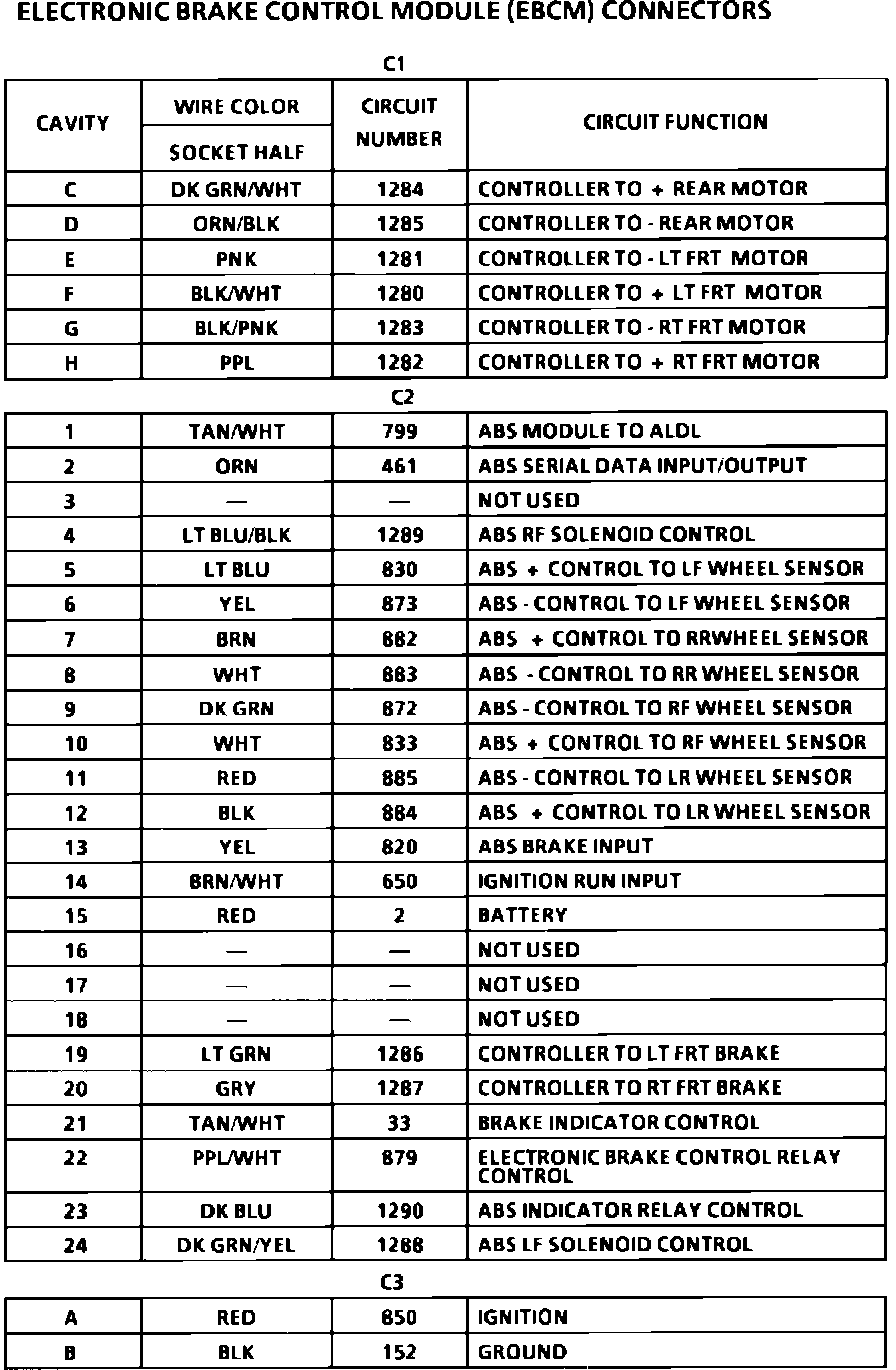

Electronic Brake Control Module (EBCM) Connector Terminal I.D.:
