Electronic Control Module (ECM)

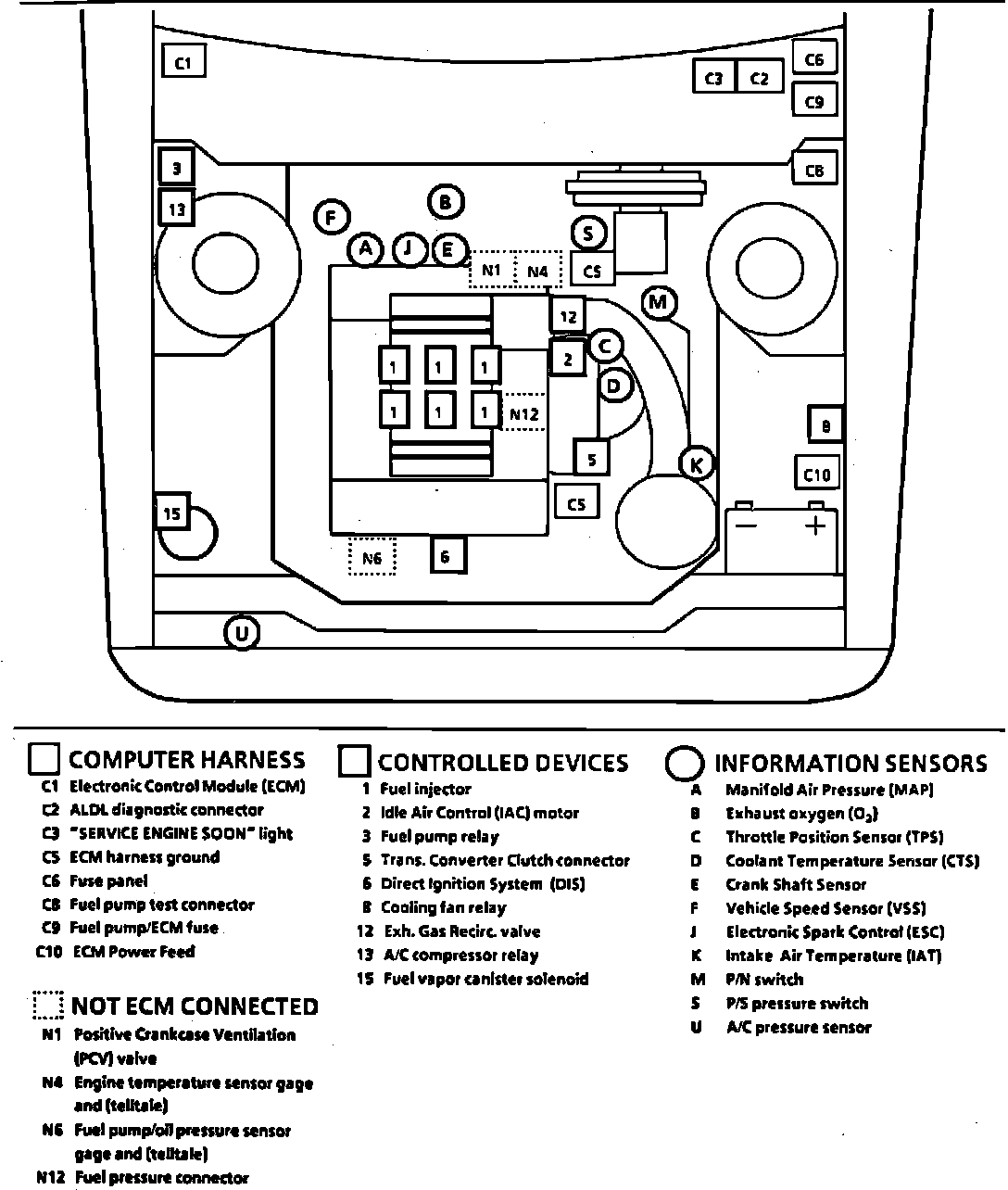

Engine Component Locations.:

Behind RH Side Of I/P

Applicable to: 1992 3.1L/V6-192
