Cavalier/Z24 V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Connector C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

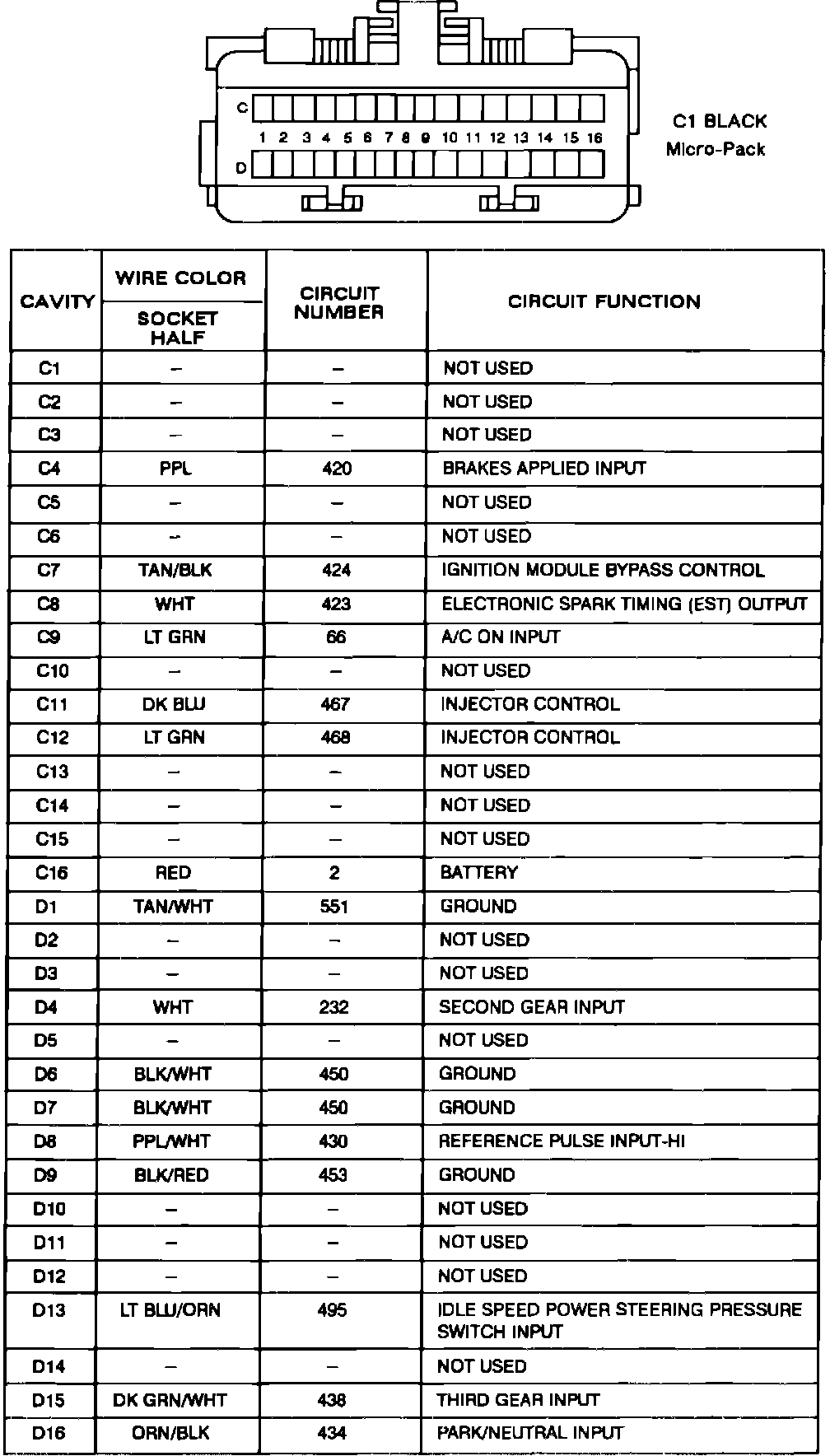

Connector C1
ECM Connector C1:
