Low Tire Pressure Warning System Module

Behind Center Of I/P:

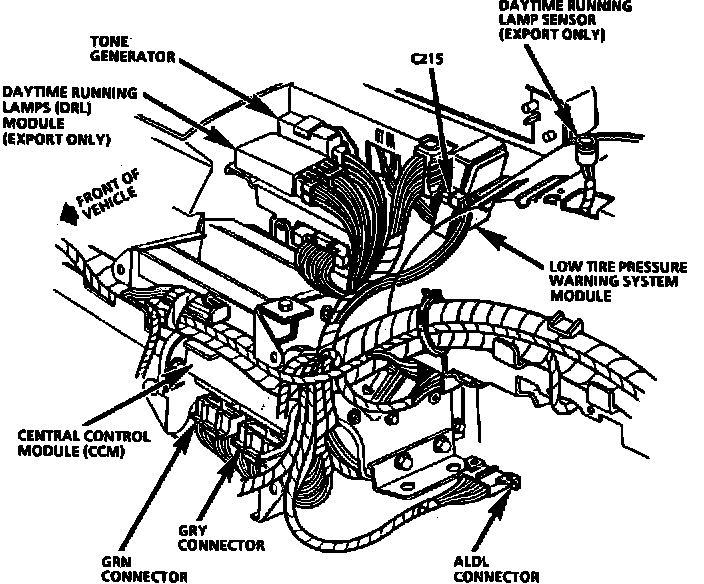

CCM & ALDL Connector:





Behind Center Of I/P
