Home
>>
Chevrolet
>>
1992
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Central Control Module
>>
CCM Connectors
>>

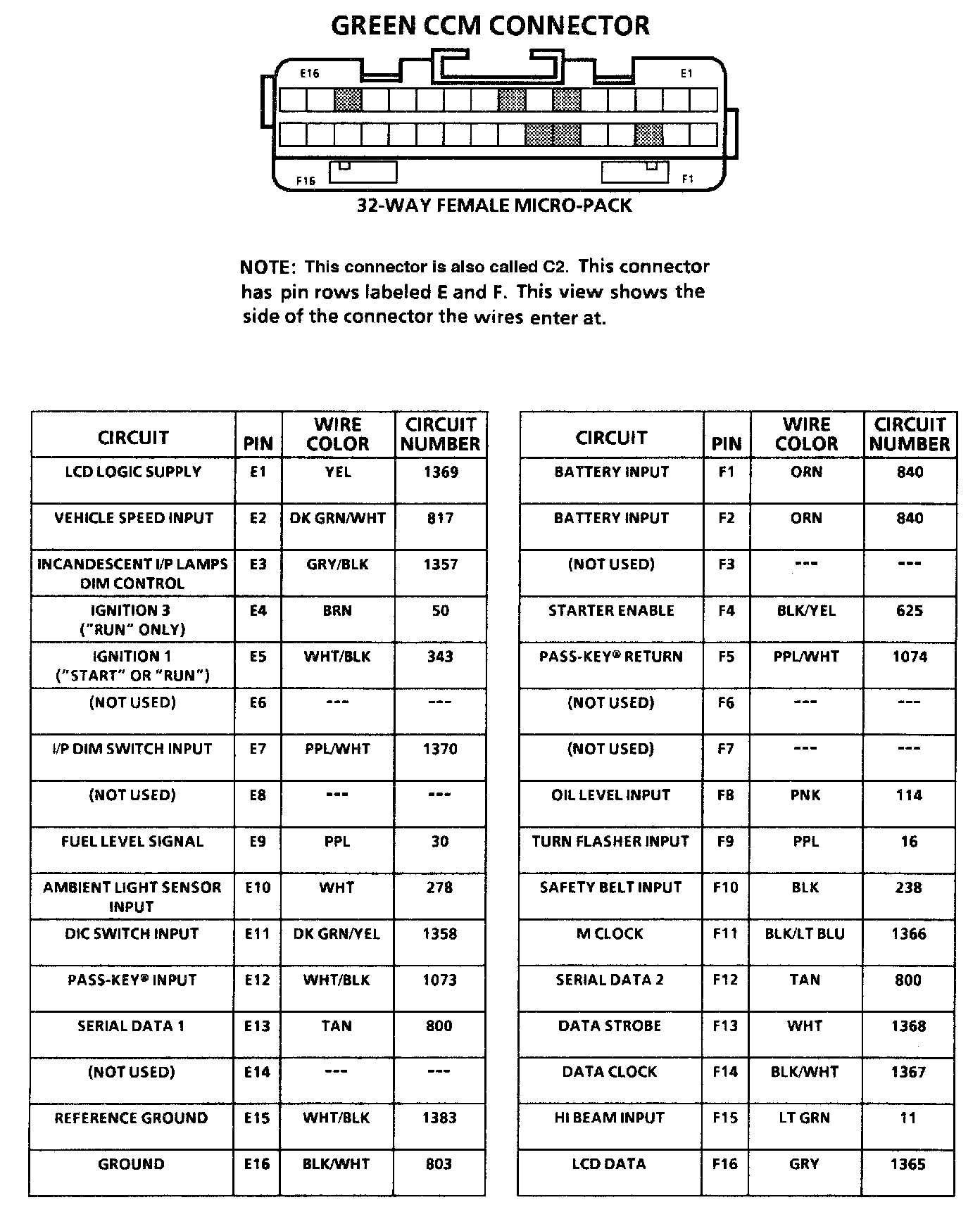

Green
