Oxygen Sensor: Locations

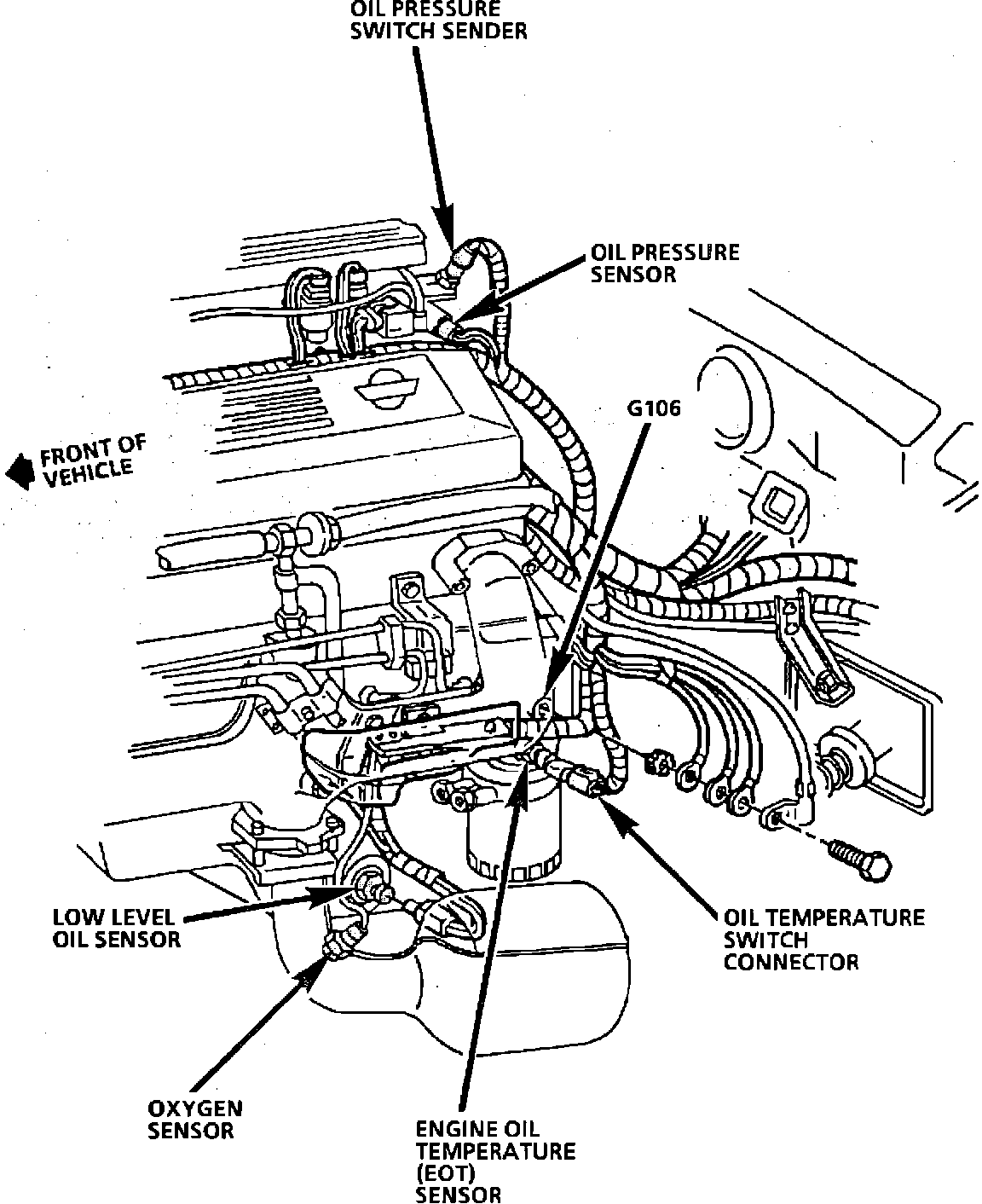

Underhood Component Locations:





The left oxygen sensor is located in the left exhaust pipe as shown.

The right oxygen sensor is located respectively, in the right exhaust pipe.
