Vehicle Speed Sensor: Locations

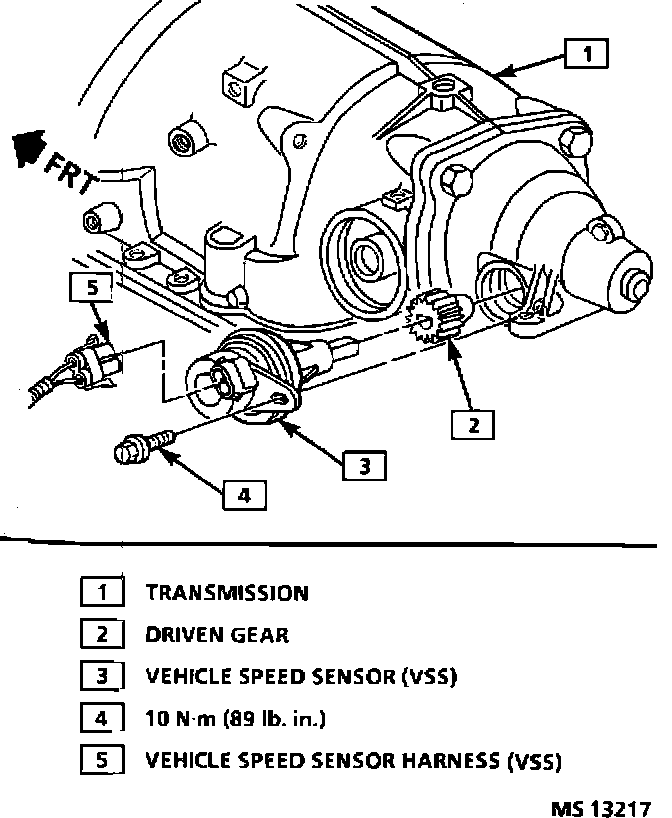

M/T Speed Sensor Service:

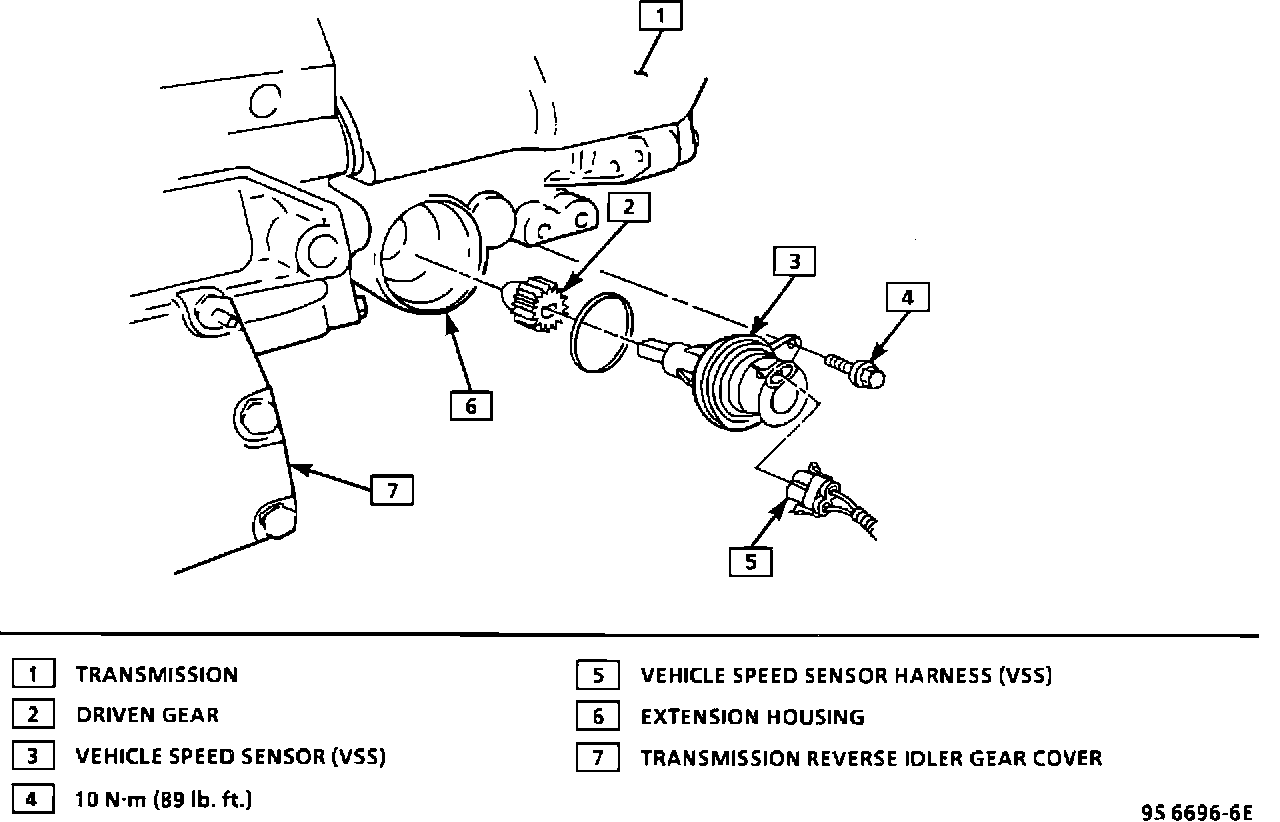

A/T Speed Sensor Service:





The vehicle speed sensor is located in the tail section of the transmission.
