Test B: Right Power Window Only Operates From Driver's Side Window Switch

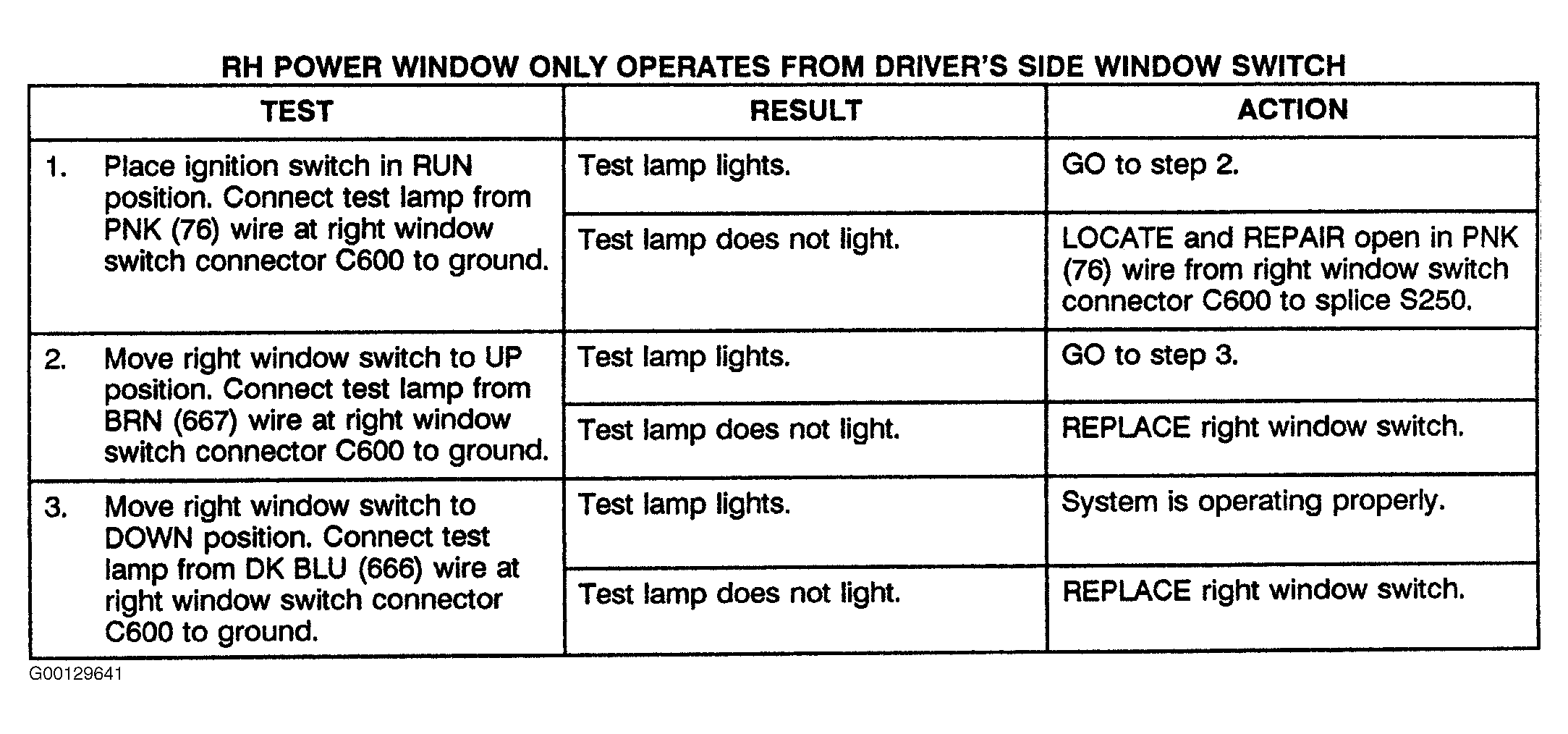

For testing procedure, see Fig 1 .

Fig 1: Test B: Right Window Only Operates From Driver's Switch
G00129641Courtesy of GENERAL MOTORS CORP.
