Home >> Chevrolet >> 1993 >> Caprice RWD V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Brake Pressure Modulator
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Brake Pressure Modulator

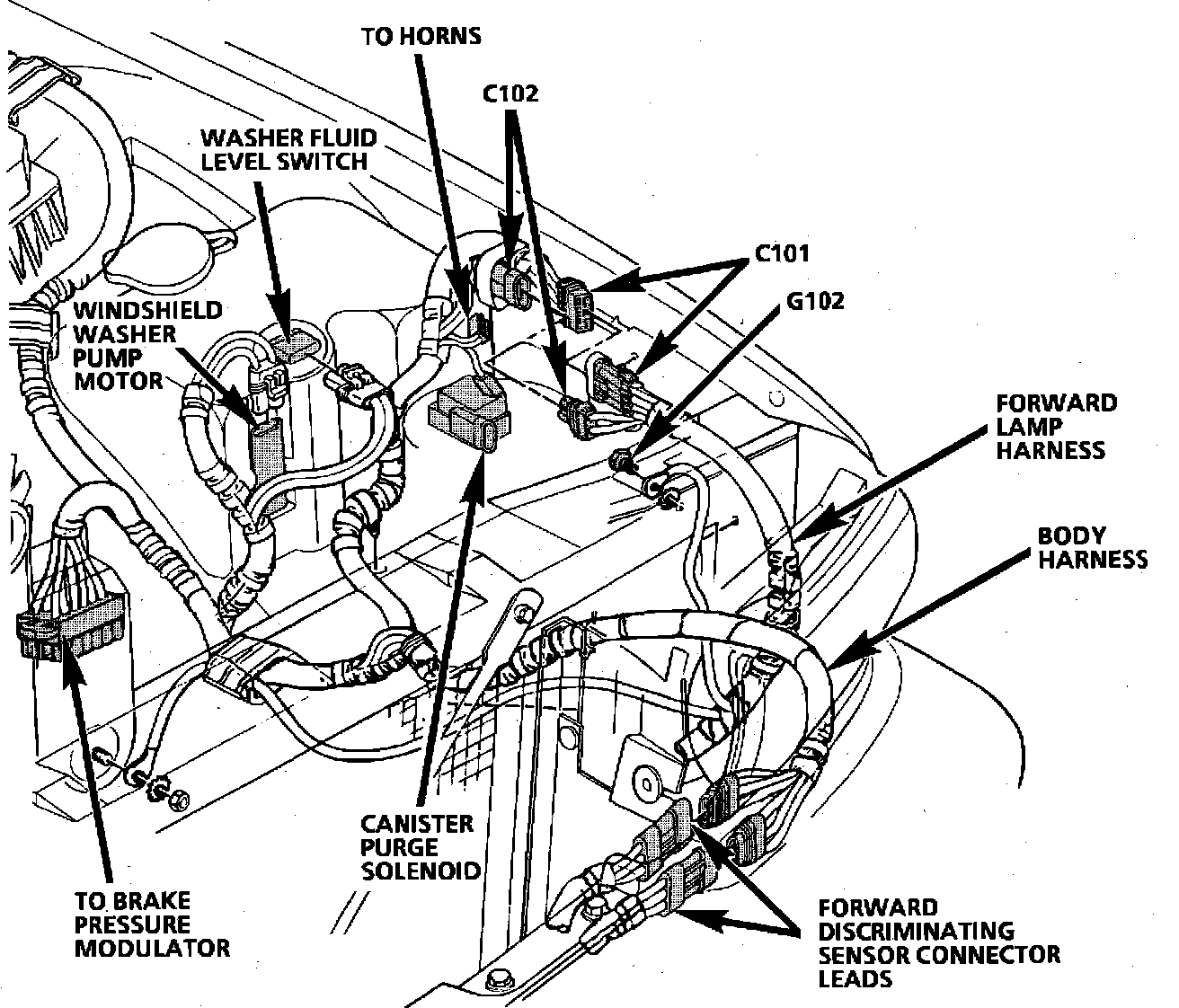

Component Location View. LH Forward Engine Compartment:




LH Engine Compartment, left of Generator
