Interior - Squeak and Rattle Diagnostic Guide

Group Ref.: Body

Corporate Ref. No.: 331048

Date: September, 1993

SUBJECT:
SQUEAK AND RATTLE DIAGNOSTIC GUIDE (INFORMATION)

MODELS:
1993 CHEVROLET CORVETTE

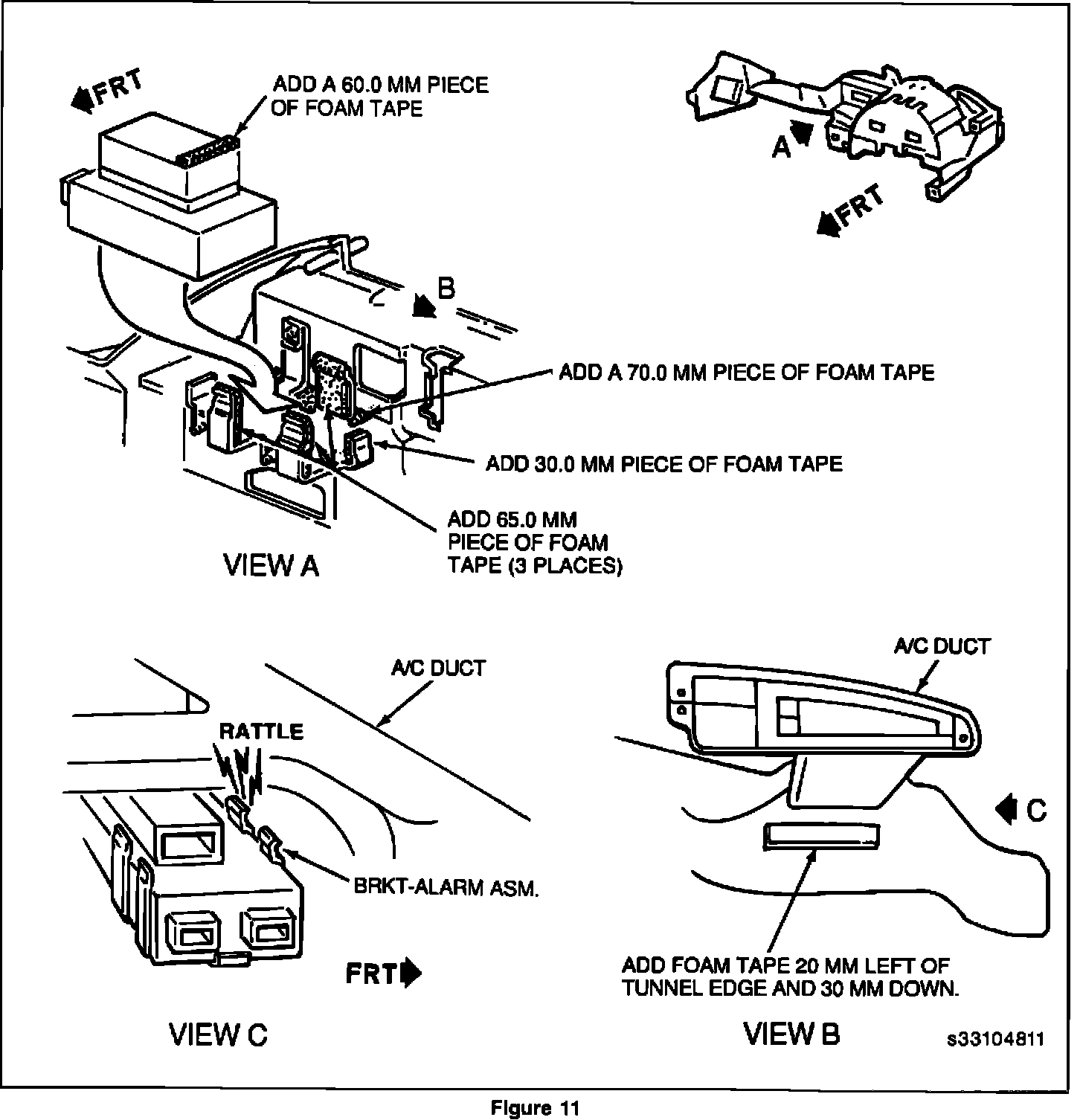

The information in this bulletin is being distributed as an aid in squeak and rattle diagnosis. For further reference refer to Corporate Bulletin 131014 (Chevrolet # 91-264-10 and GM of Canada # 91-2-184) and 1992 and 1993 Service Manuals, Section 10-1A "Noise Reduction". The insulator material references describe either 3M # 06370 (U.S.), # 06373 (CANADA) (6 mm, 1/4" thick) or # 06375 (3 mm, 1/8" thick) foam tapes; Dominion/American Sure Seal # RAB1 (6 mm, 1/4" thick) foam tape (or equivalent). The loop and felt insulator material has adhesive backing and may be obtained from most local fabric stores.
