With 4L80E Automatic Transmission
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With 4L80E Automatic Transmission
Powertrain Control Module - W/HD 4-Speed Automatic Overdrive Transmission Gasoline Engines:

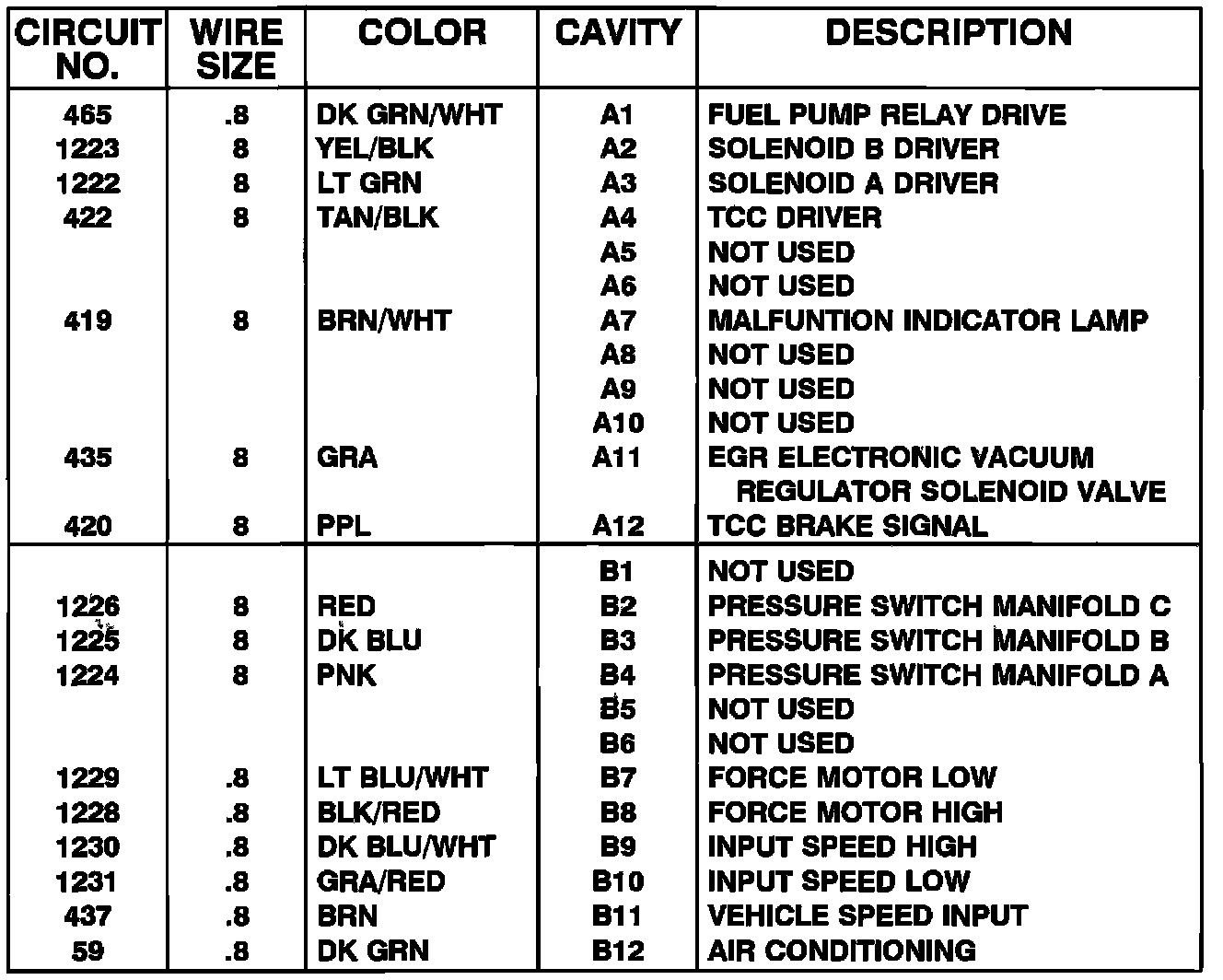

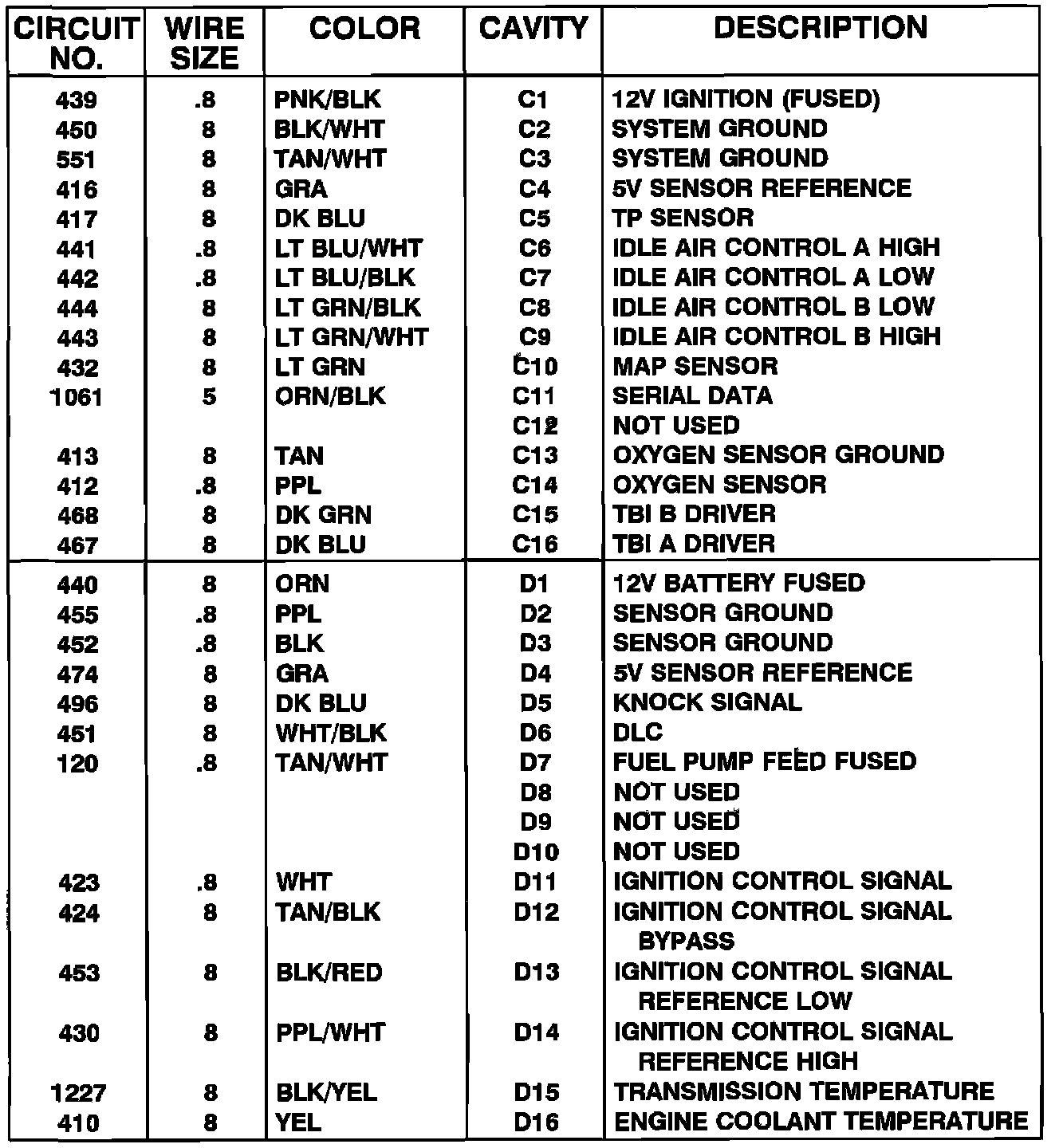

Powertrain Control Pinouts - W/HD 4-Speed Automatic Overdrive Transmission Gasoline Engines:
