Vehicle Speed Sensor (VSS) Module/Buffer

Location Is Driver Side Underdash As Viewed From Engine Compartment:

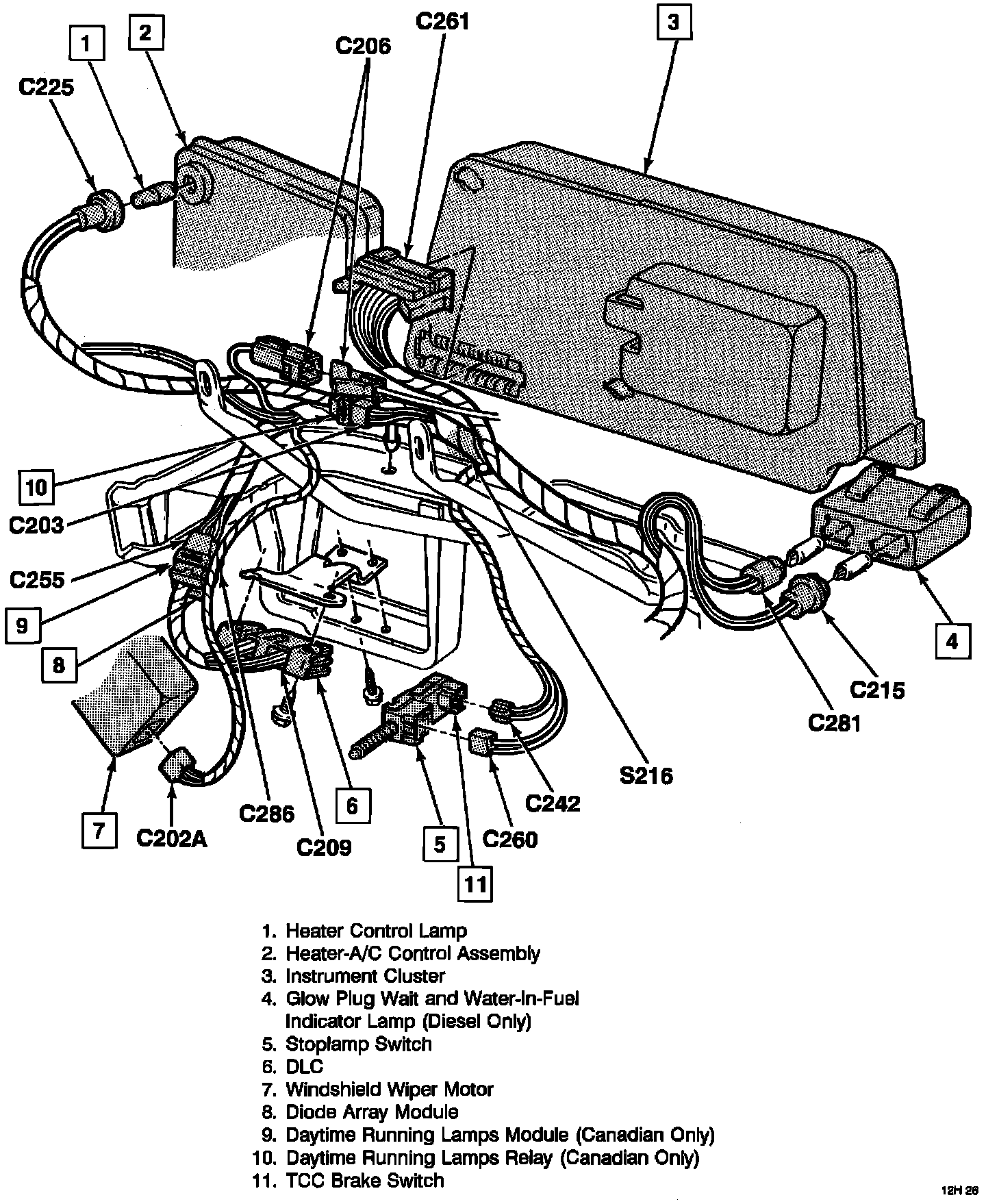

I/P Wiring And Brake Switch:
