LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
1993
>>
G 10 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
>>
ECM/PCM Inputs
>>
With 4L60-E Automatic Transmission
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With 4L60-E Automatic Transmission

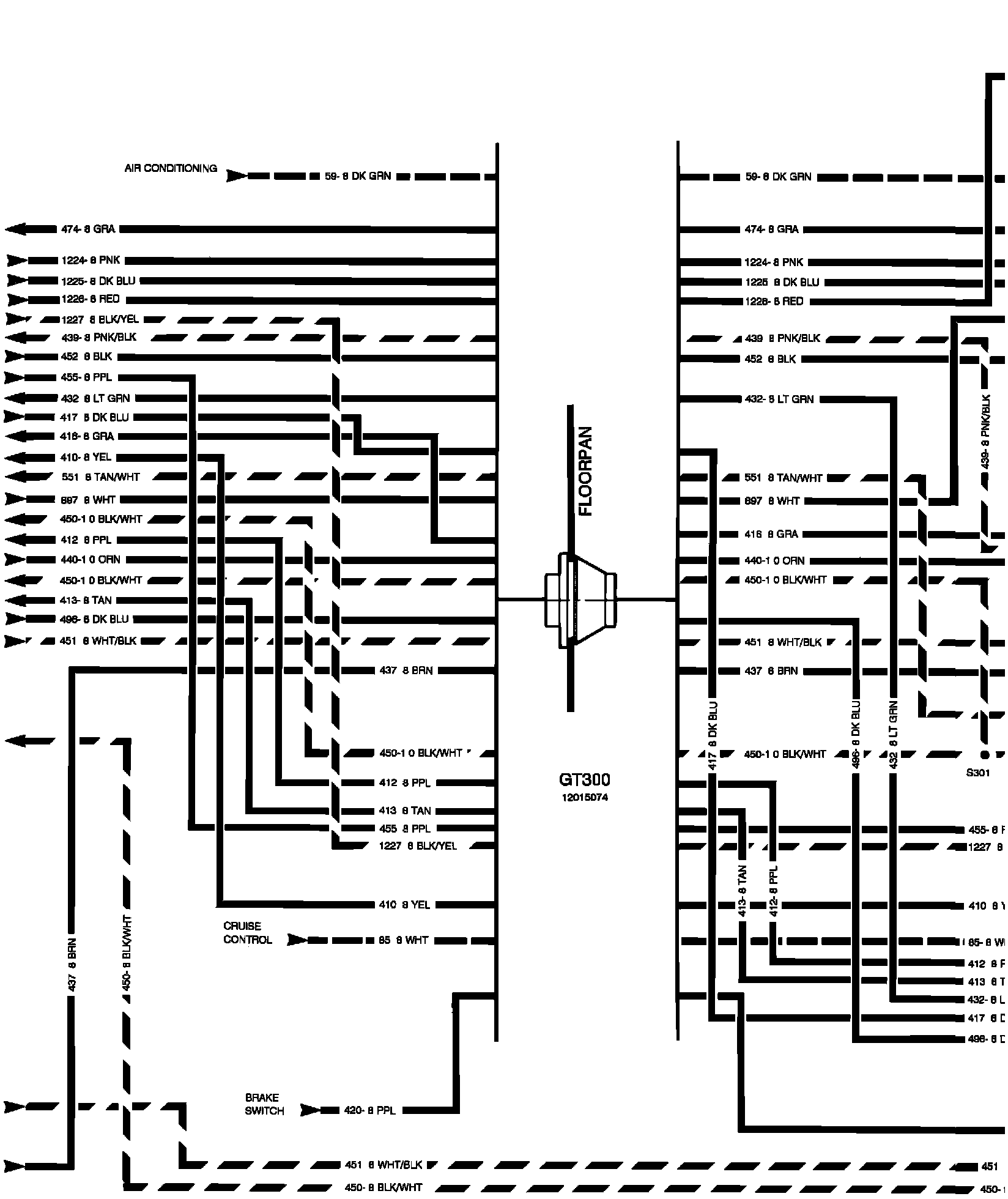

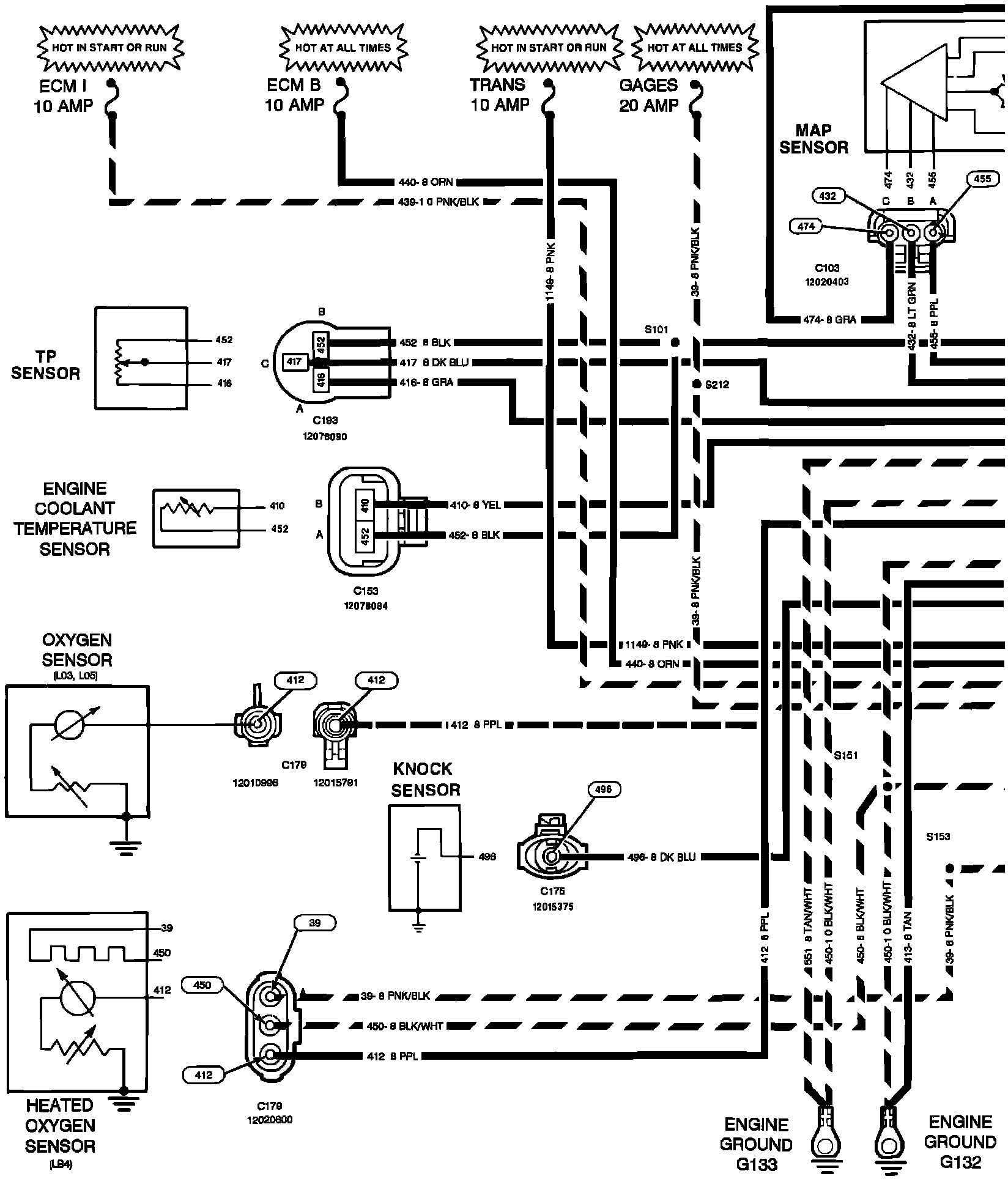

RBf#Powertrain Control Module Inputs - W/4 Speed Automatic Overdrive Transmission Gas Engines:
ȸf#Powertrain Control Module Inputs - W/4 Speed Automatic Overdrive Transmission Gas Engines:
