Home
>>
Chevrolet
>>
1993
>>
G 20 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Relays and Modules - Glow Plug System
>>
Glow Plug Control Module
>>
Locations
>>
Glow Plug Controller
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Glow Plug Controller

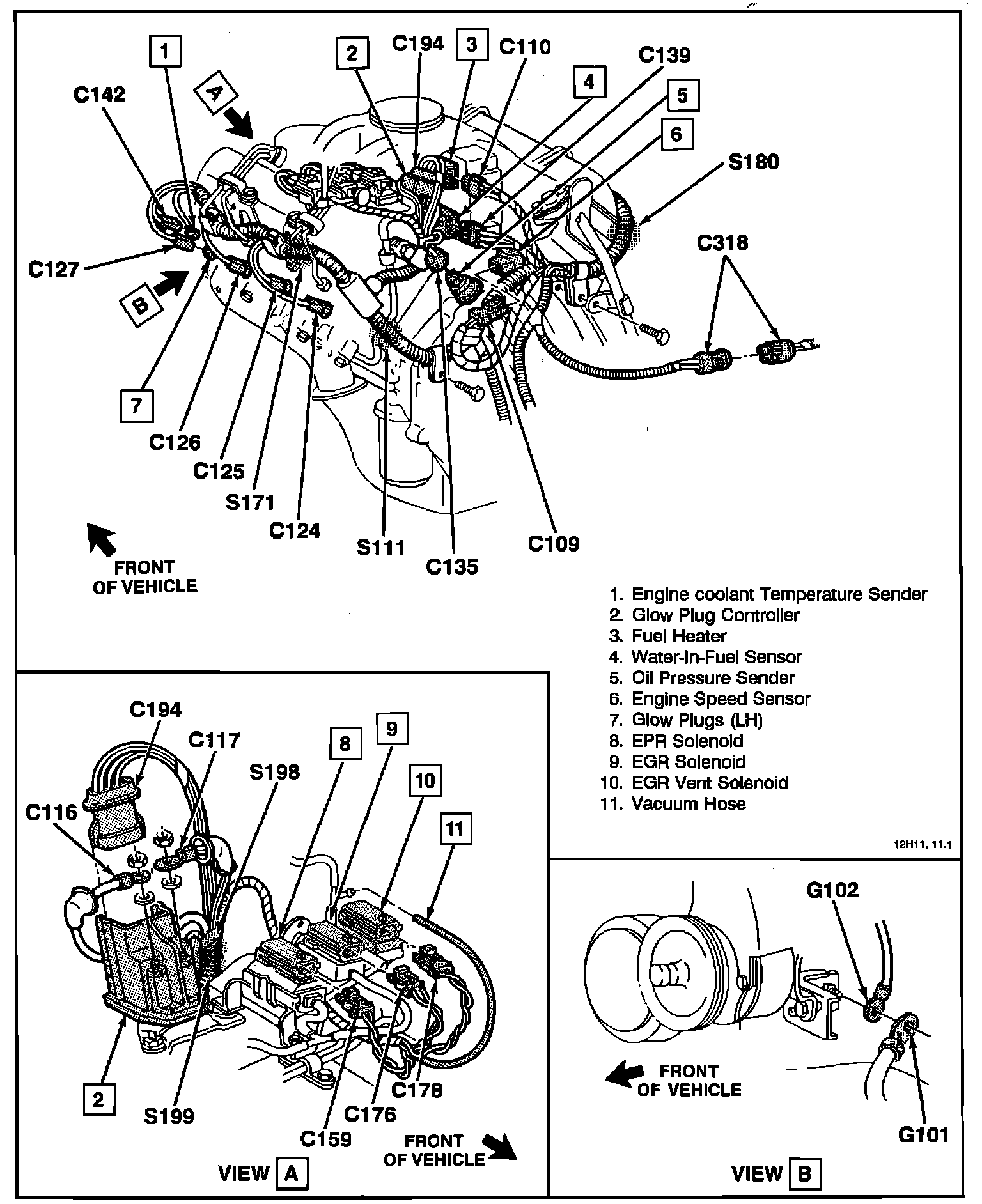

Engine Wiring, Left Hand Side Of Engine - Diesel Engine:
Engine Wiring, Left Hand Side Of Engine - Diesel Engine:
