Control Module: Diagrams

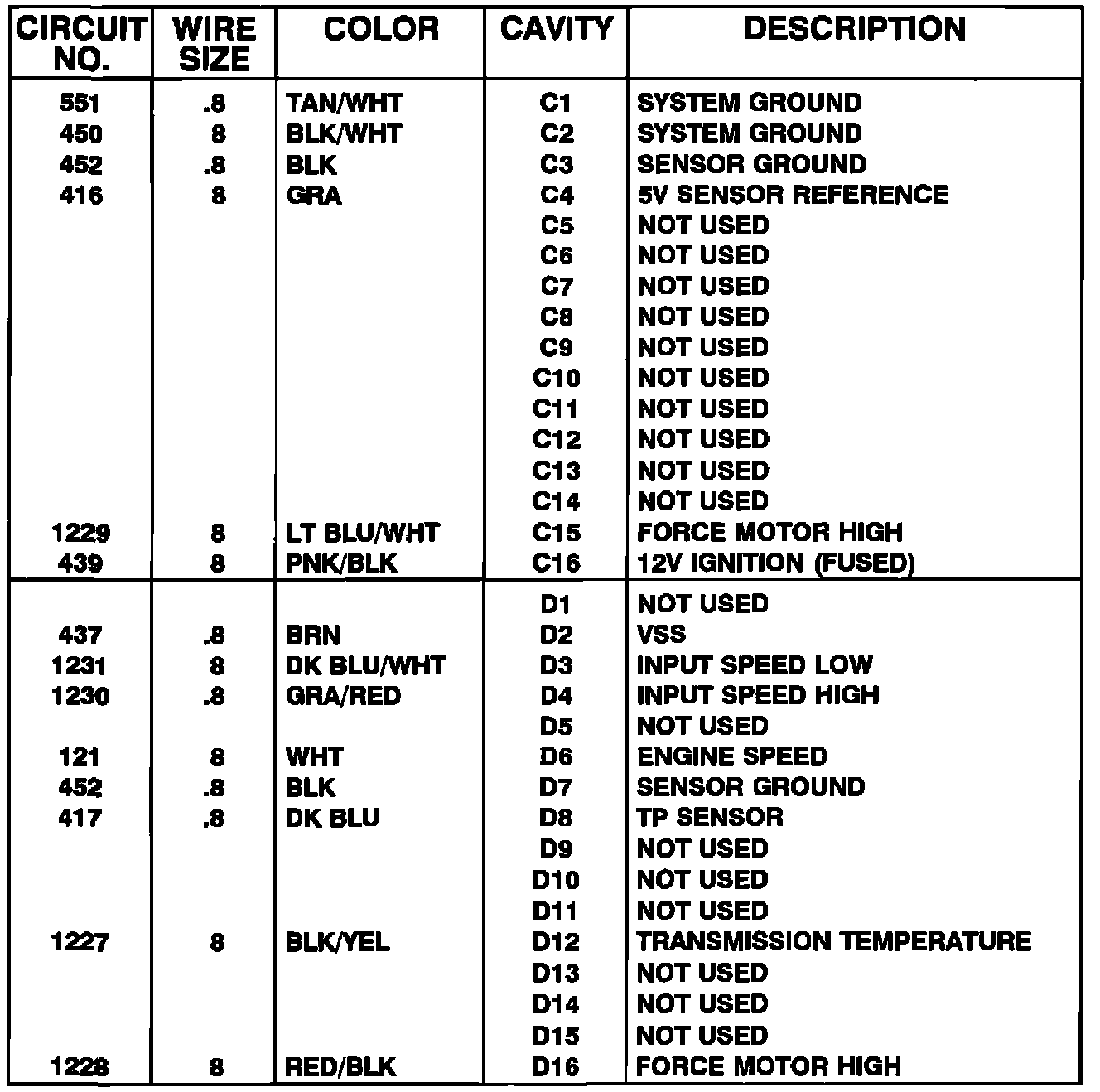

Transmission Control Module Pinouts - W/HD 4 Speed Automatic Overdrive Transmission And HD Diesel Engines:

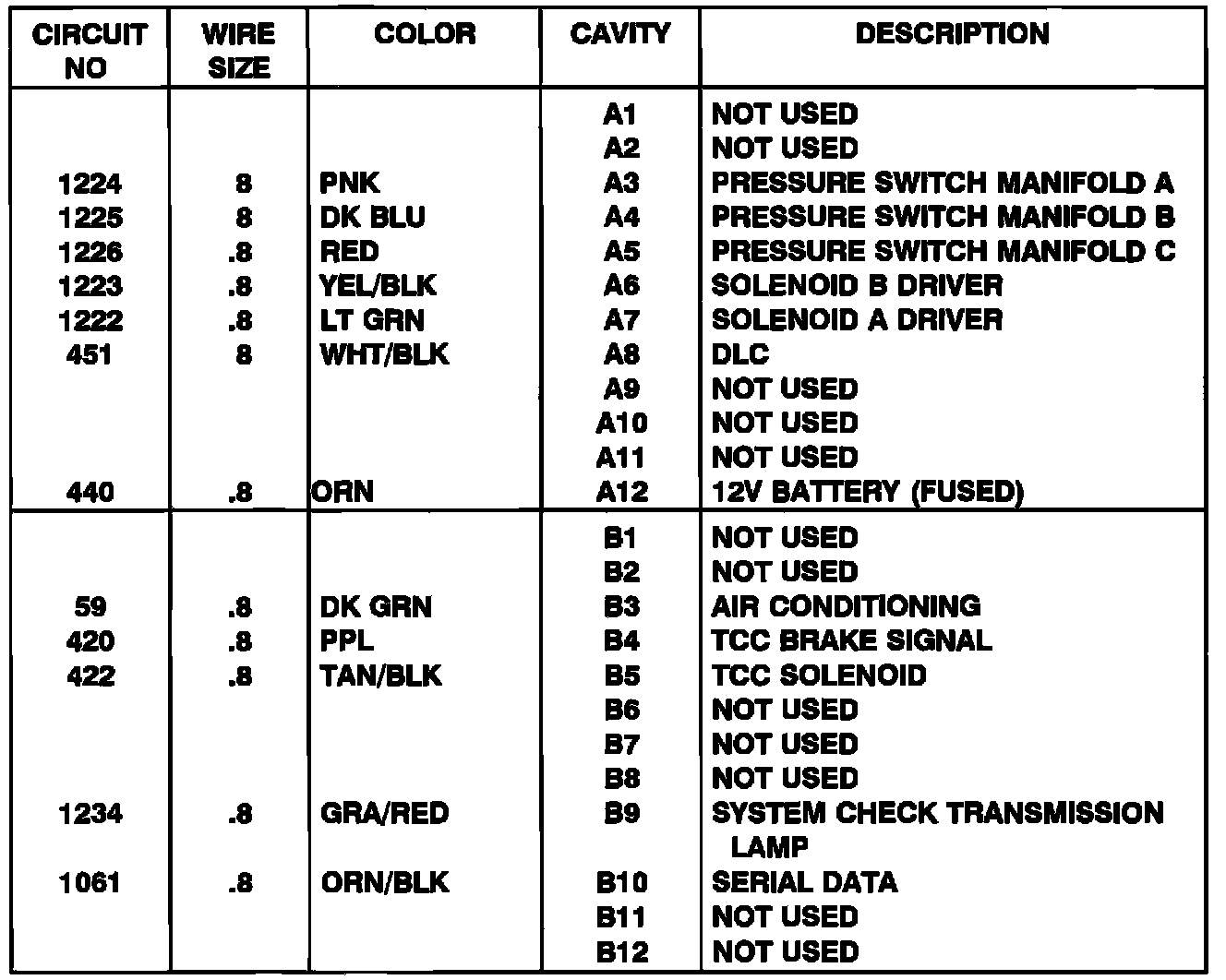

Transmission Control Module Pinouts - W/HD 4 Speed Automatic Overdrive Transmission And HD Diesel Engines:
