Spark Control (Knock Sensor)

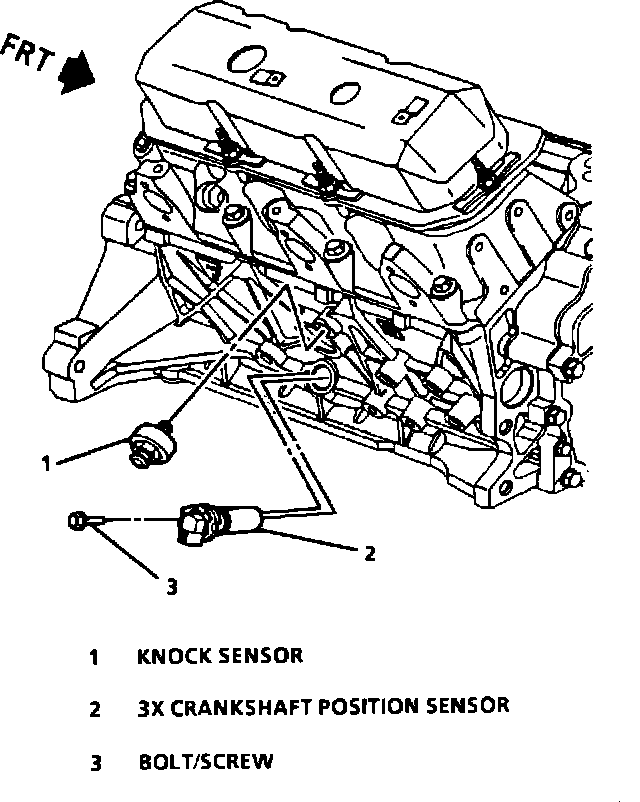

Low Resolution 3X Crankshaft Position And Knock Sensor:





The knock sensor is bolted to the right side of engine block.
