Ignition Module

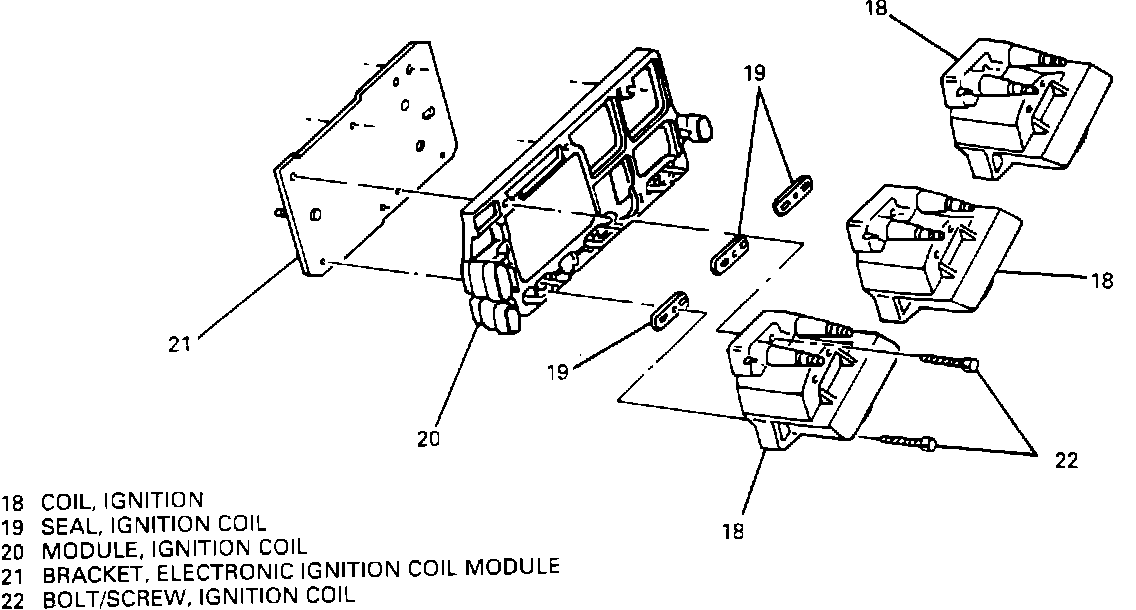

Ignition Coil Assembly:

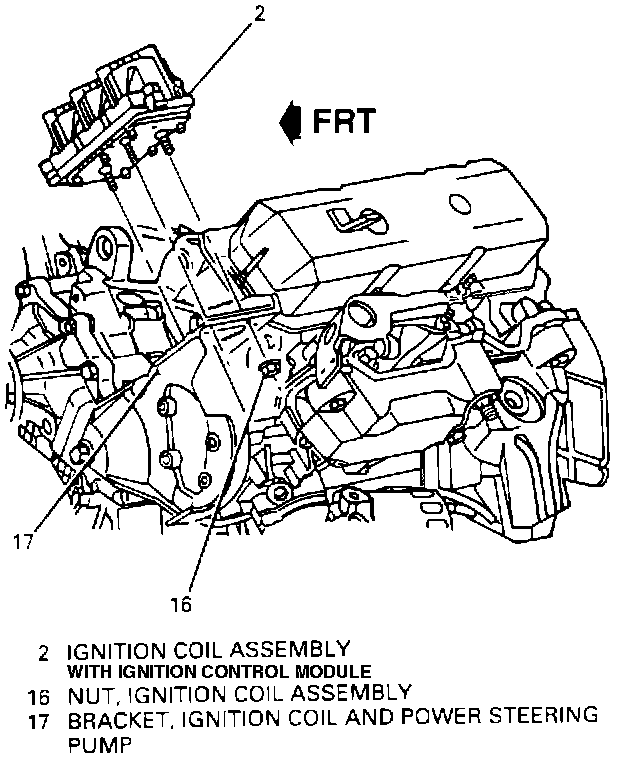

Ignition Coils And Module:






The ignition control module and coil assembly is mounted to the left cylinder head.
