Component Locations
CENTRAL CONTROL MODULE & DATA LINK COMMUNICATIONS COMPONENT LOCATIONS
| Component | Location |
|---|---|

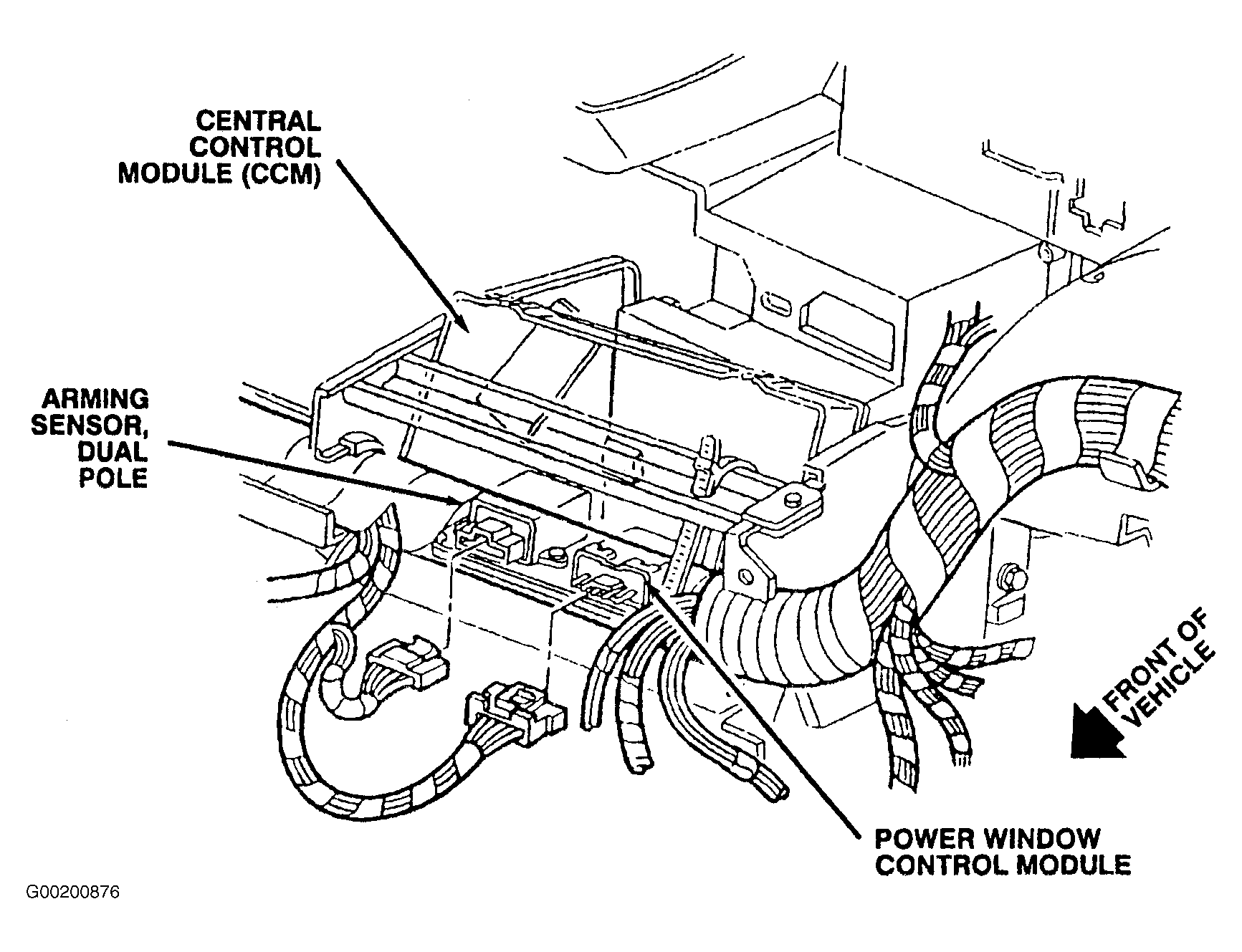

| Central Control Module (CCM) | Behind center I/P, behind radio control head. See Fig 1 . |
| Data Link Connector (DLC) | Below left side of I/P, right of steering column. See Fig 2 . |

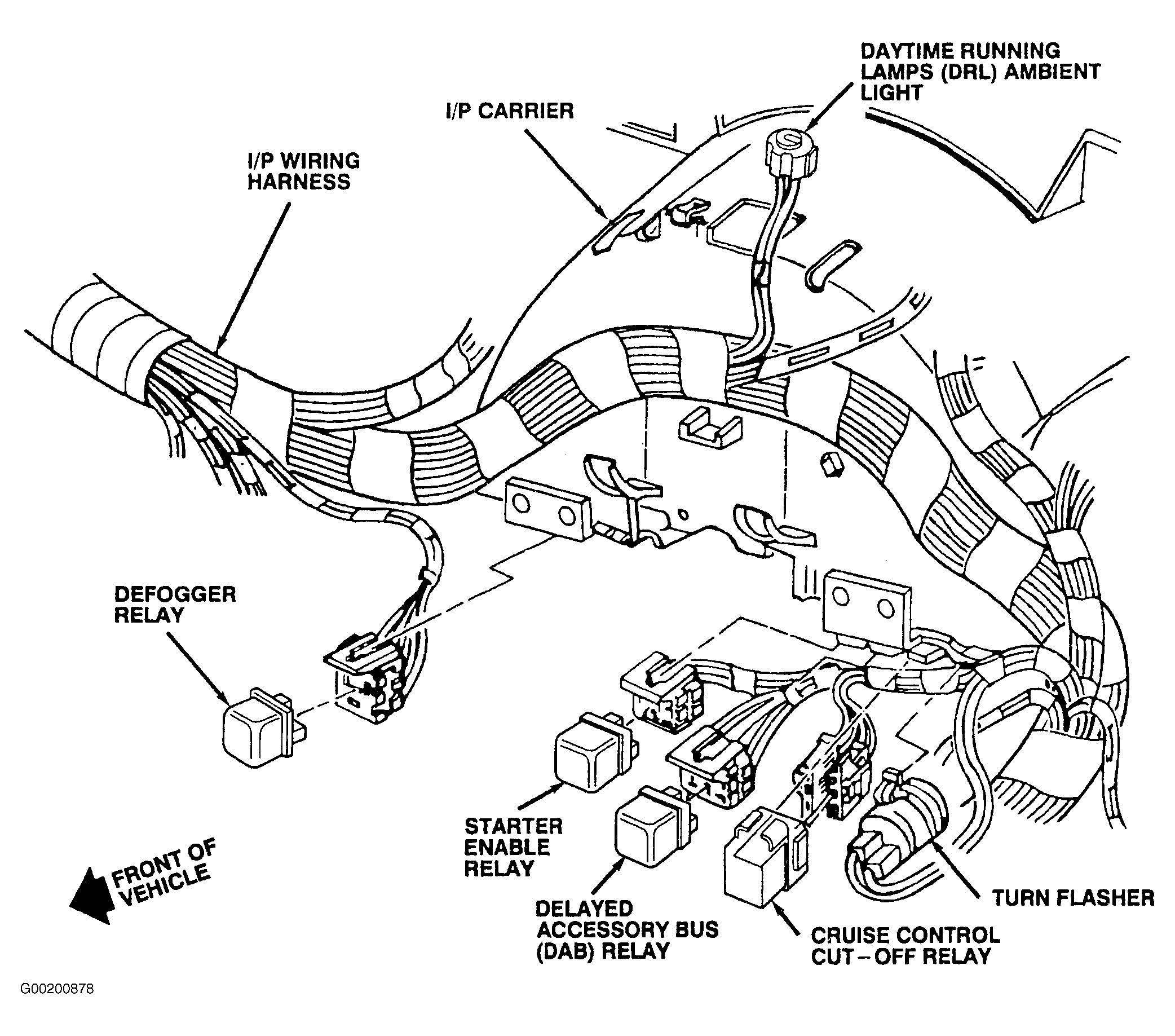

| Defogger Relay | Behind left I/P, right of steering column. See Fig 3 . |
| Delayed Accessory Bus (DAB) Relay | Behind left I/P, left of steering column. See Fig 3 . |
| Diagnostic Energy Reserve Module (DERM) | Behind right I/P, left of I/P fuse block. See Fig 4 . |

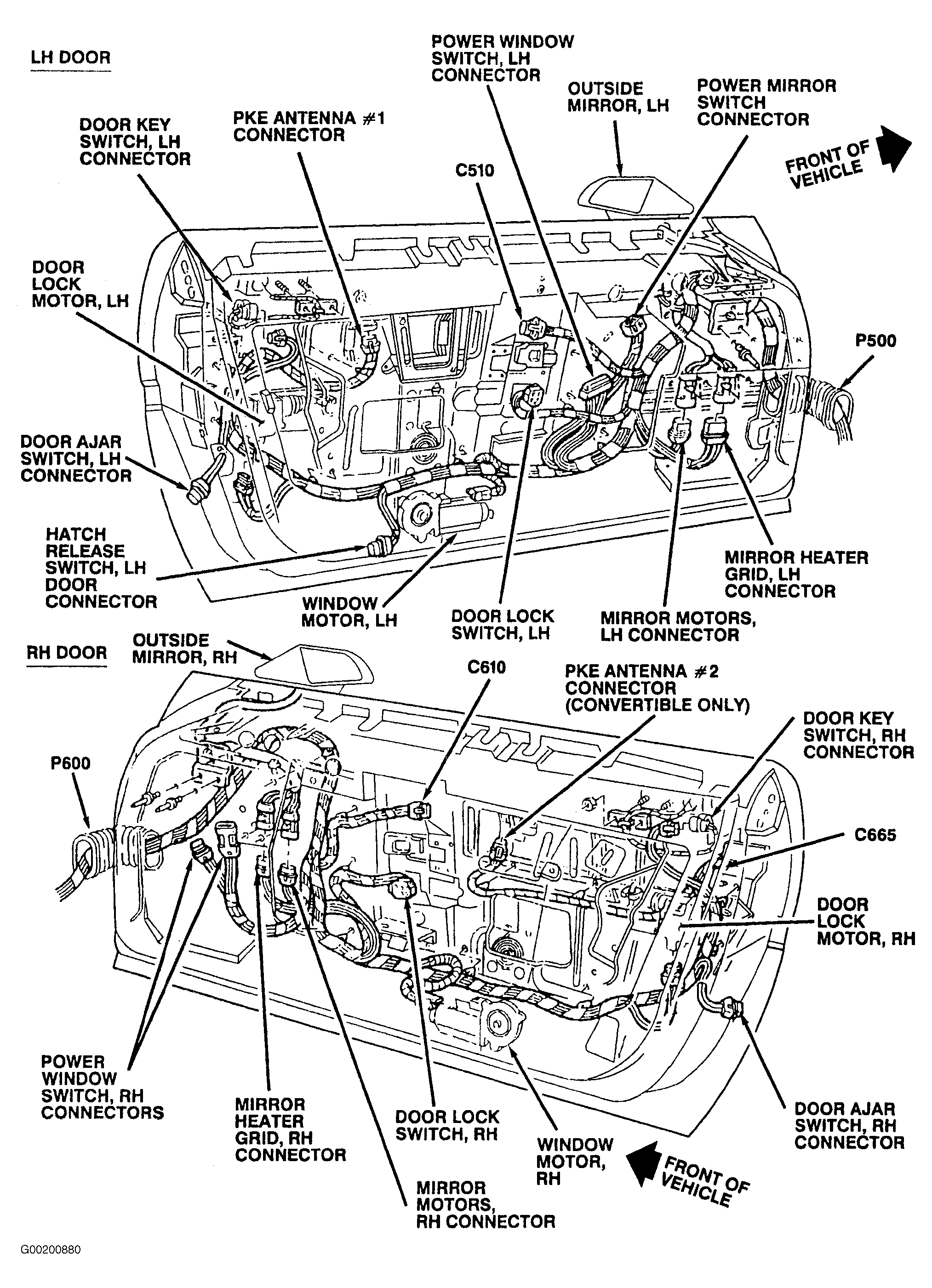

| Door Ajar Switch, Left | In rear of door near latch. See Fig 5 . |
| Door Ajar Switch, Right | In rear of door near latch. See Fig 5 . |
| Door Key Switch, Left | In rear of door attachment to lock cylinder housing. See Fig 5 . |
| Door Key Switch, Right | In rear of door attached to lock cylinder housing. See Fig 5 . |

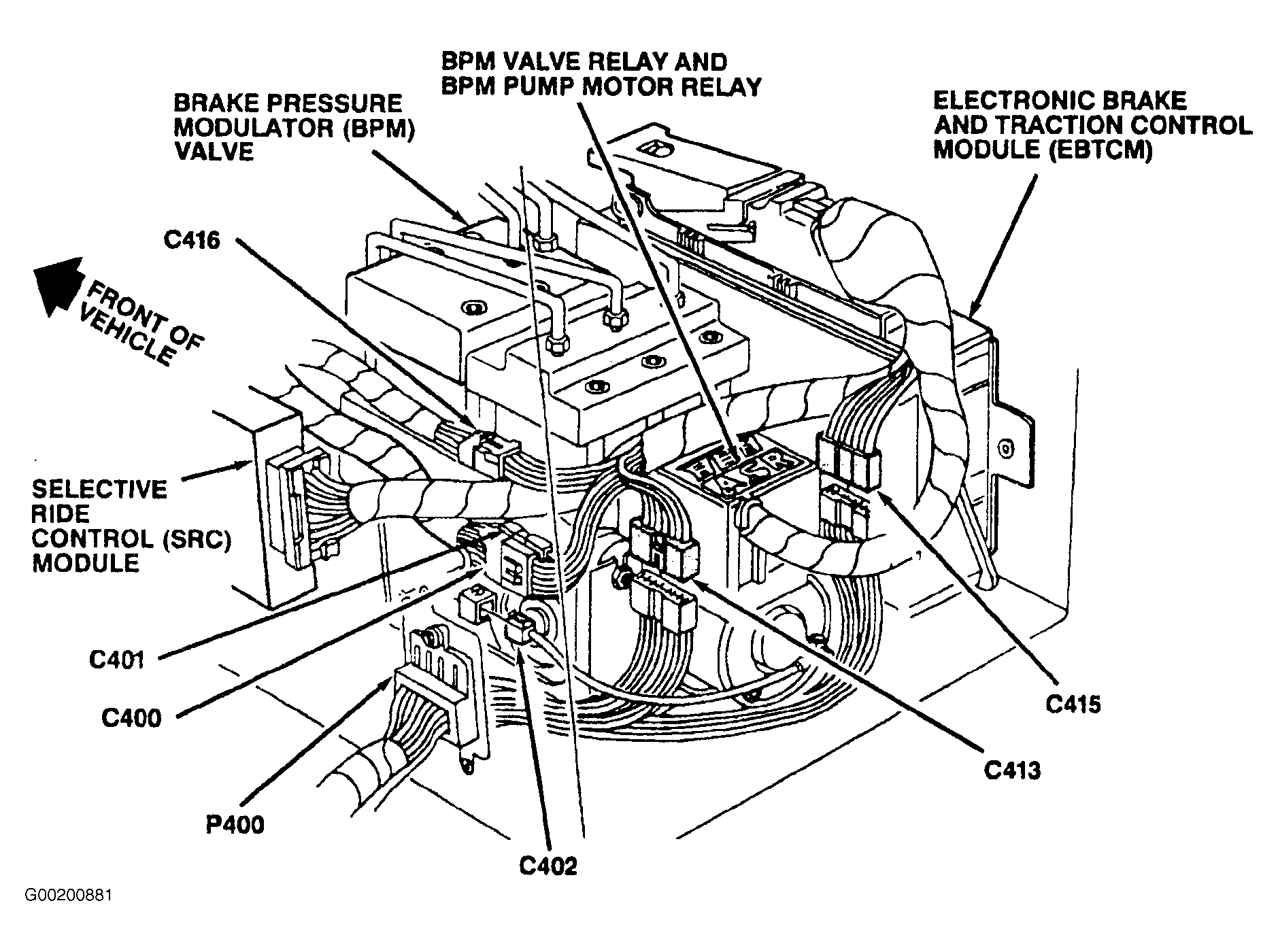

| Electronic Brake & Traction Control Module (EBTCM) | Left cargo compartment in storage compartment. See Fig 6 . |

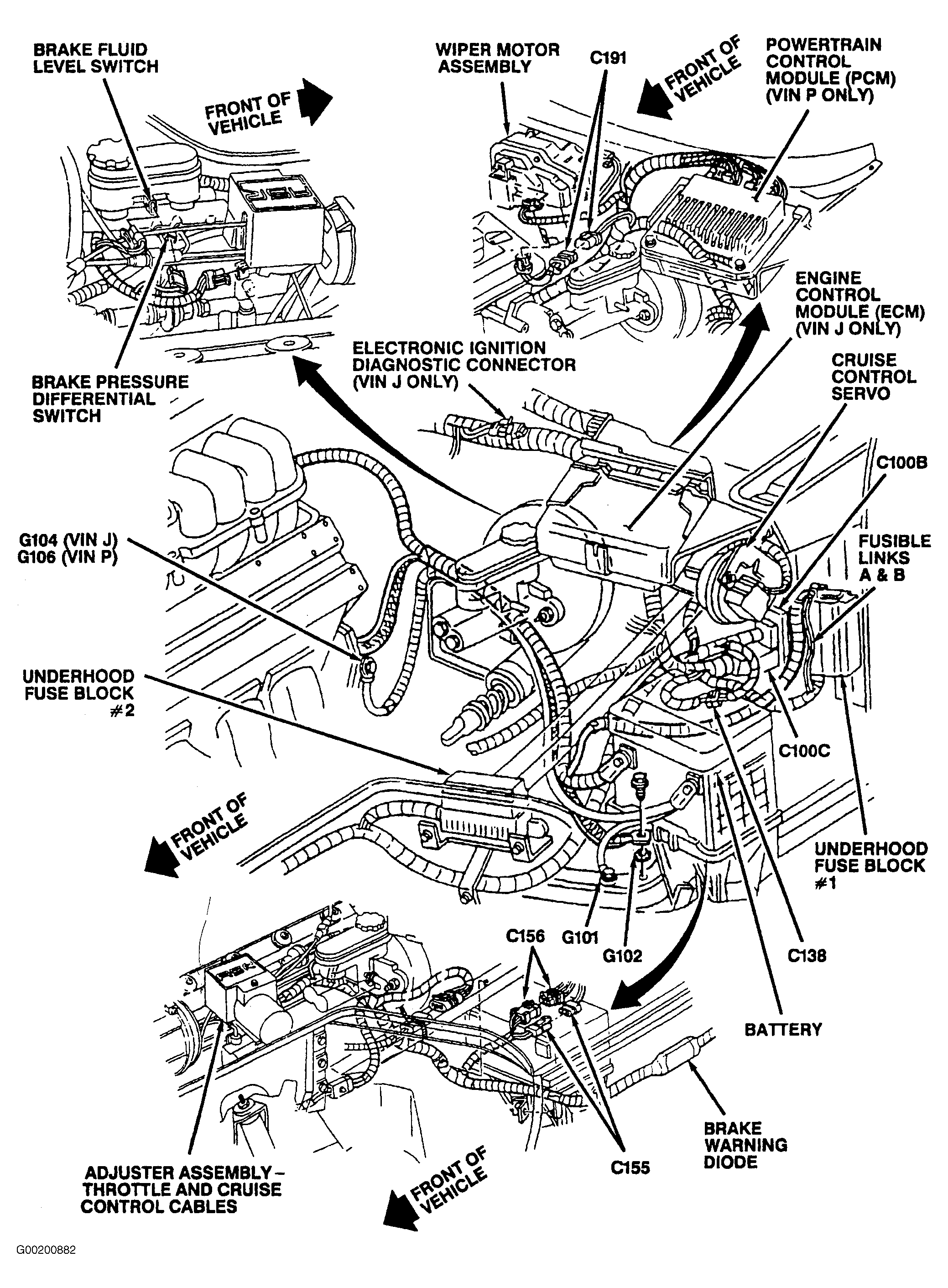

| Engine Control Module (ECM) (VIN J) | Left rear engine compartment above battery. See Fig 7 . |
| Fuel Gage Sender | Rear of vehicle in fuel tank. part of fuel tank unit. |
| Fuel Tank Unit | Rear of vehicle attached to top of fuel tank. |

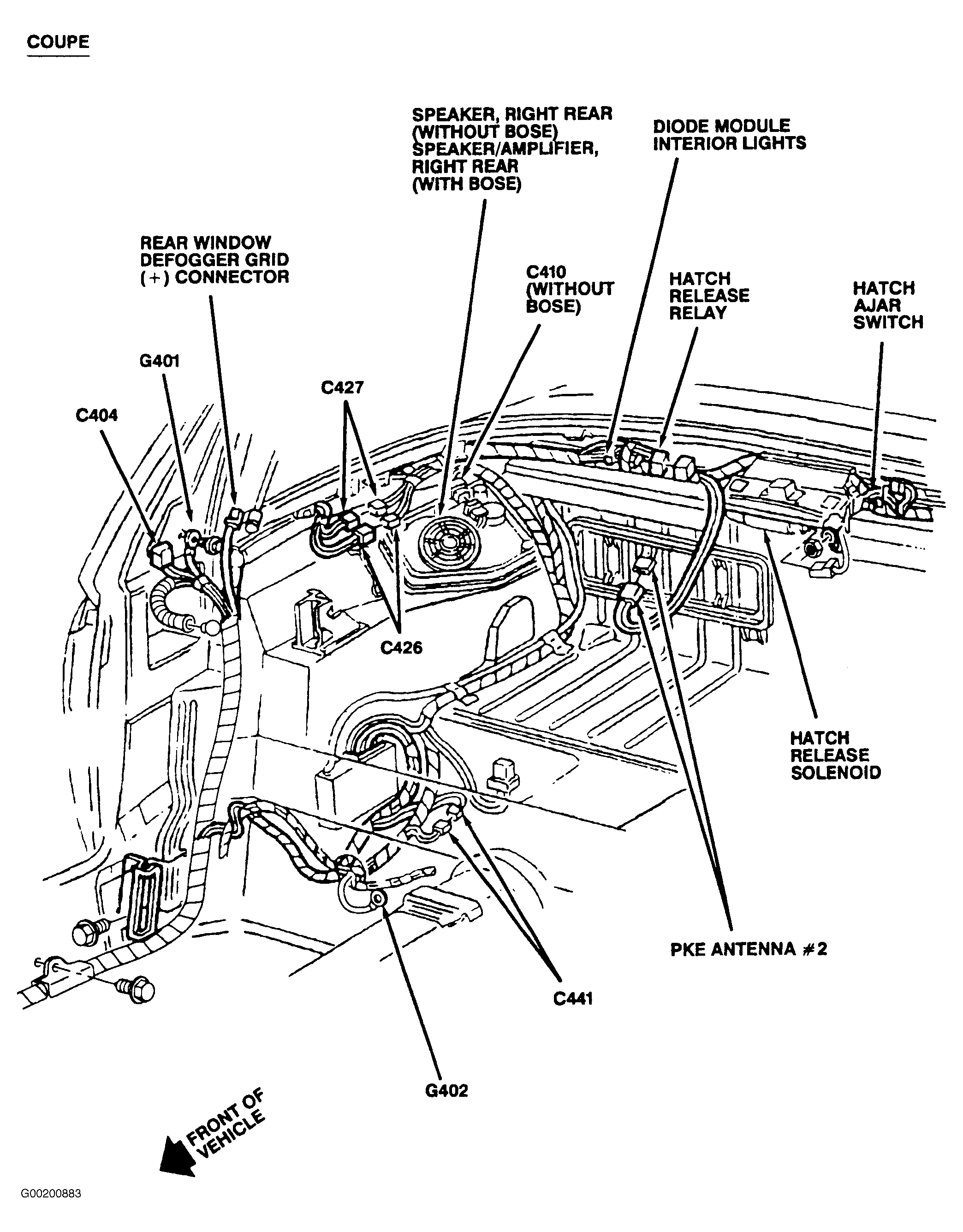

| Hatch Ajar Switch (Coupe) | Rear of cargo compartment, near latch assembly. See Fig 8 . |

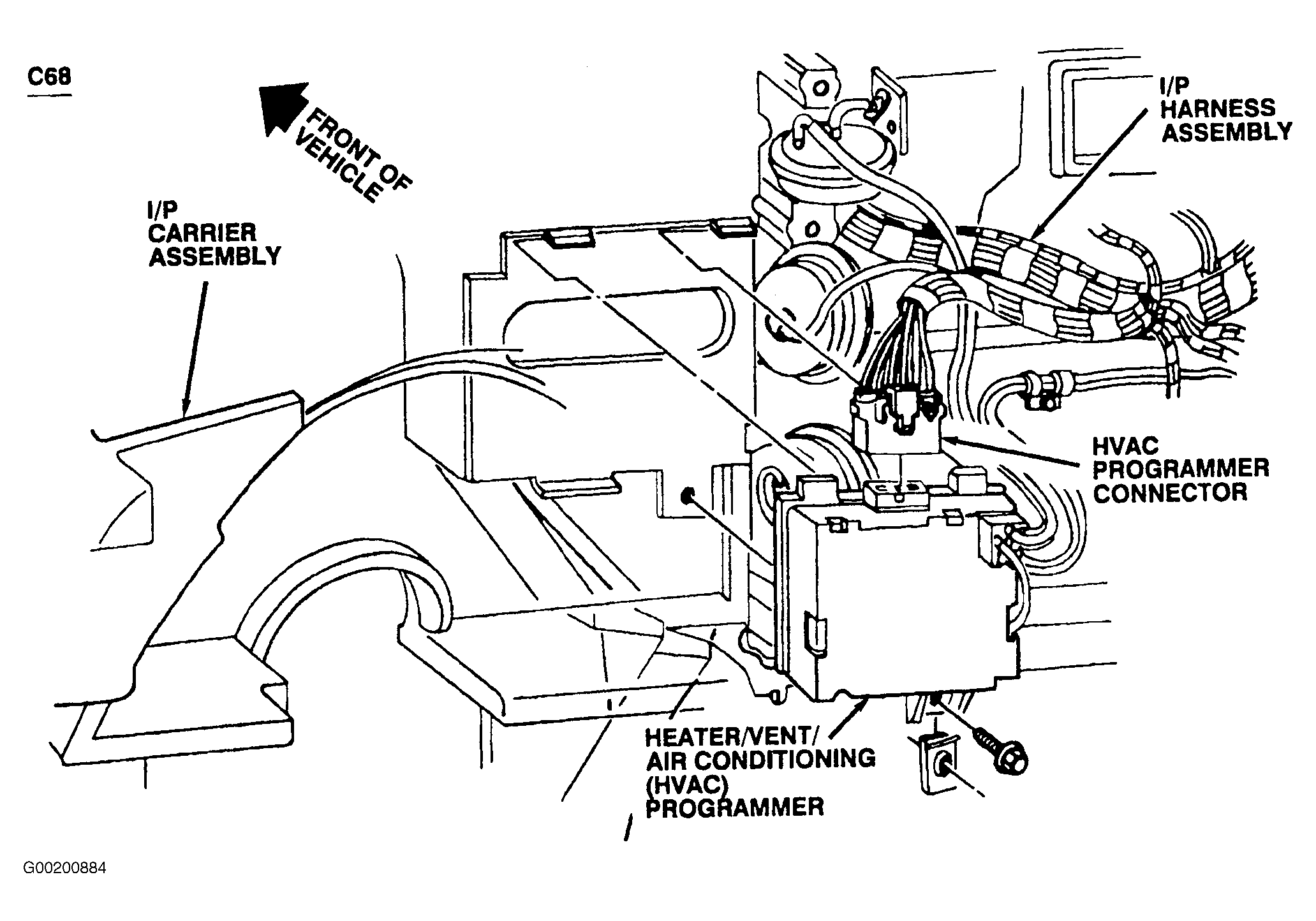

| Heater/Vent/Air Conditioning (HVAC) Programmer (With C68 Only) | Below left I/P, right of steering column on bulkhead. See Fig 9 . |
| Horn Relay | Bottom right side of I/P, accessible with door open. See Fig 4 . |
| I/P Fuse Block | Far side of I/P, accessible with door open. See Fig 4 . |
| Ignition Lock Cylinder | Right side of steering column. |
| Key Resistor Pellet | In ignition key. |

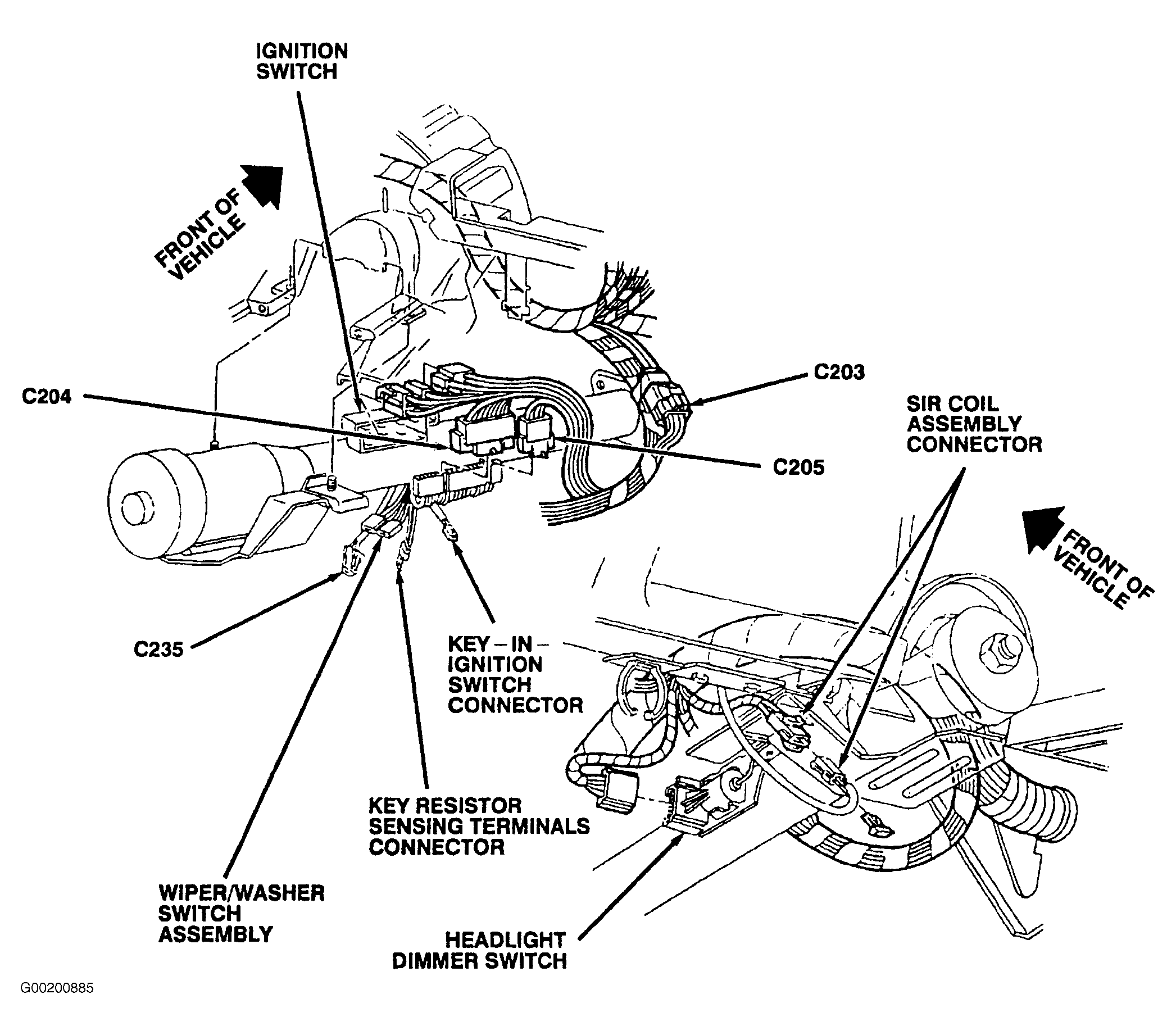

| Key Resistor Sensing Terminals | Right side of steering column, in ignition lock cylinder. See Fig 10 . |
| Key-In-Ignition Switch | Right side of steering column, on ignition lock cylinder. See Fig 10 . |

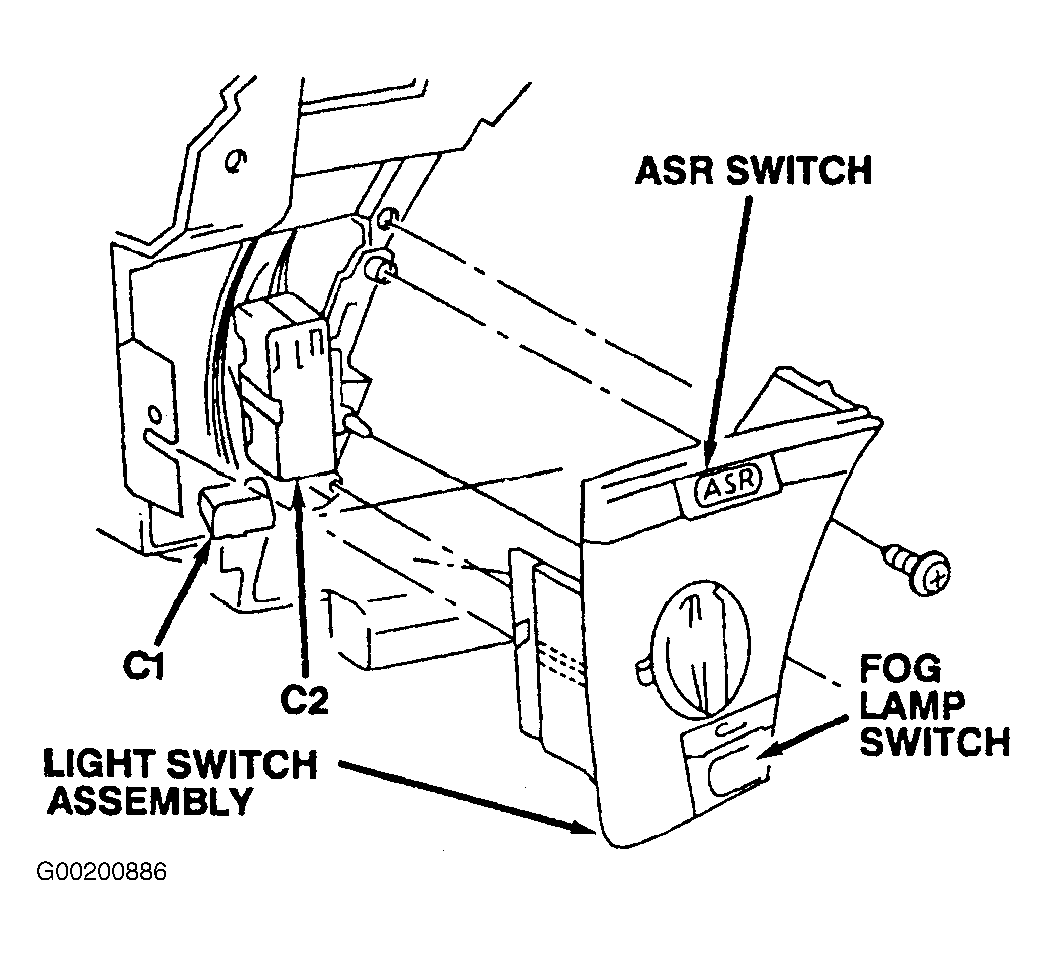

| Light Switch | Left side of I/P, left of instrument cluster. See Fig 11 . |

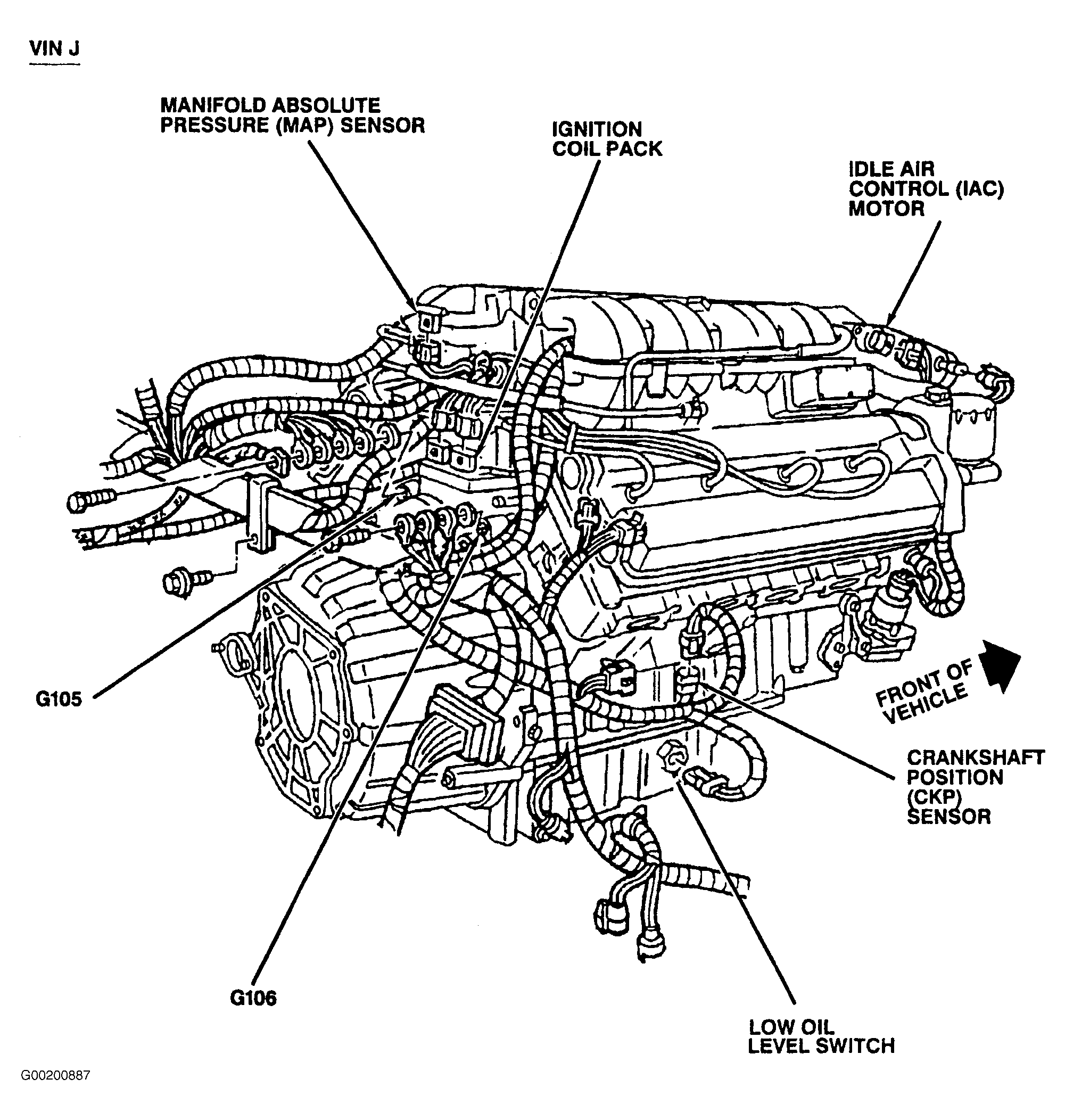

| Low Oil Level Switch (VIN J) | Lower right side of engine in oil pan. See Fig 12 . |

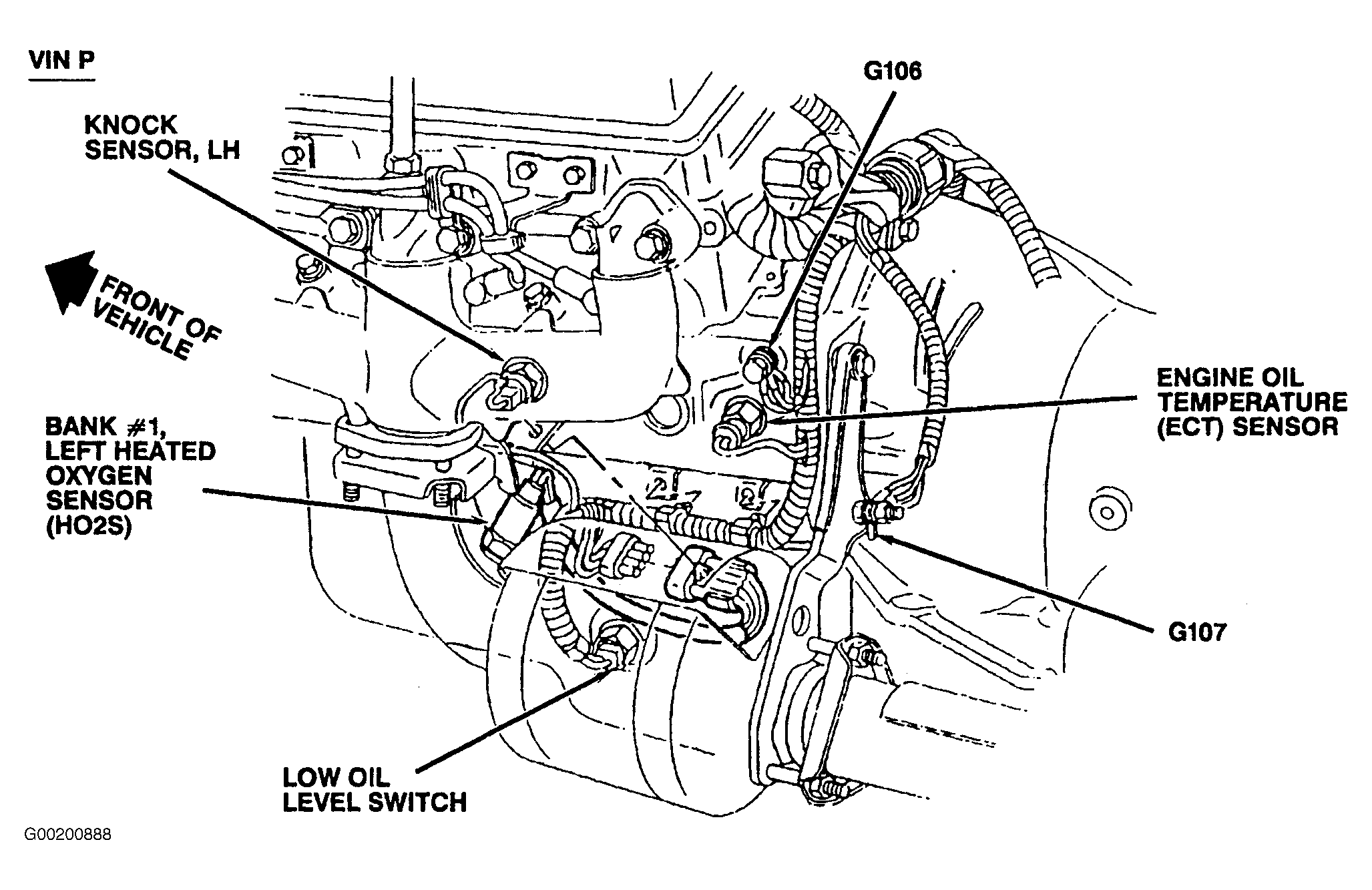

| Low Oil Level Switch (VIN P) | Lower left rear of engine, forward of oil filter in oil pan. See Fig 13 . |

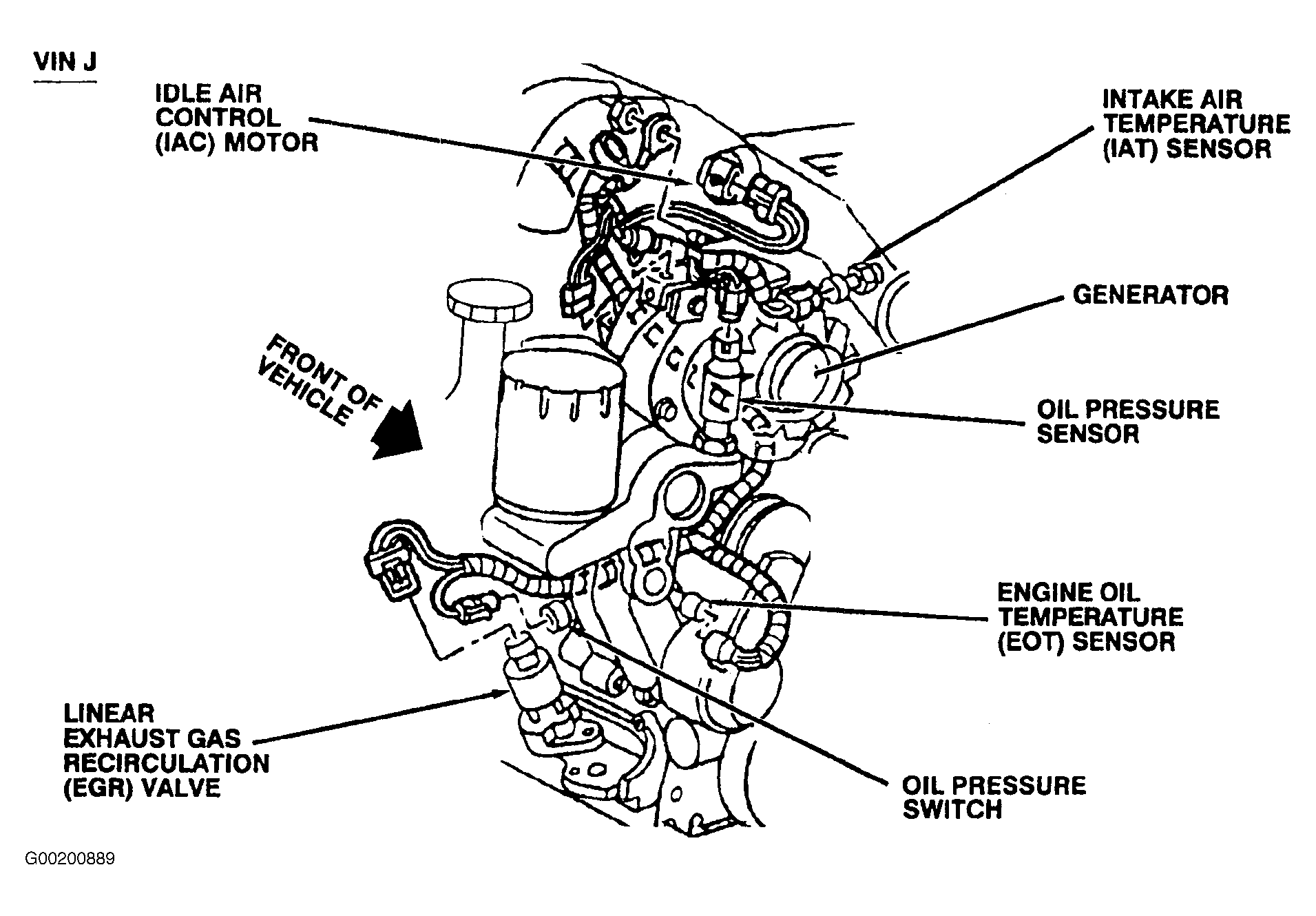

| Oil Pressure Switch (VIN J) | Lower right front of engine below oil filter. See Fig 14 . |

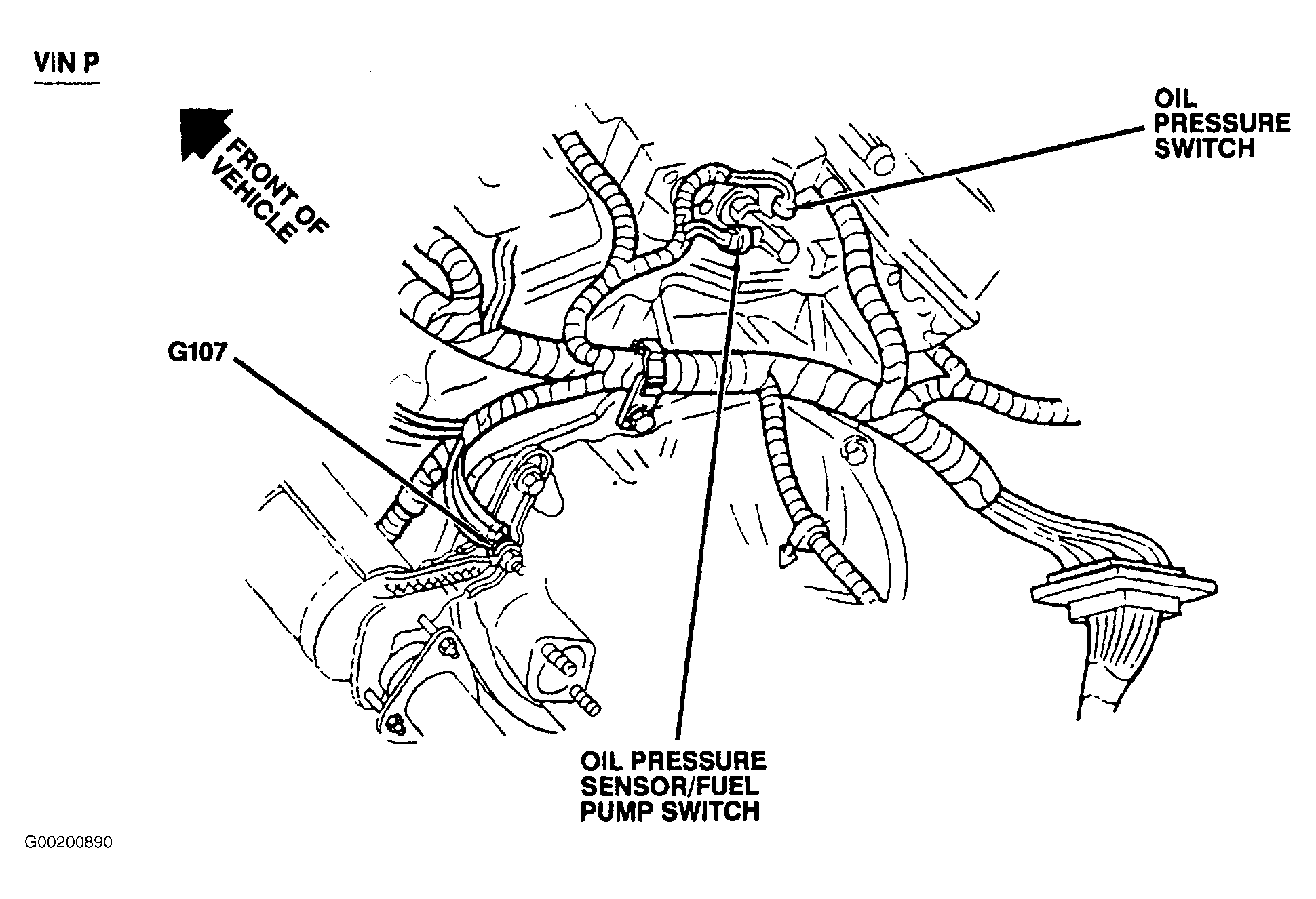

| Oil Pressure Switch (VIN P) | Top rear of engine. See Fig 15 . |

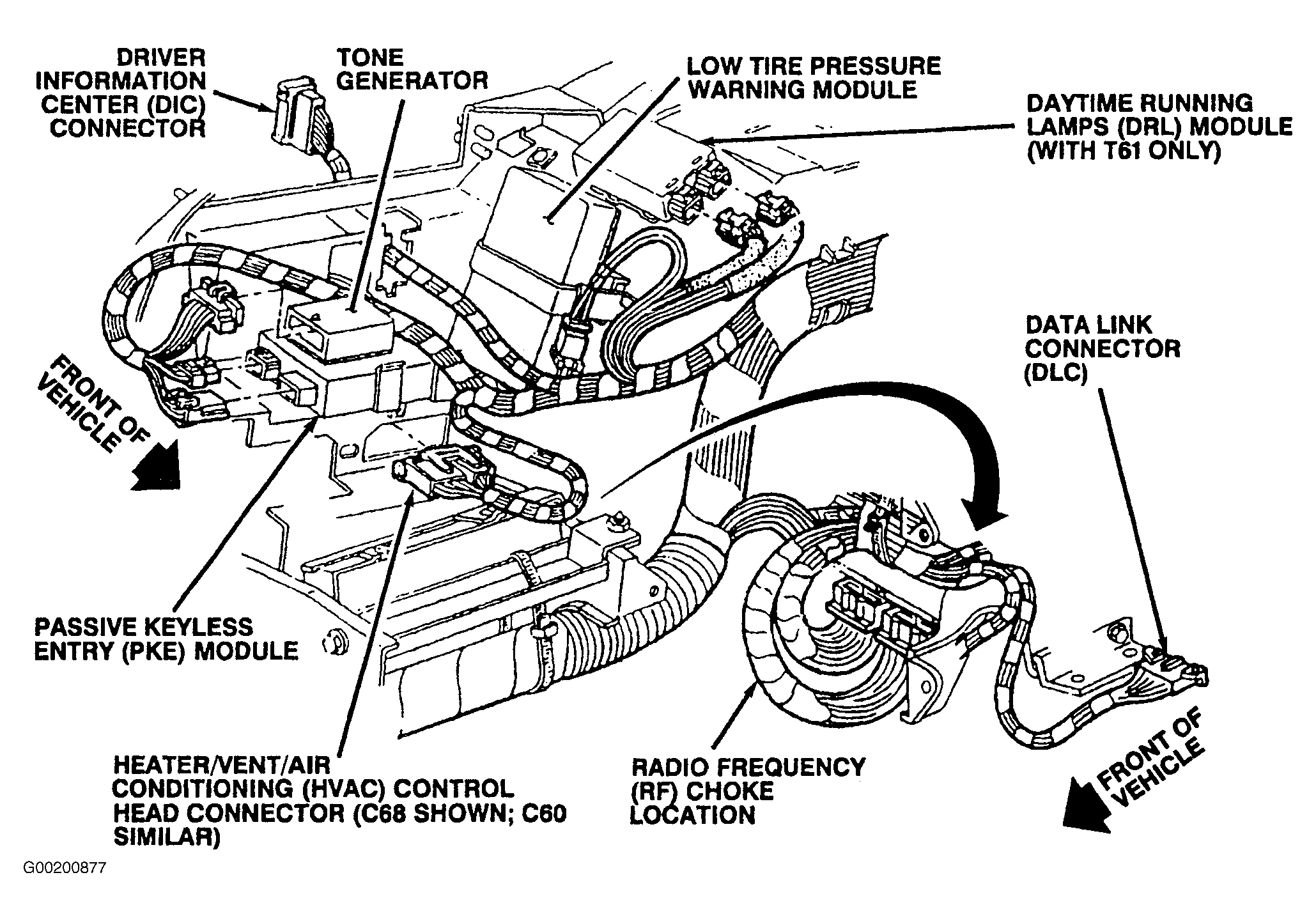

| Passive Keyless Entry (PKE) Module | Behind center I/P, behind driver information center (DIC). See Fig 2 . |
| Powertrain Control Module (PCM) (VIN P) | Left rear engine compartment above battery. See Fig 7 . |
| Radio Frequency (RF) Choke | Behind center I/P, taped in I/P harness, in central control module (CCM) conn C2 branch. See Fig 2 . |

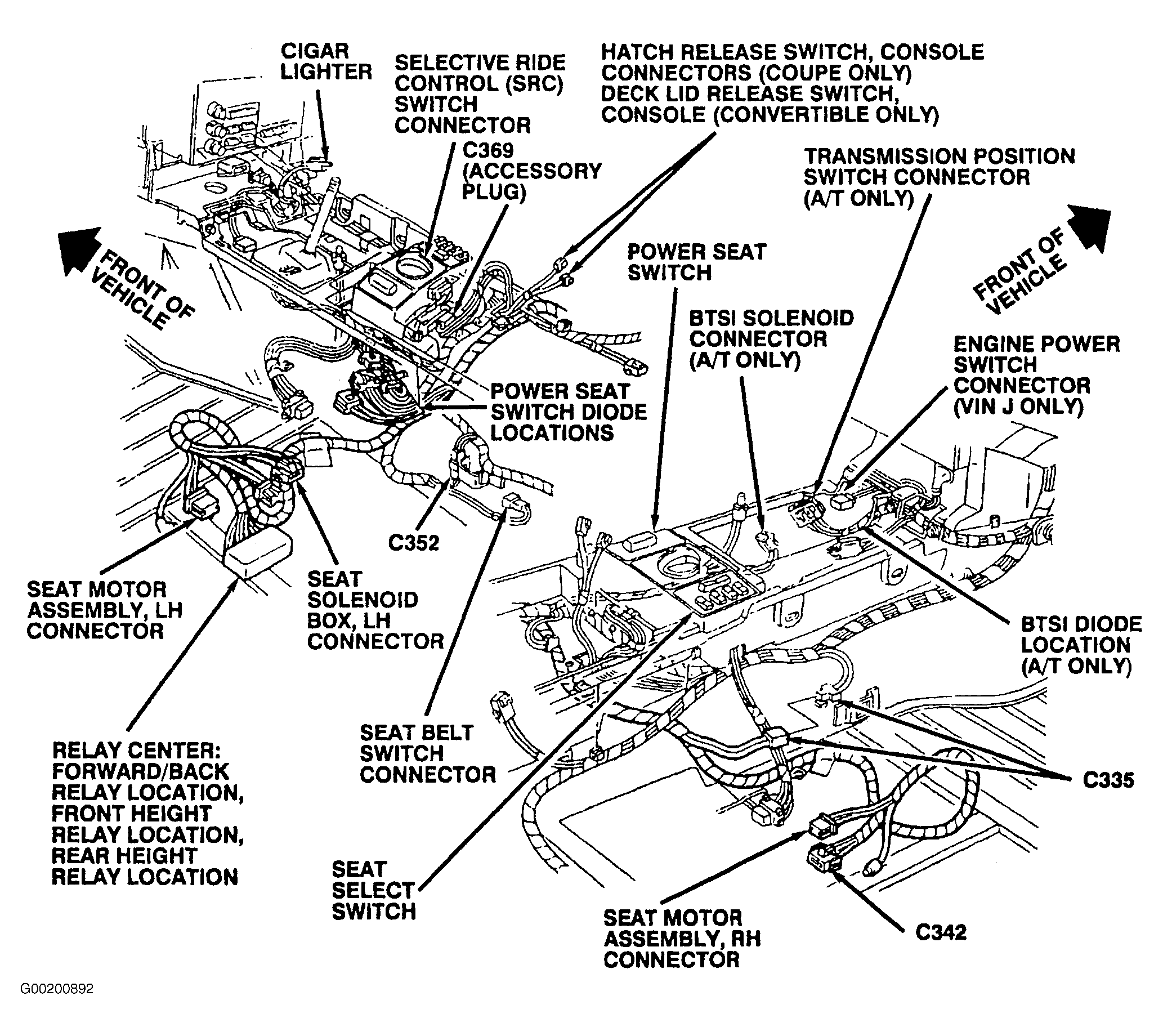

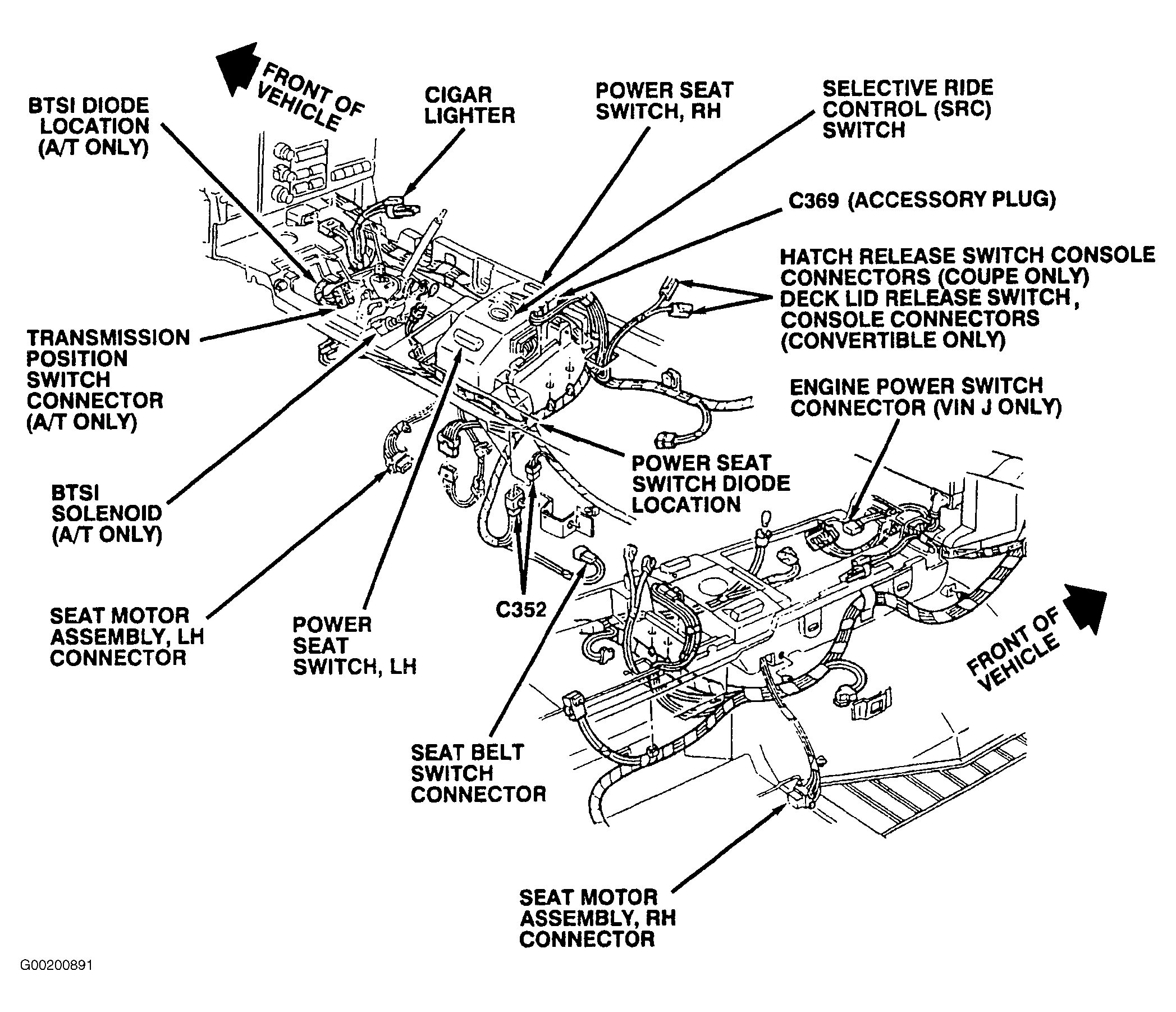

| Seat Belt Switch | Left passenger compartment, part of driver seat belt buckle assembly. See Fig 16 and Fig 17 . |
| Starter Enable Relay | Behind left I/P, left of steering column. See Fig 3 . |
| Tone Generator | Behind Center I/P, behind driver information center. See Fig 2 . |
| C204 (11 Cavities) | I/P harness to turn/hazard switch assembly, below left I/P on steering column near ignition switch conns. See Fig 10 . |
| C209 (23 Cavities) | I/P harness to front body harness, behind right I/P near I/P fuse block. See Fig 4 . |
| C210 (10 Cavities) | I/P harness to front body harness, behind right I/P near I/P fuse block. See Fig 4 . |
| C237 (23 Cavities) | I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 . |
| C238 (10 Cavities) | I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 . |
| C239 (10 Cavities) | I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 . |
| C400 (10 Cavities) | Front body harness to ABS harness, left cargo compartment in storage compartment. See Fig 6 . |

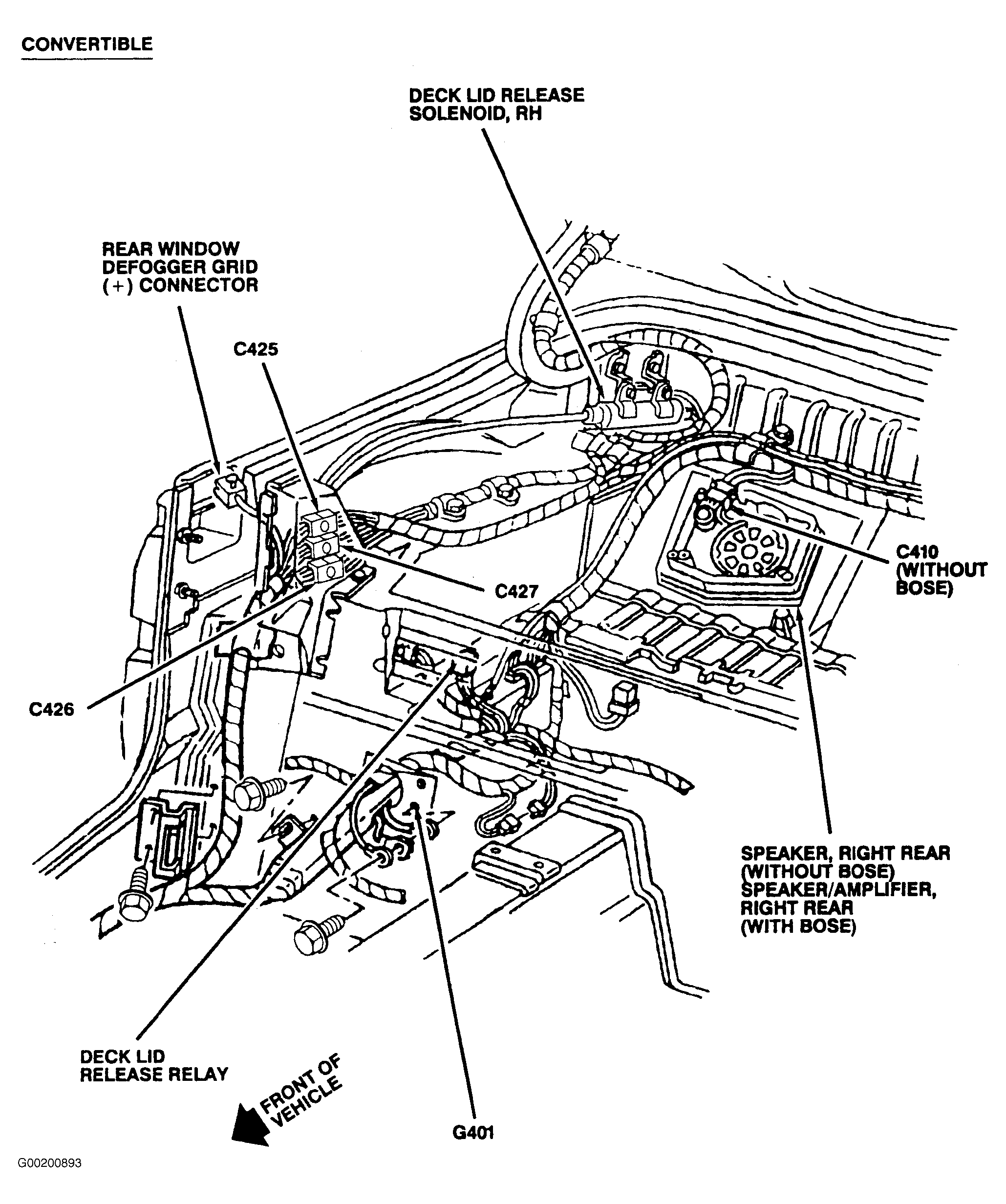

| C426 (10 Cavities) (Convertible) | Front body to rear body harness, right cargo compartment above wheelhouse. See Fig 18 . |
| C426 (10 Cavities) (Coupe) | Front body harness to rear body harness, right cargo compartment above wheelhouse. See Fig 8 . |

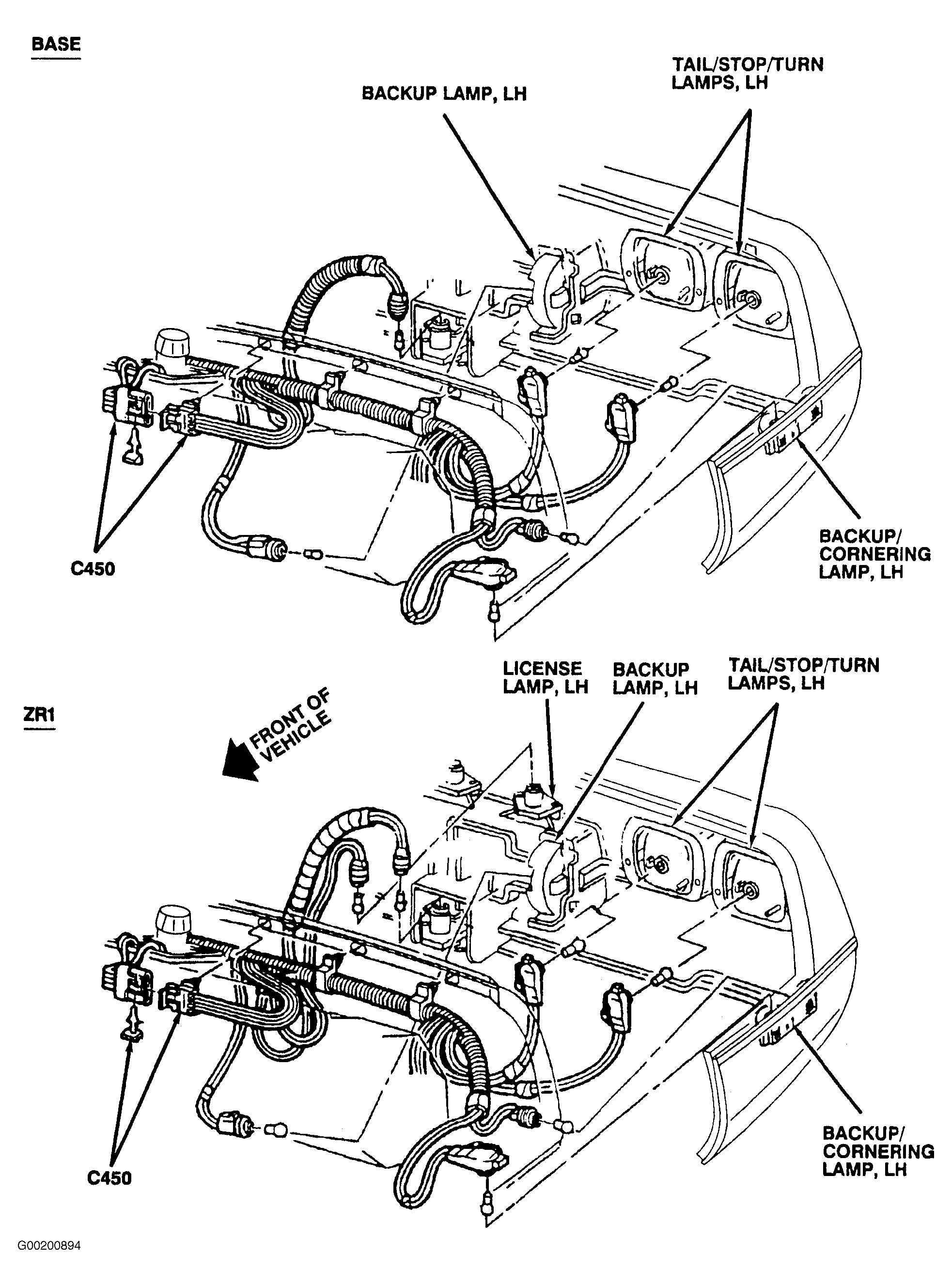

| C450 (4 Cavities) | Rear body farness to fuel tank unit jumper harness, rear of cargo compartment rear of fuel tank. See Fig 19 . |
| G105 (VIN J) | Left rear of engine on bell housing. See Fig 12 . |
| G106 (VIN J) | Right rear of engine on bell housing. See Fig 12 . |
| G106 (VIN P) | Left rear of engine near oil filter. See Fig 7 . |

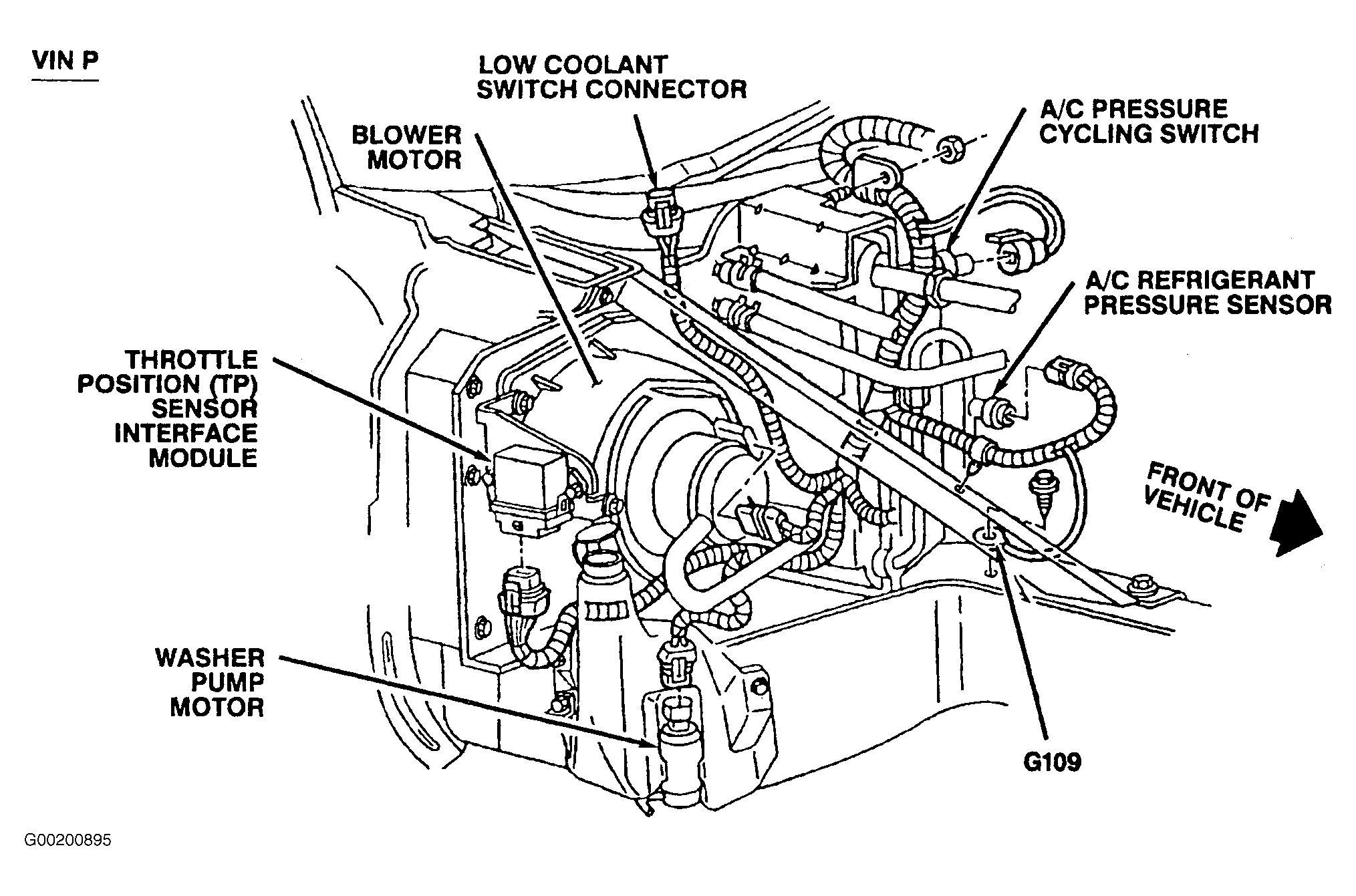

| G109 (VIN P) | Right rear of engine compartment, near wheelhouse on frame rail. See Fig 20 . |
| G401 (Convertible) | Right cargo compartment behind passenger seat. See Fig 18 . |
| G401 (Coupe) | Right cargo compartment on halo near top of seat. See Fig 8 . |
| S130 (VIN P) | Engine harness, right rear engine compartment in front of blower motor, about 8 cm from blower motor conn breakout. |
| S148 (VIN J) | Engine harness, rear of engine about 4 cm right of G105 breakout. |
| S201 | I/P harness, behind left I/P about 4 cm. left of C100A. |
| S212 | I/P harness, behind left I/P about 5.5 cm. left of driver information center (DIC) conn breakout. |
| S213 | I/P harness, behind left I/P about 9.5 cm left of driver information center (DIC) conn breakout. |
| S214 | I/P harness, behind center I/P about 19.5 cm from cigar lighter conn breakout. |
| S217 | I/P harness, behind center I/P about 7.5 cm right of data link connector (DLC) breakout. |
| S220 | I/P harness, behind center I/P in central control module (CCM) conn C1 branch, about 2 cm. from base of conn breakout. |
| S221 | I/P harness, behind center I/P about 11.5 cm right of data link connector (DLC) breakout. |

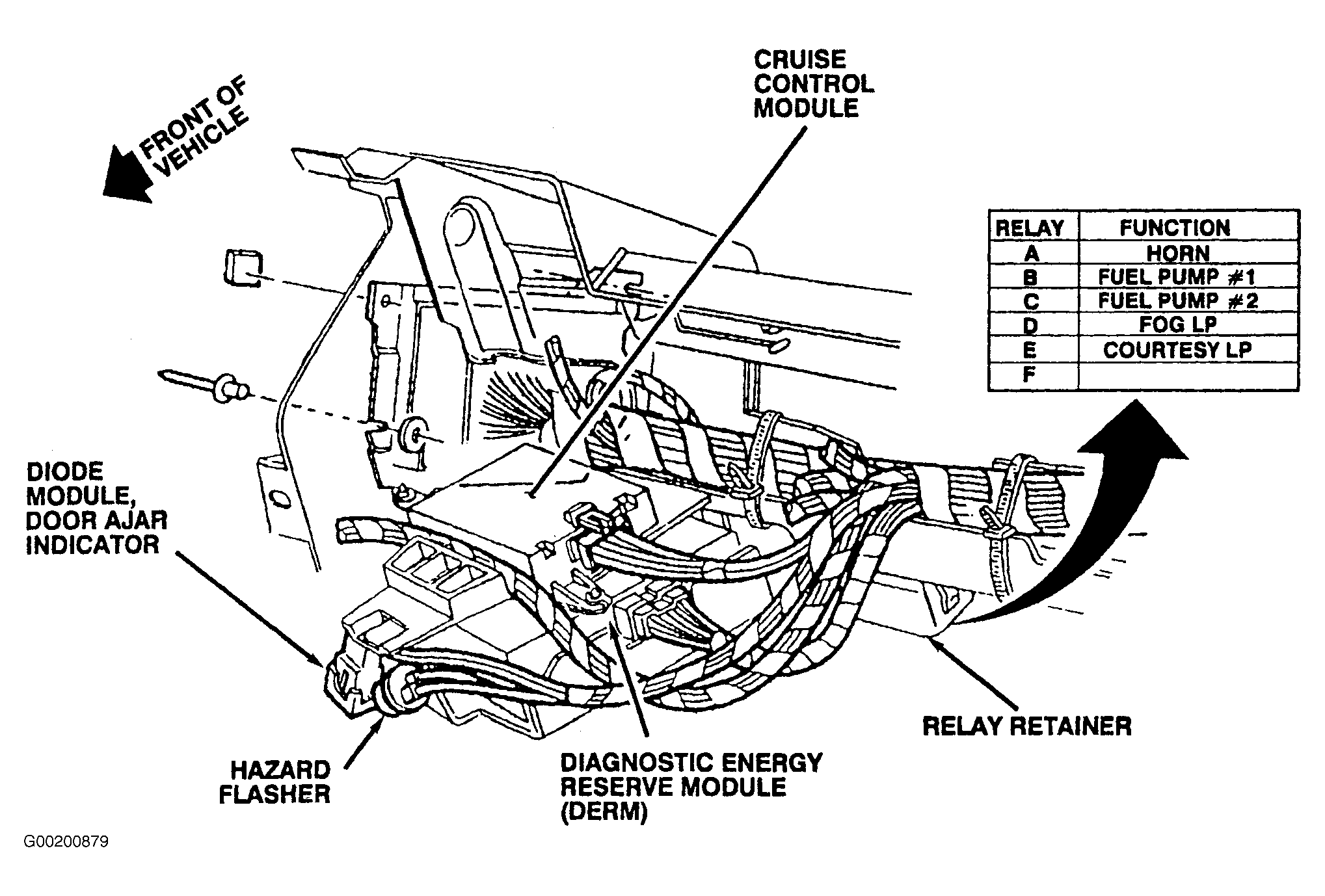

Fig 4: Locating Diagnostic Energy Reserve Module (DERM), Horn Relay, I/P Fuse Block, C209, C210, C237, C238, C239, C400
NOTE:
Engine VIN is eighth character of vehicle VIN.
NOTE:
Engine VIN is eighth character of vehicle VIN.
NOTE:
Engine VIN is eighth character of vehicle VIN.
NOTE:
Engine VIN is eighth character of vehicle VIN.
