Connector Identification

Fig 1: Identifying DLC Terminals
G94D31743Courtesy of GENERAL MOTORS CORP.

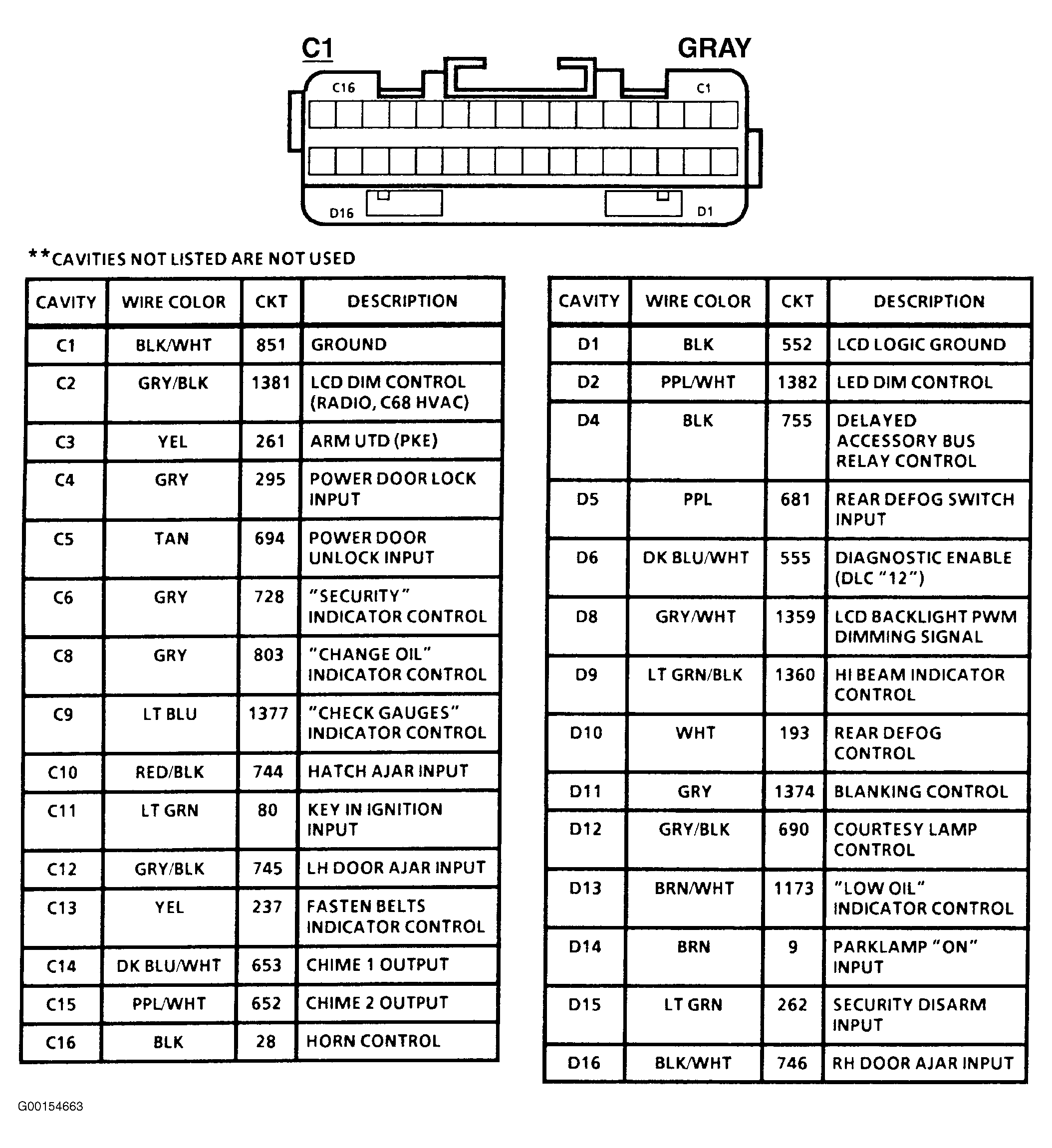

Fig 2: Identifying CCM C1 (Gray) Connector Terminals
G00154663Courtesy of GENERAL MOTORS CORP.

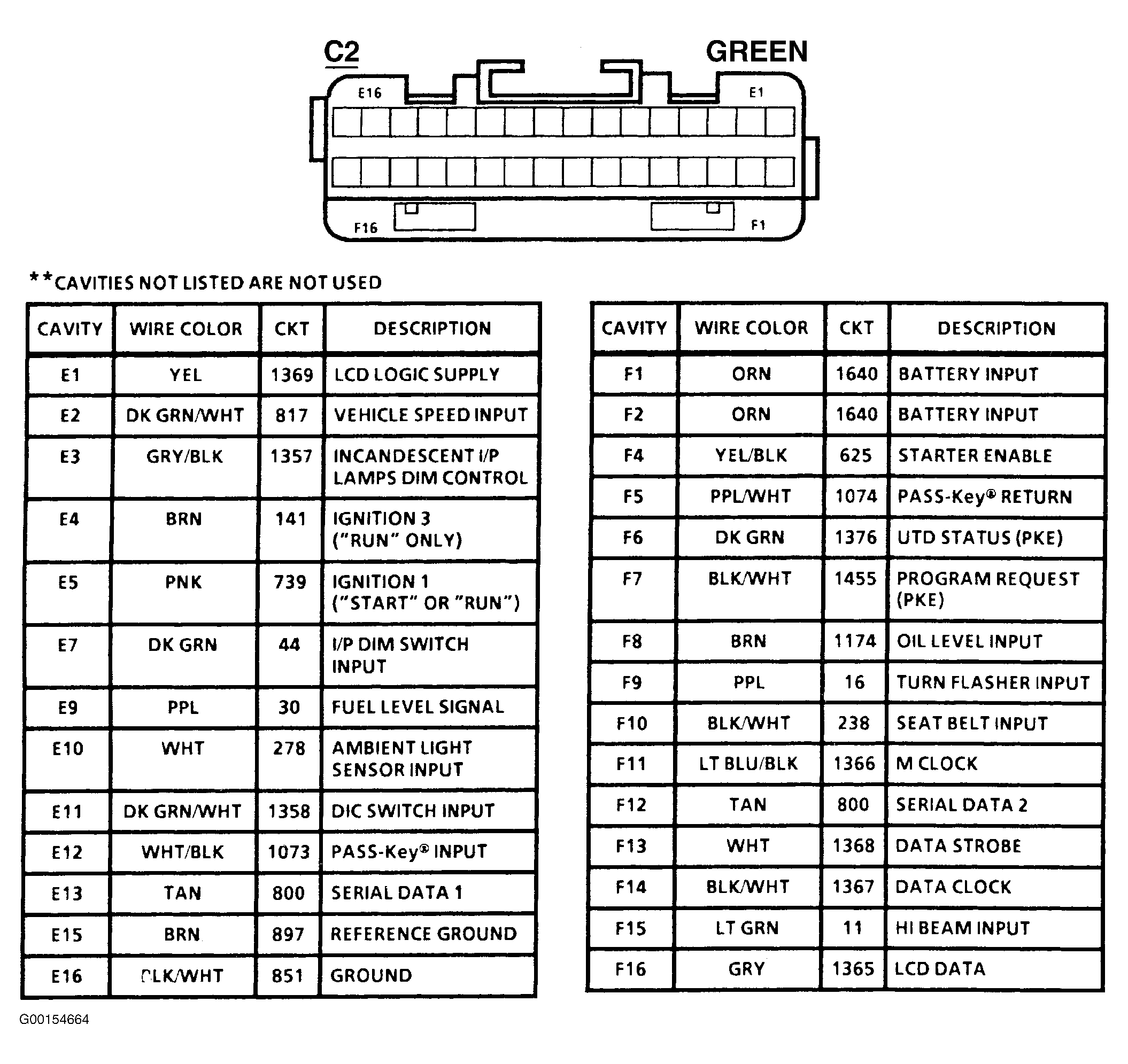

Fig 3: Identifying CCM C2 (Green) Connector Terminal
G00154664Courtesy of GENERAL MOTORS CORP.
