Home
>>
Chevrolet
>>
1994
>>
G 20 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Left Side View of Engine
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

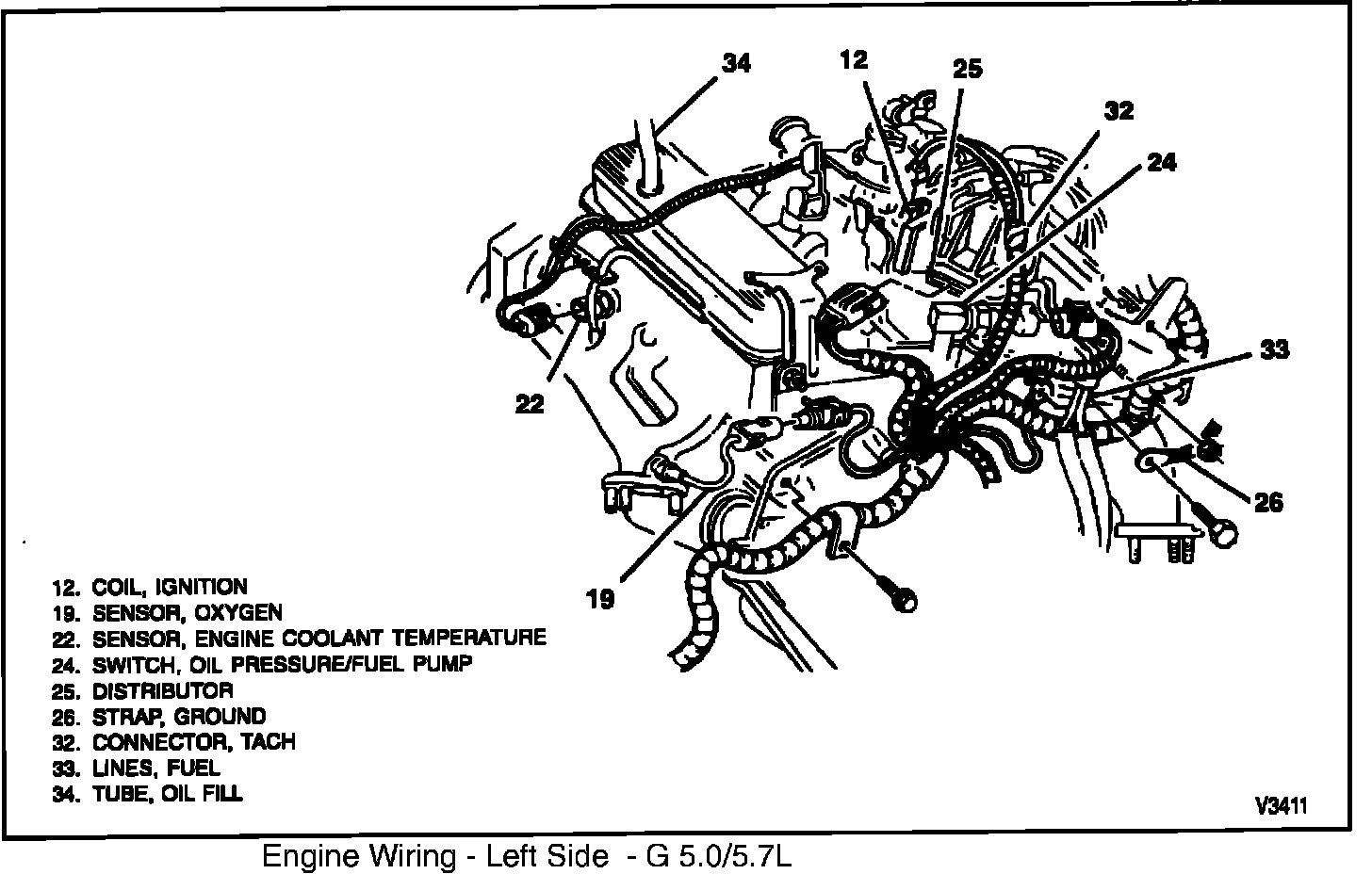

Left Side View of Engine
Engine Wiring - Left Side G 5.0/5.7L:
