Powertrain/Transmission Control Module (PCM/TCM)

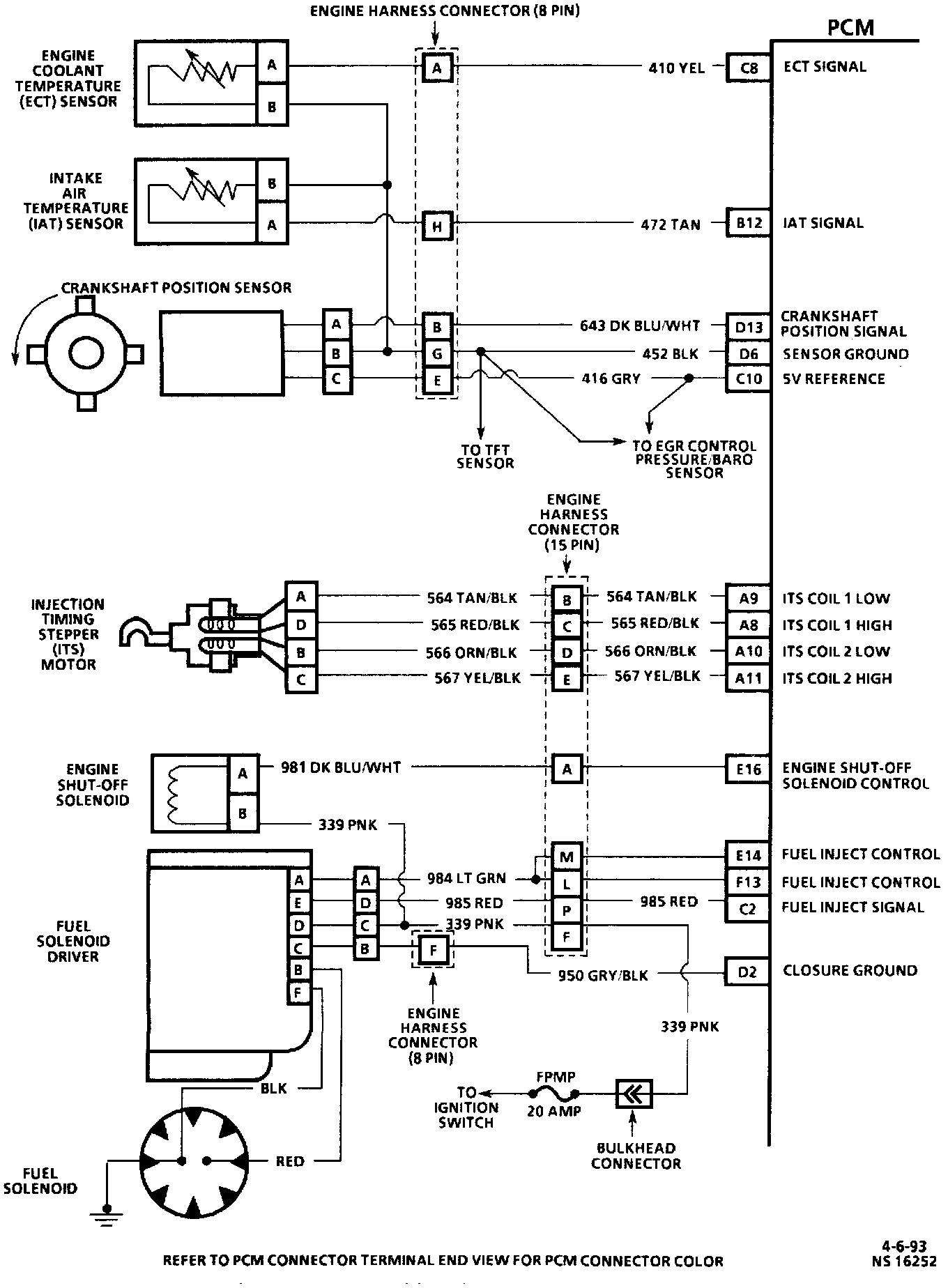

PCM Wiring Diagram:

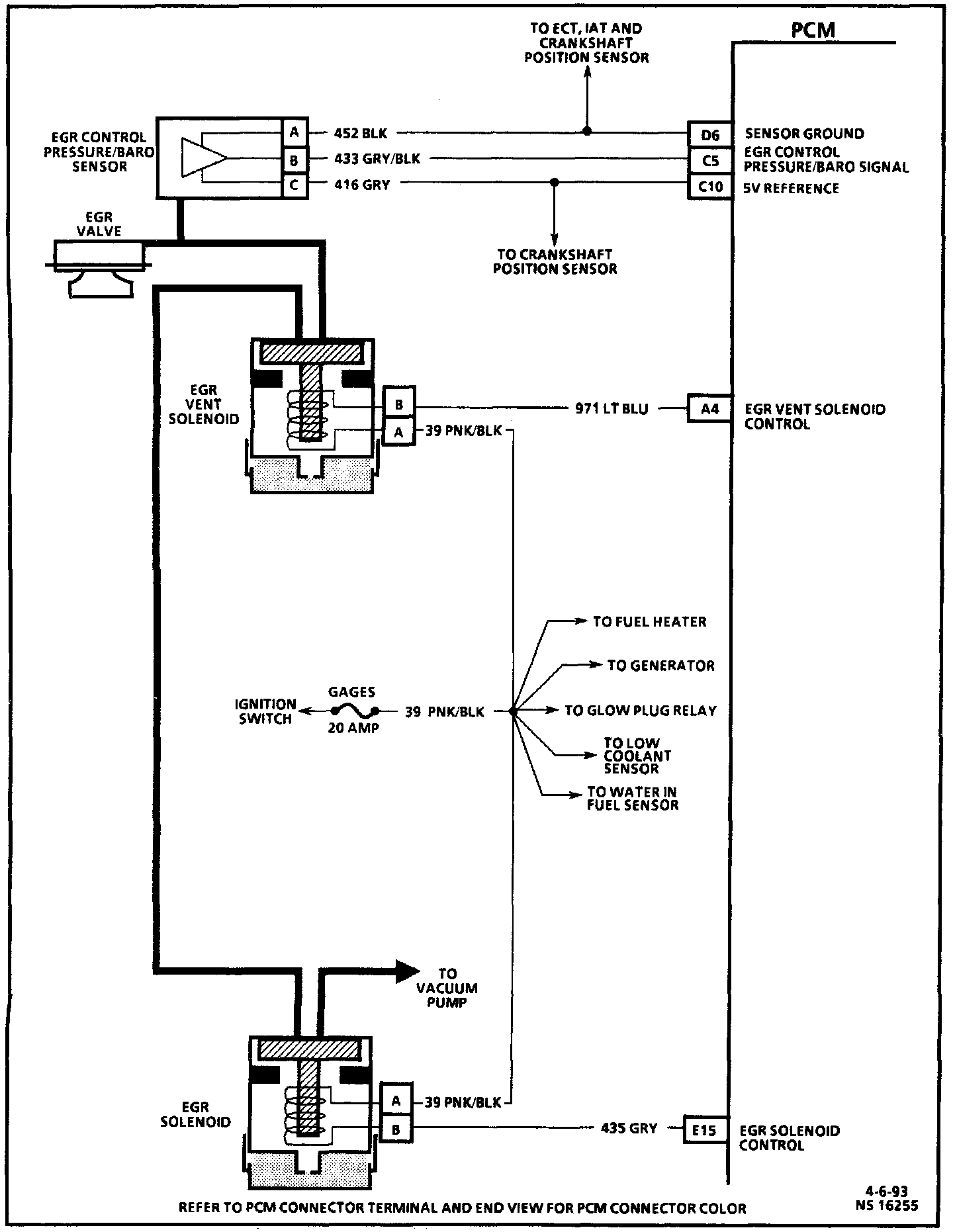

PCM Wiring Diagram:

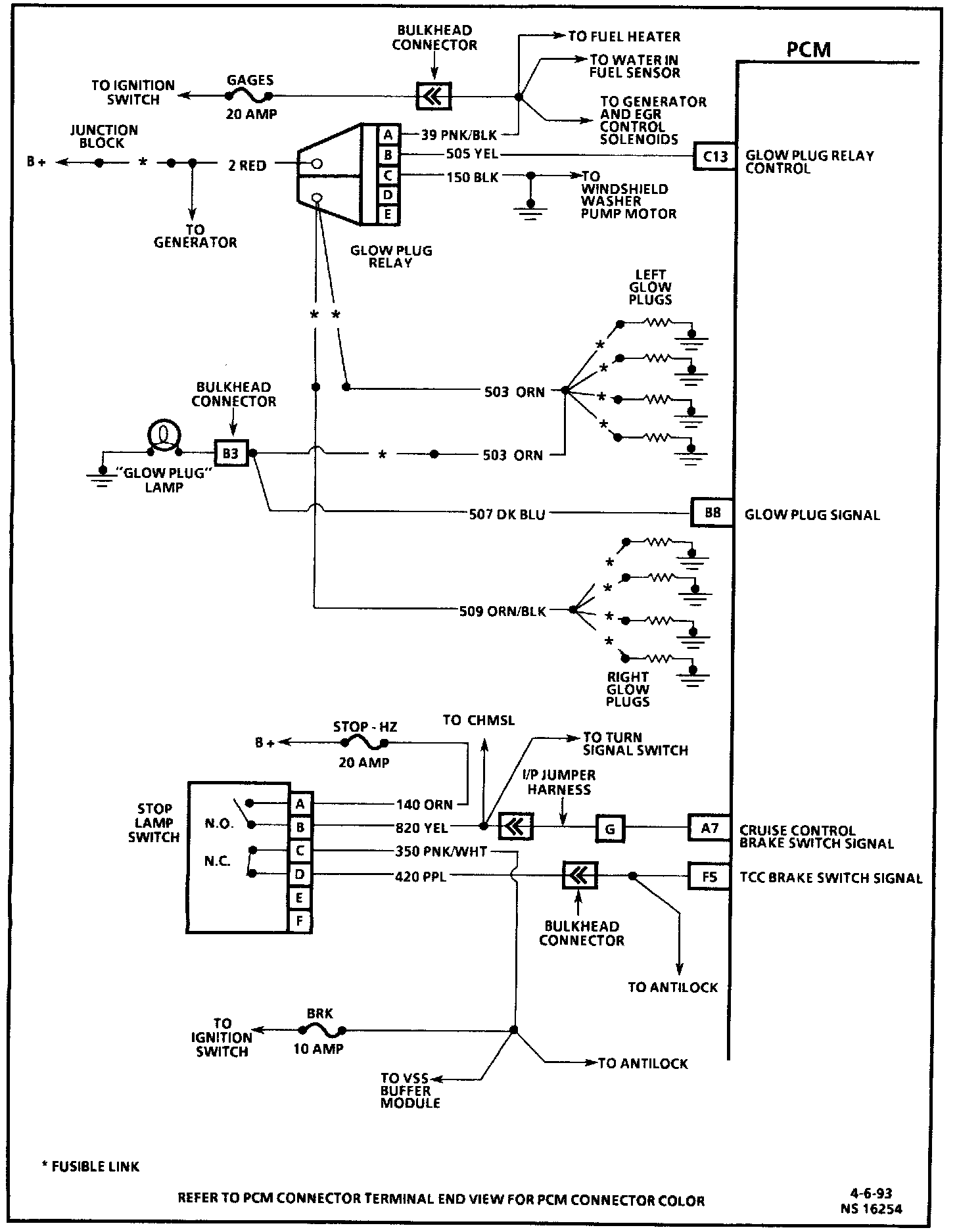

PCM Wiring Diagram:

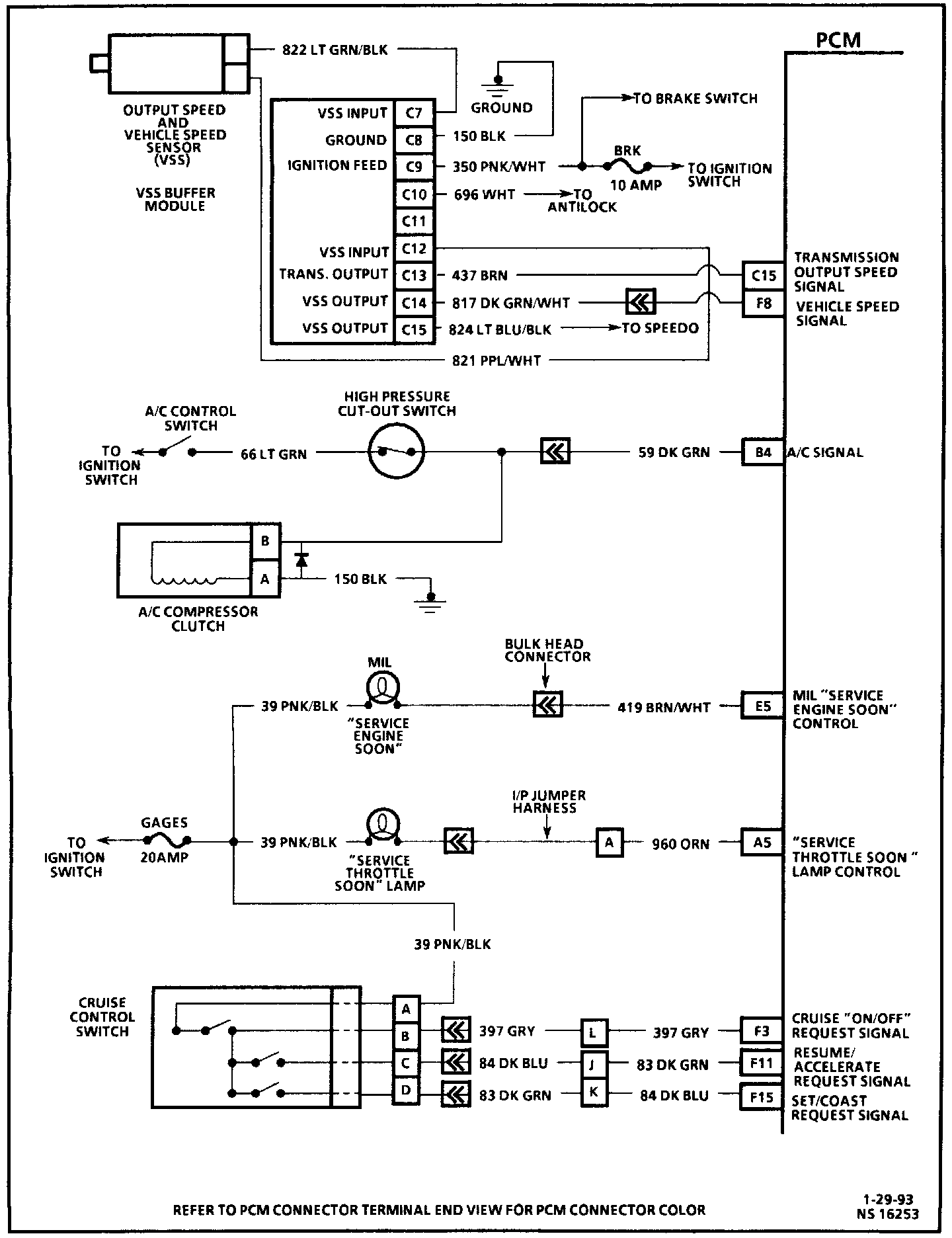

PCM Wiring Diagram:

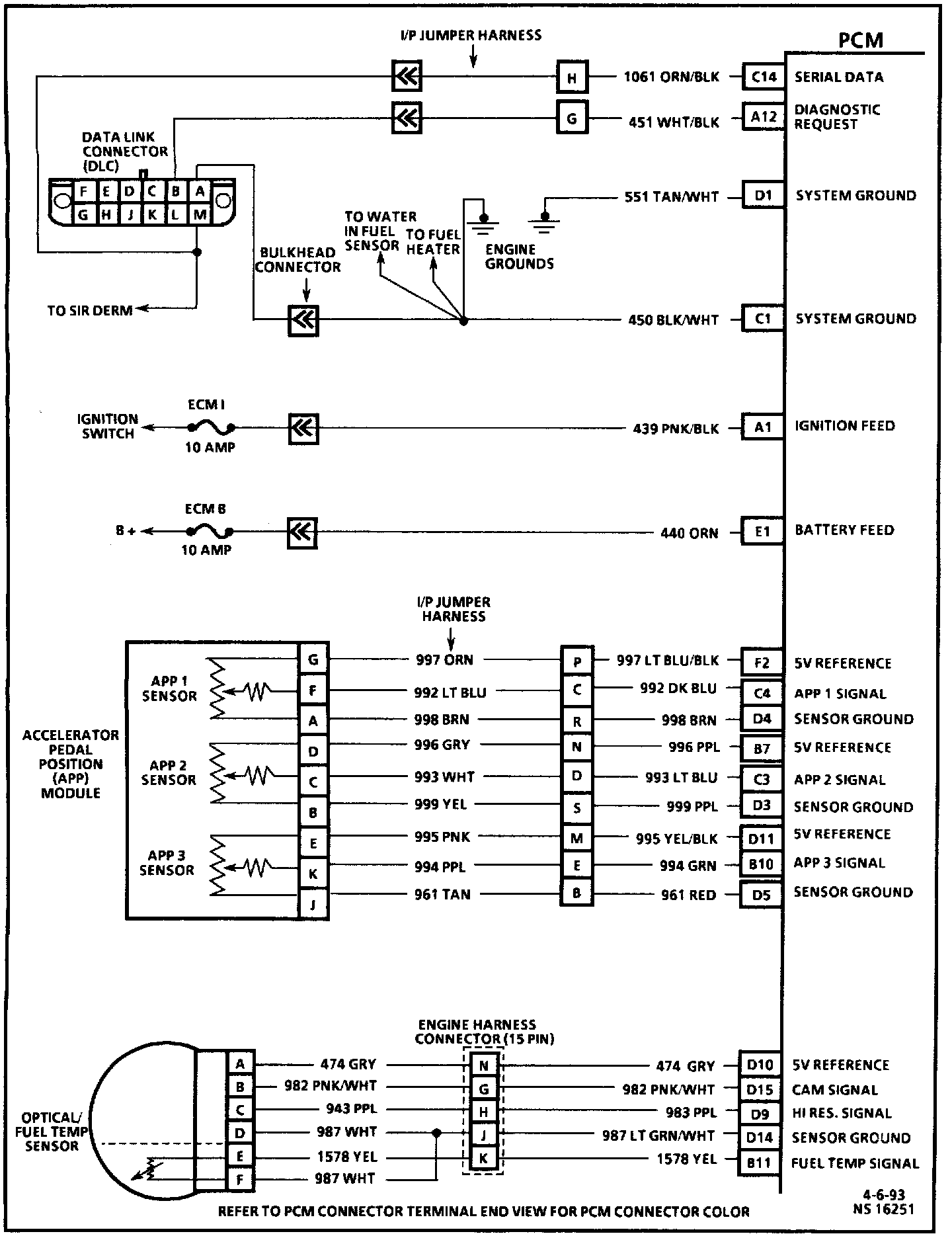

PCM Wiring Diagram:

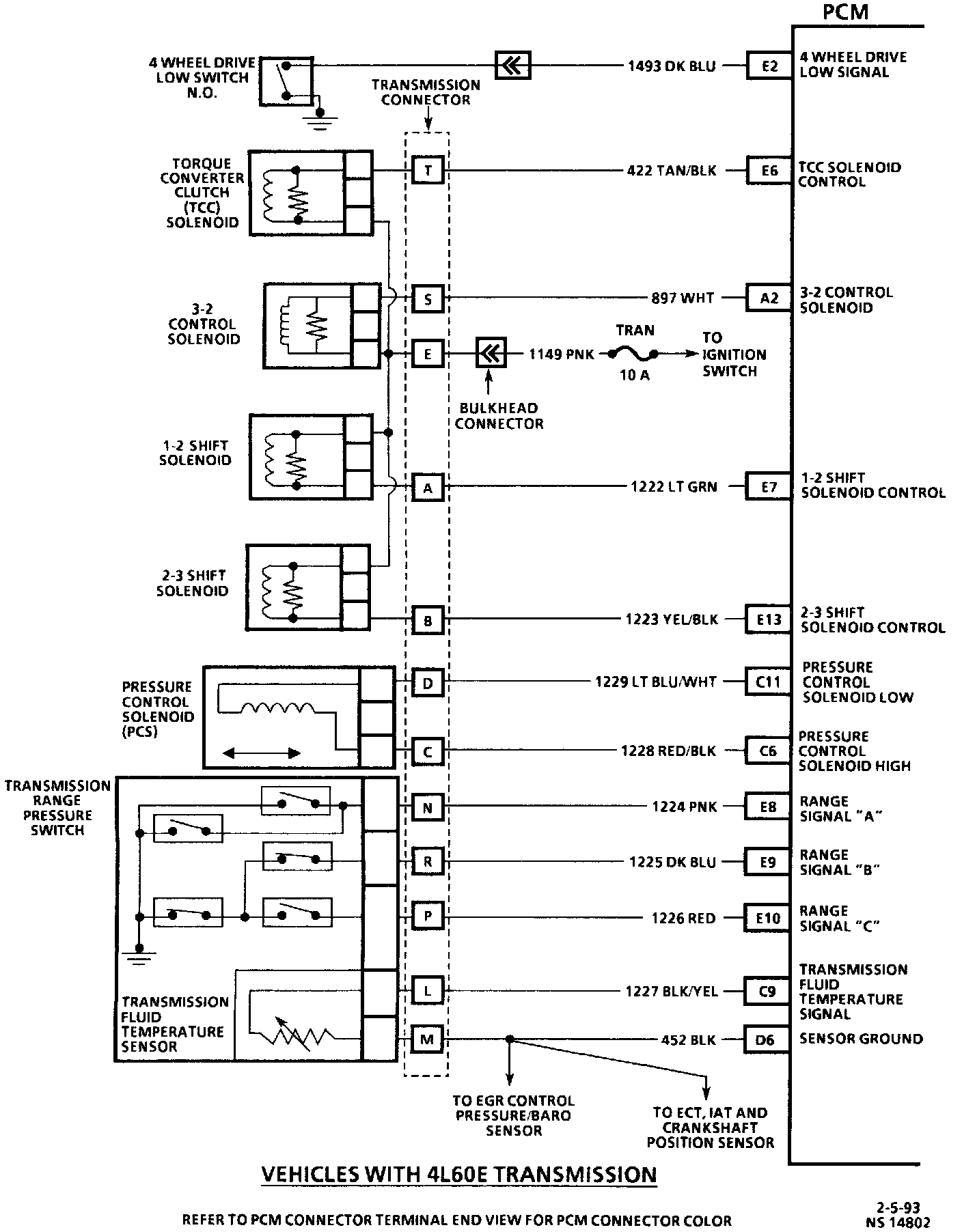

PCM Wiring Diagram 4L60-E:
