A/C Compressor Control Relay

A/C COMPRESSOR CONTROL RELAY

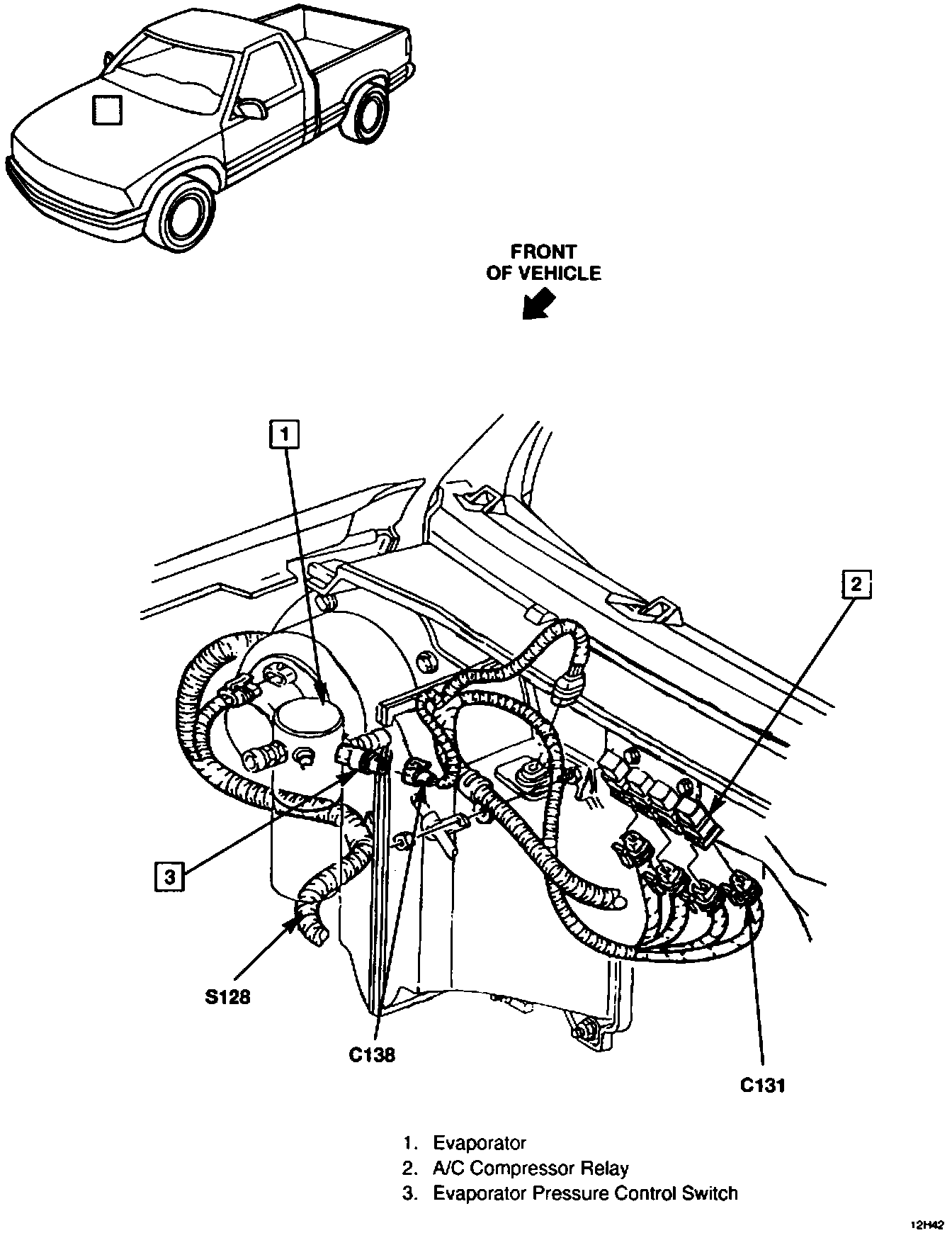

Fender Wiring RH:






The A/C Compressor Control Relay is located in Engine Compartment, on LH side of cowl.
