Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
Compressor - Disassembly
>>
Direct Mounted
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Direct Mounted

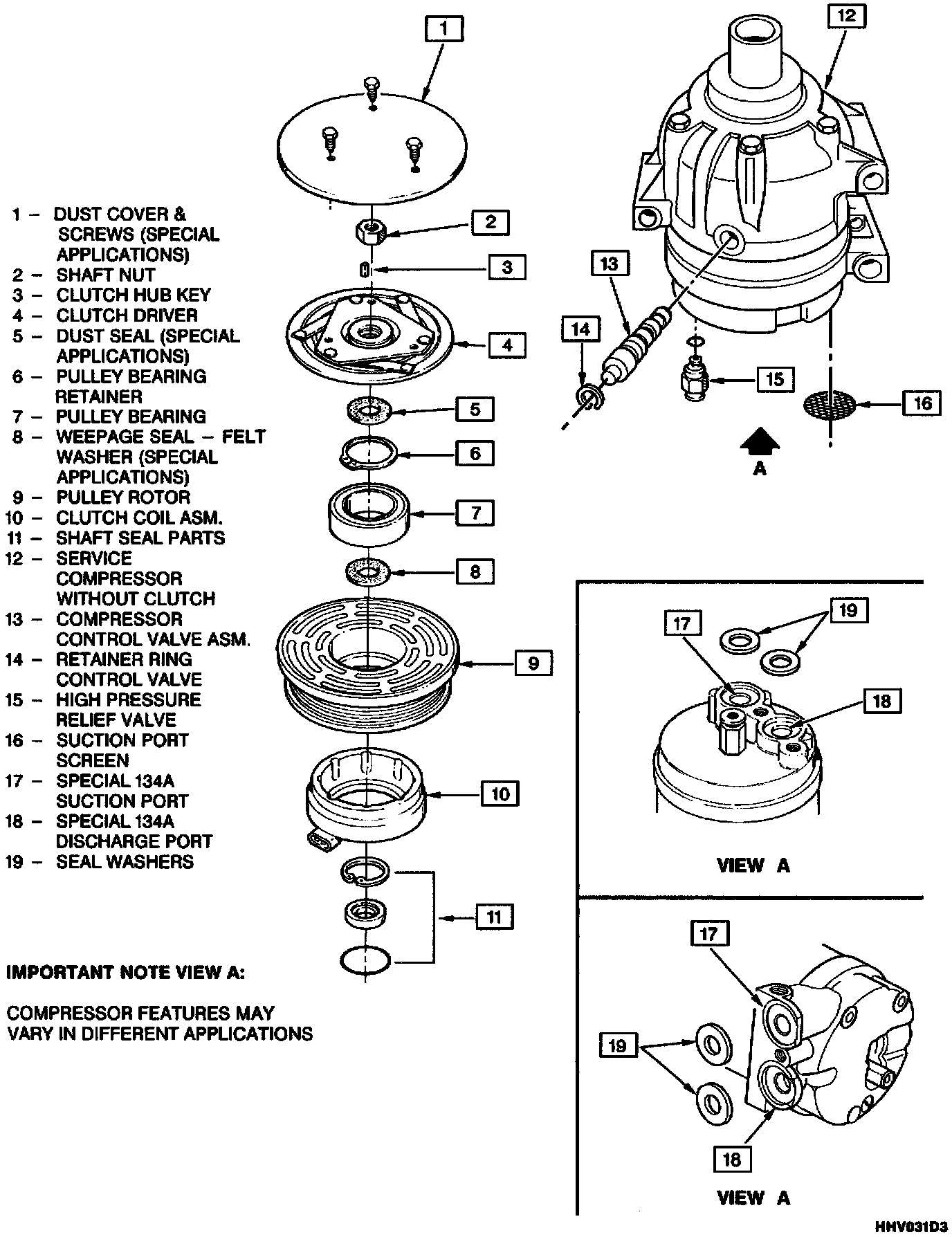

Compressor Components - Disassembled View:
