Torque Specifications

Cylinder Head Bolts

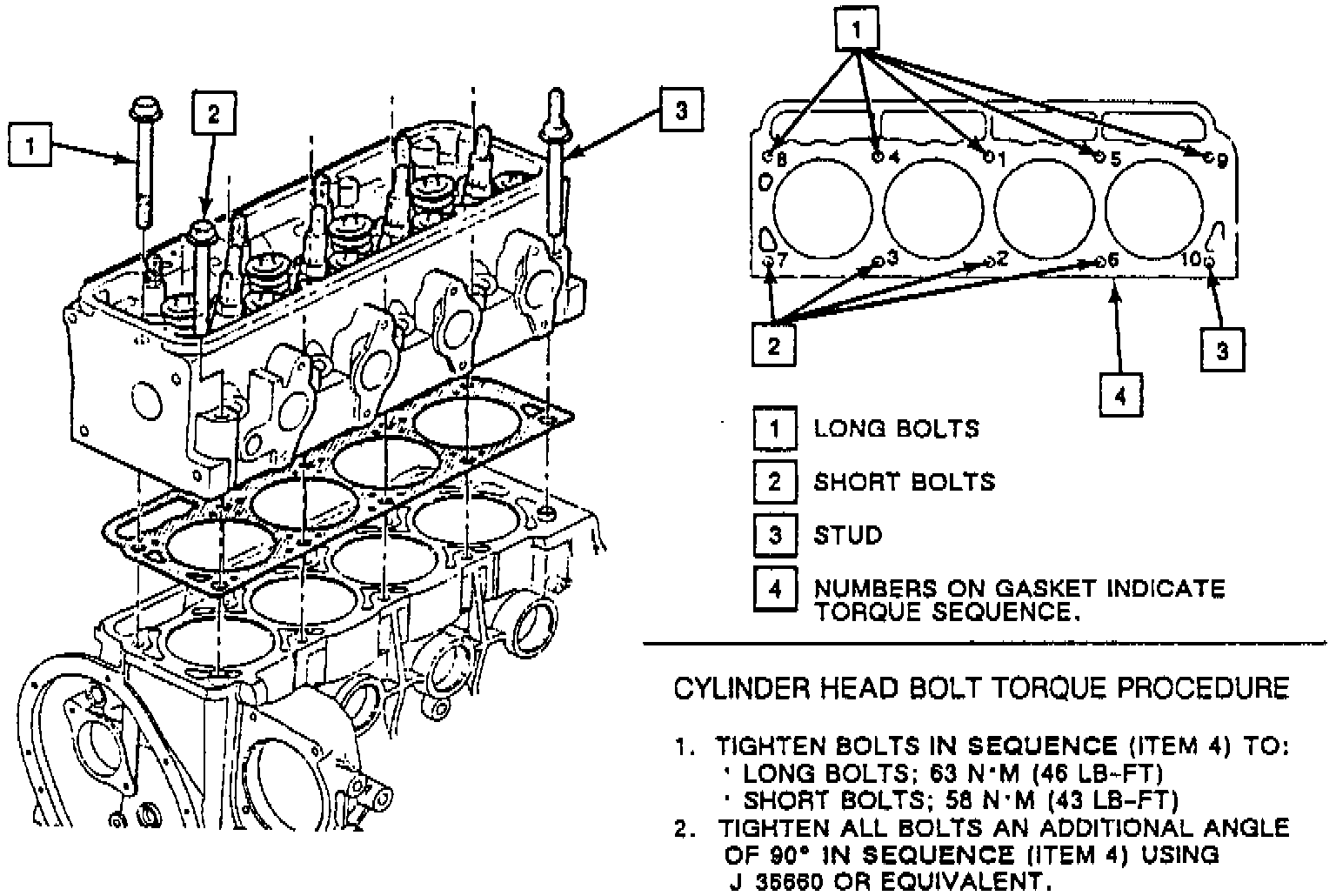

Fig. 8 Cylinder Head Bolt Tightening Sequence:

In the sequence shown (refer to figure 8):

1. Torque long bolts to 63 Nm (46 lbs. ft.)
Torque short bolts to 58 Nm (43 lbs. ft.)
2. Tighten bolts an additional 90°
