Air Bag Control Module

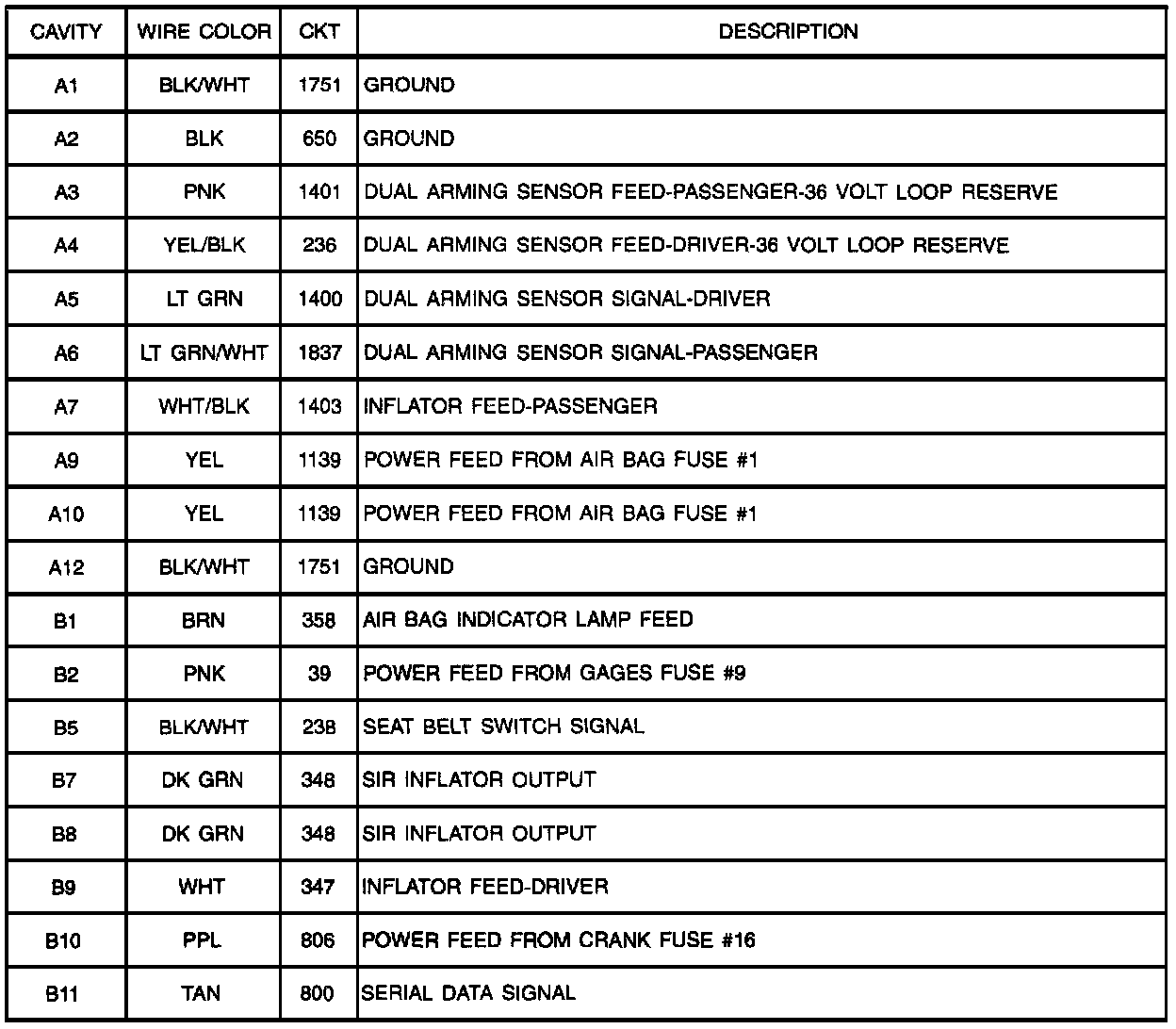

Wire Color And Description:



Connector View: Diagnostic Energy Reserve Module (DERM):
