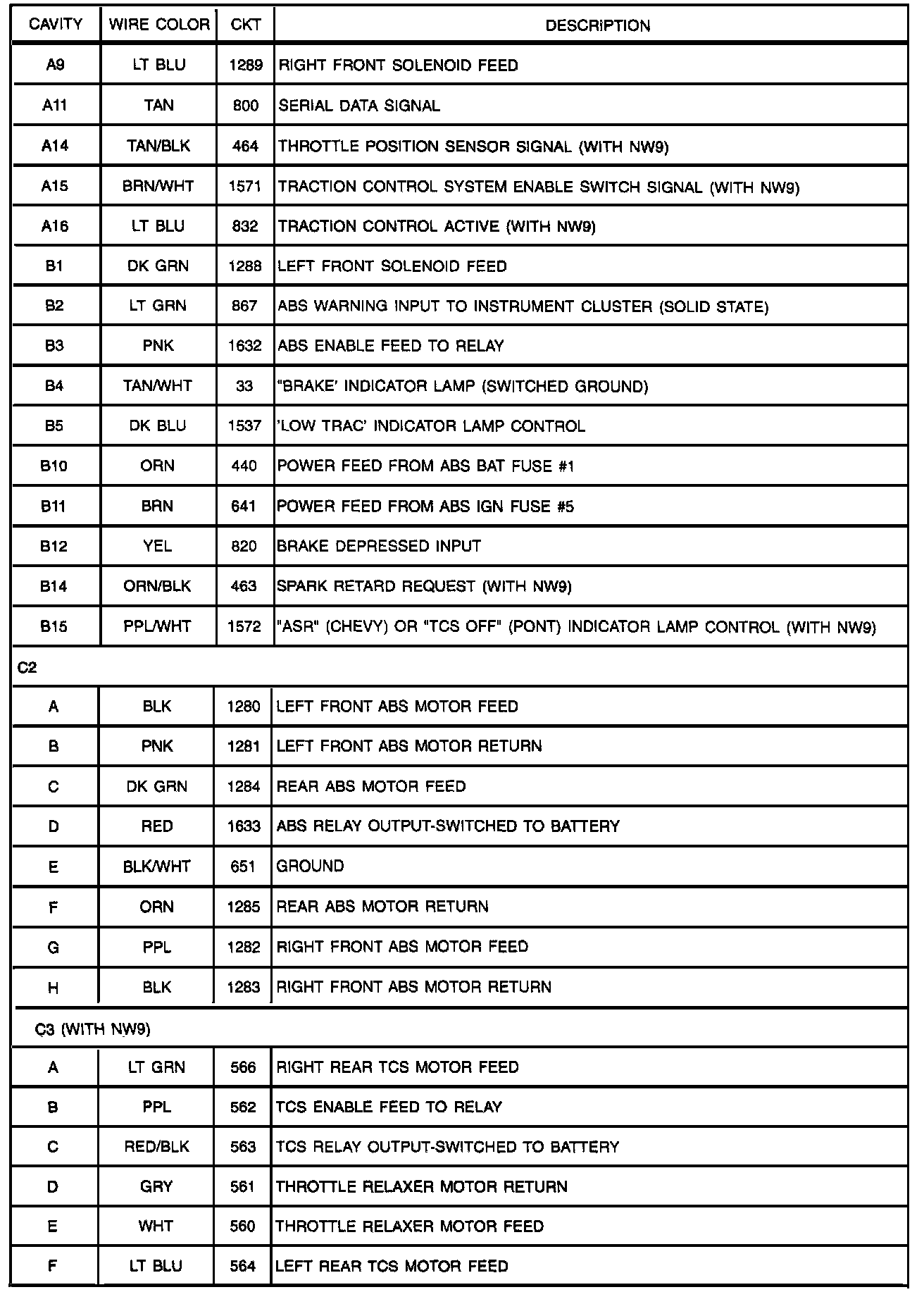

Pinout Description

Wire Color And Description:



Wire Color And Description:



Wire Color And Description:
