Powertrain Control Module - PCM

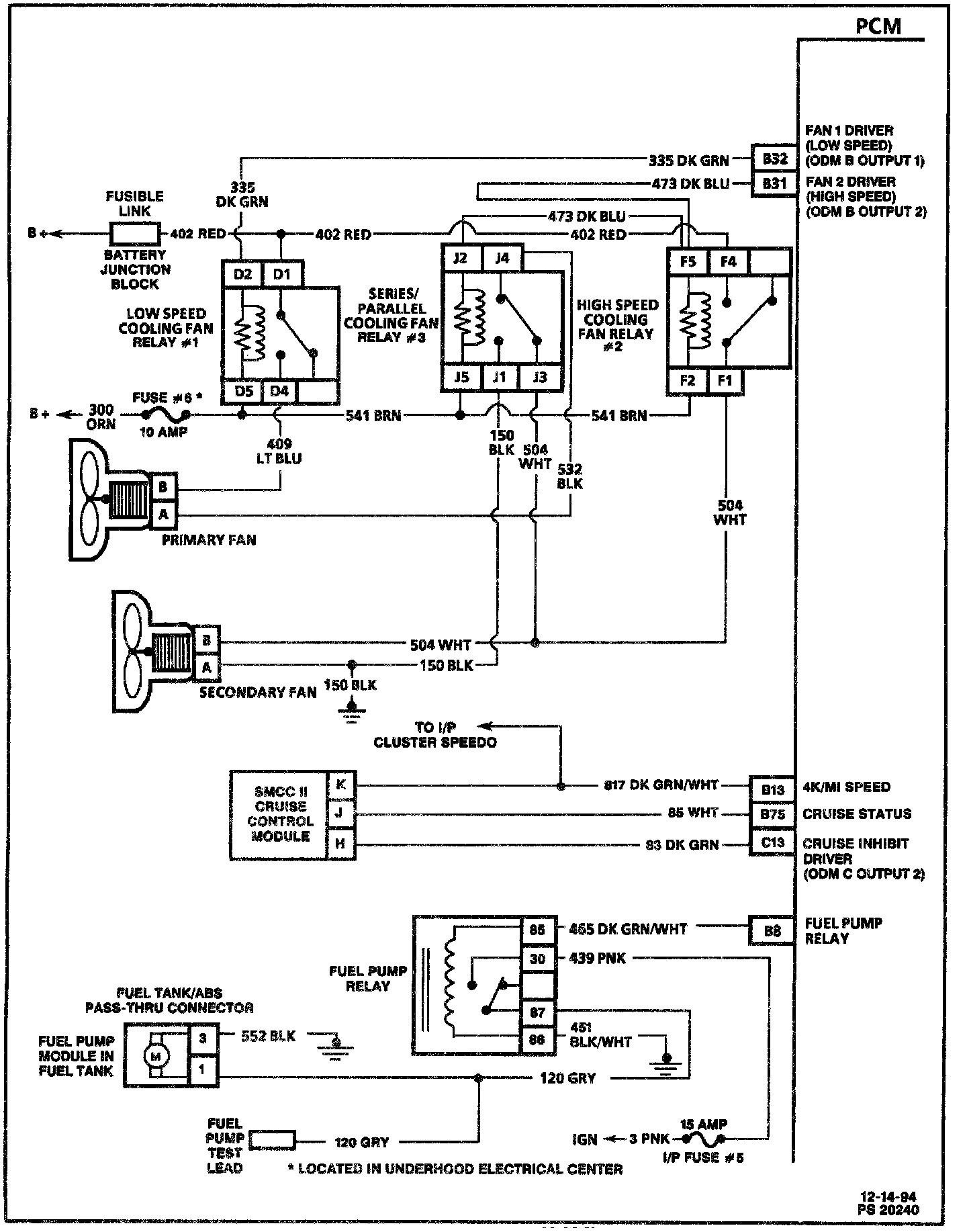

PCM (Part 1 Of 6):

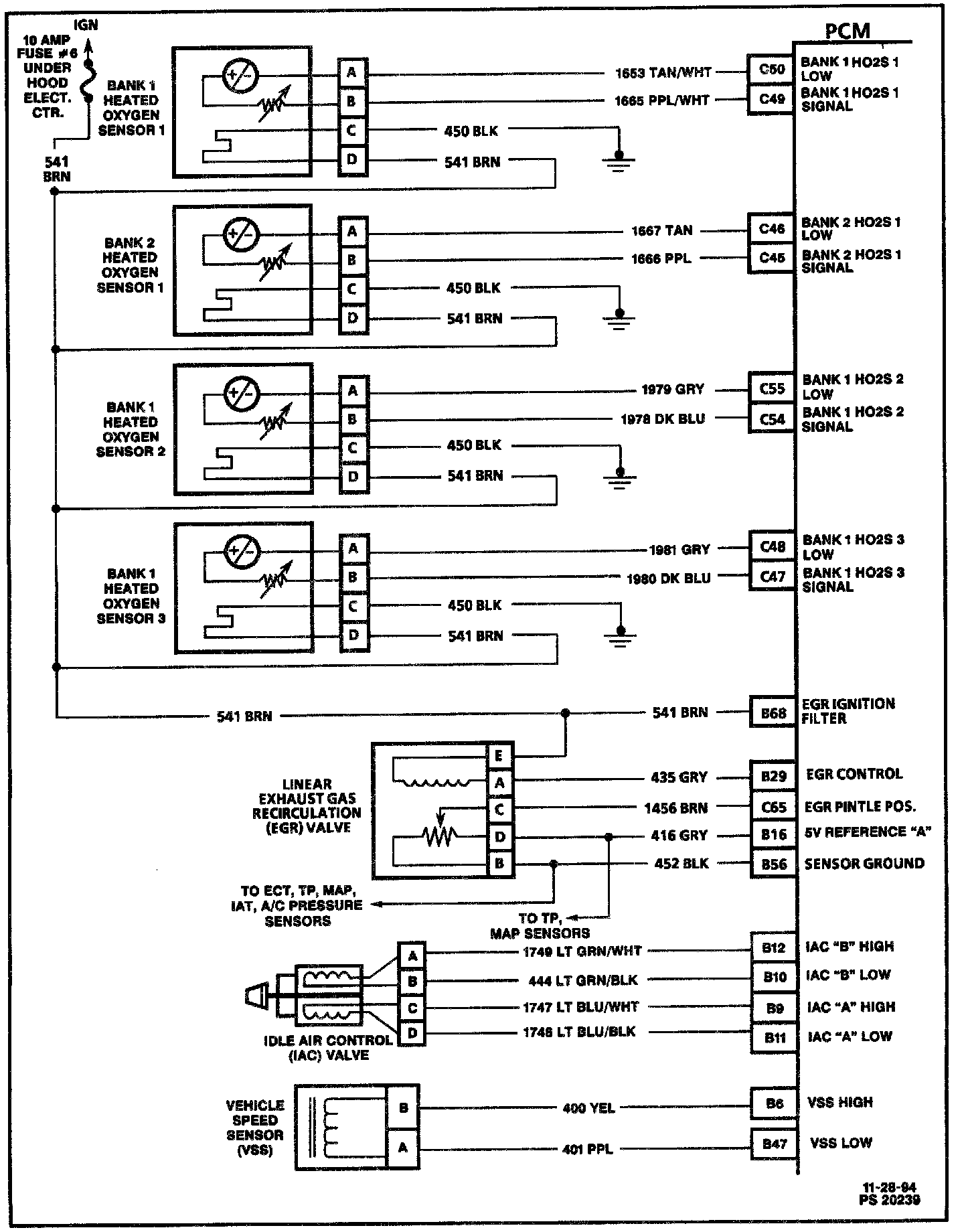

PCM (Part 2 Of 6):

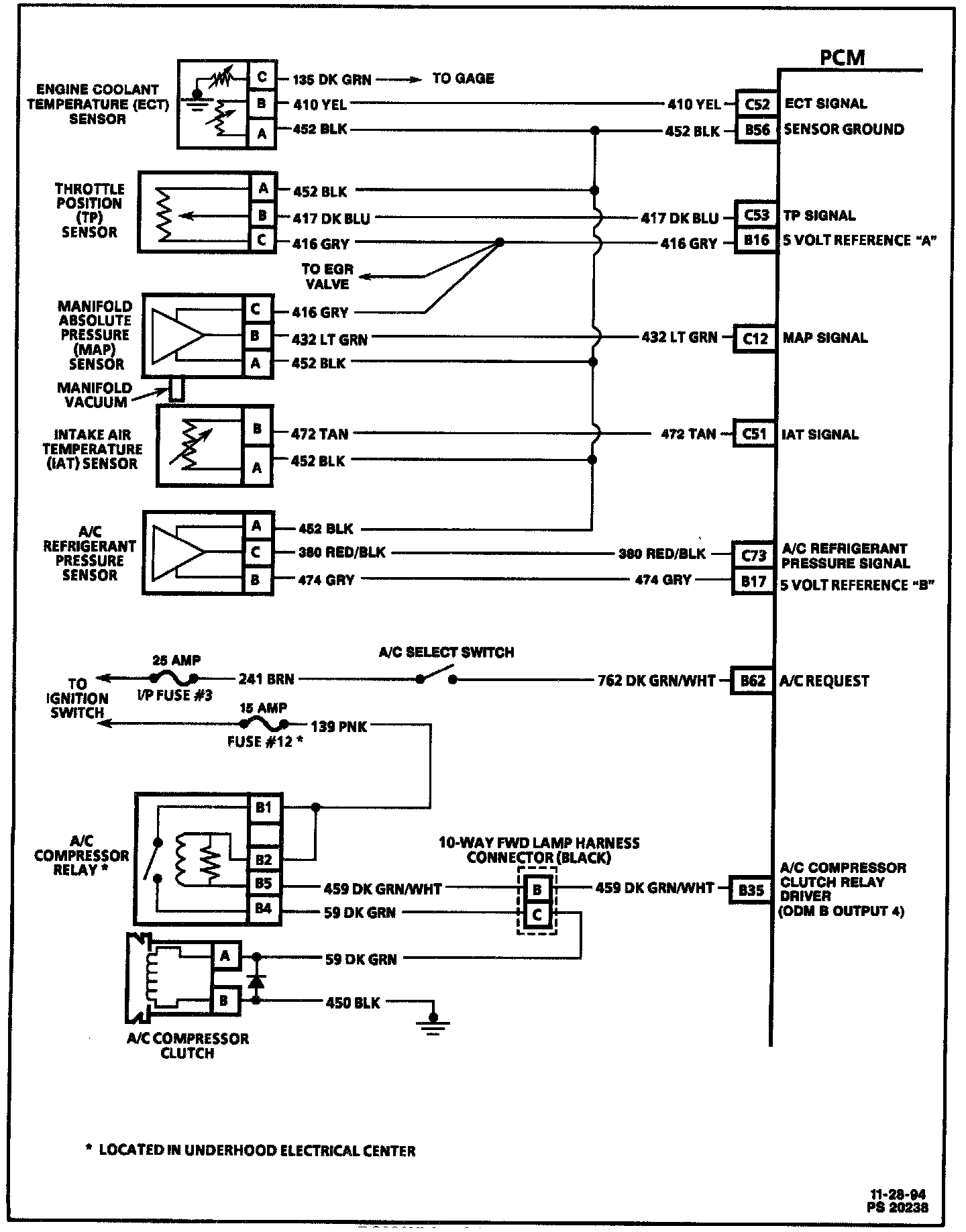

PCM (Part 3 Of 6):

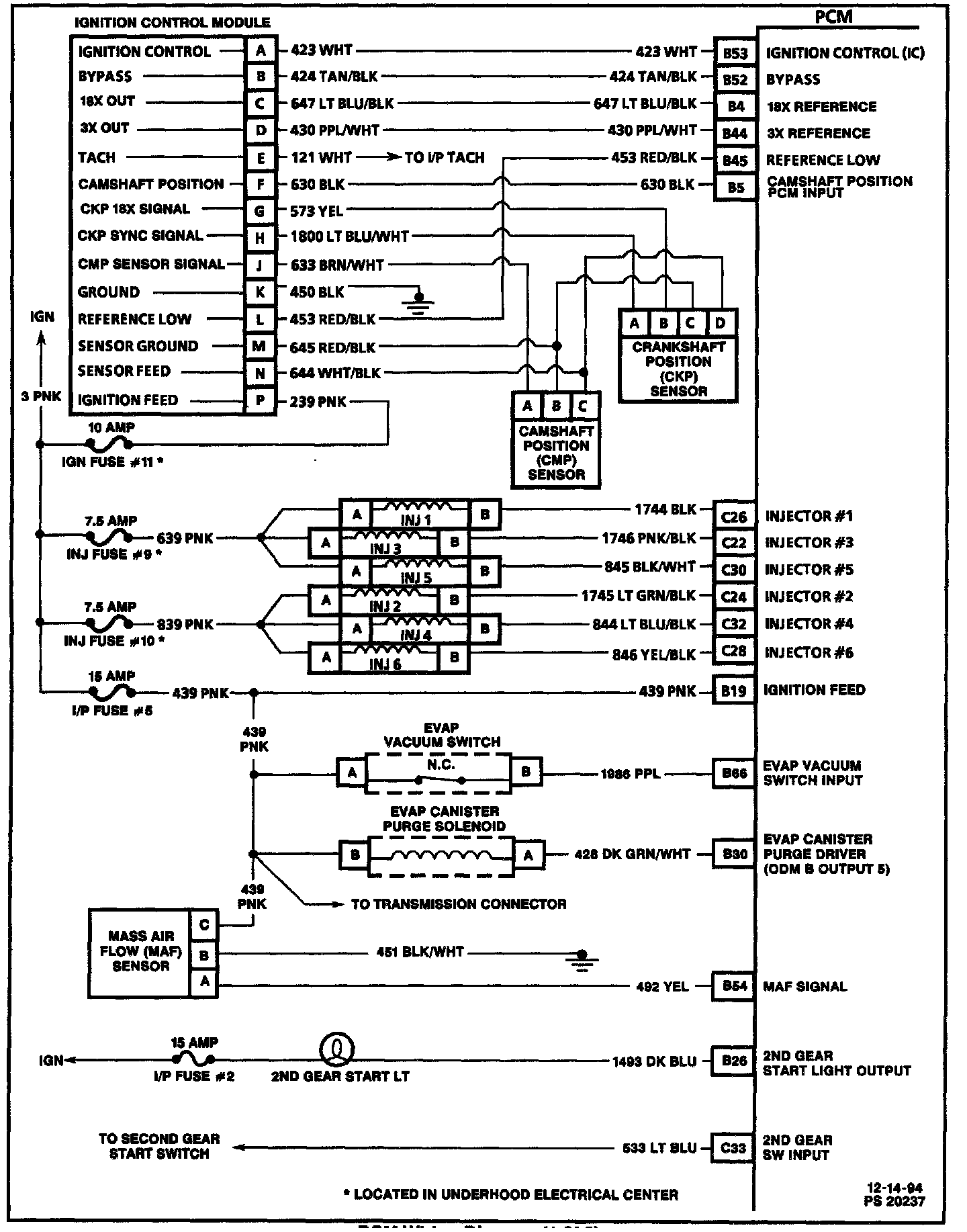

PCM (Part 4 Of 6):

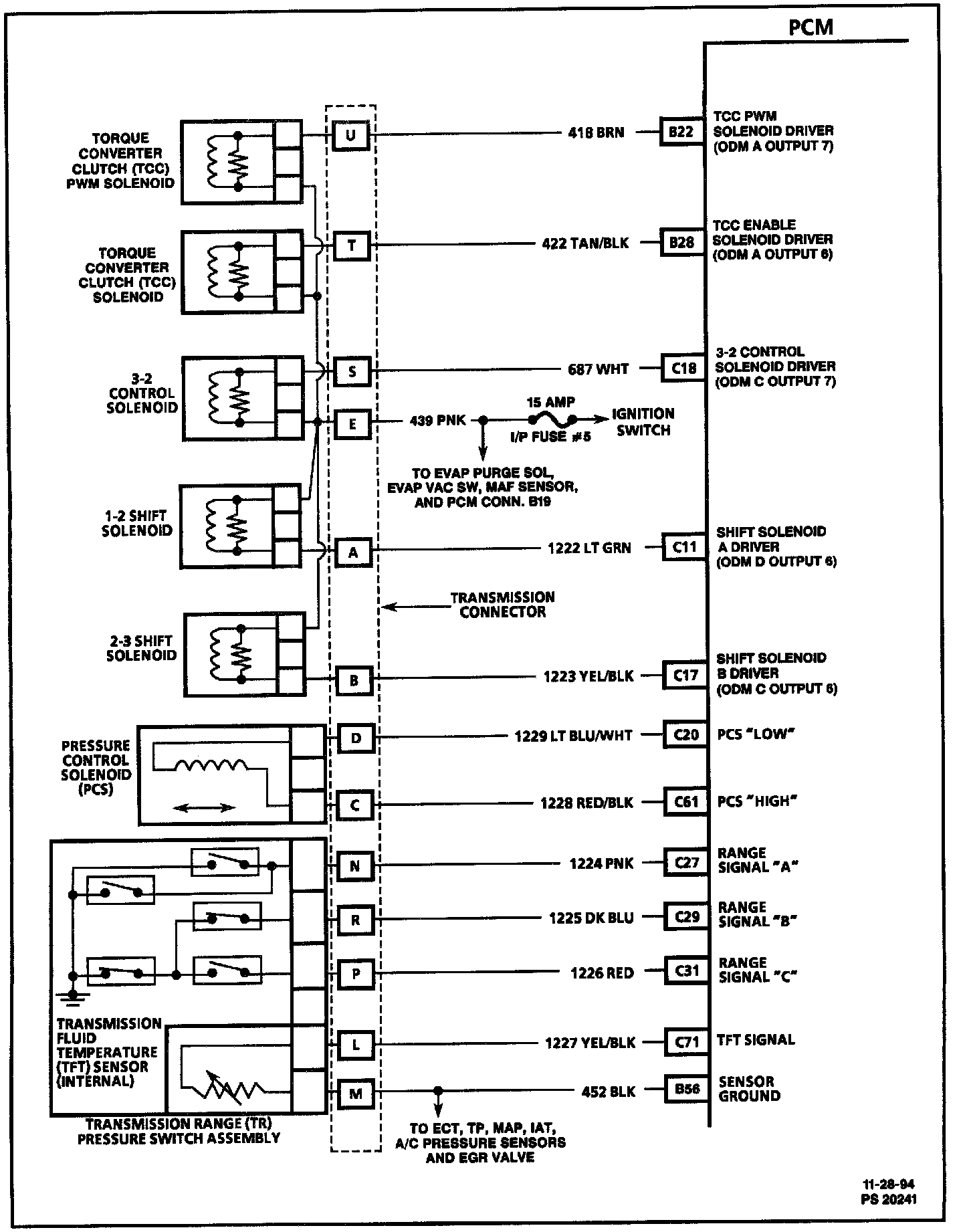

PCM (Part 5 Of 6):

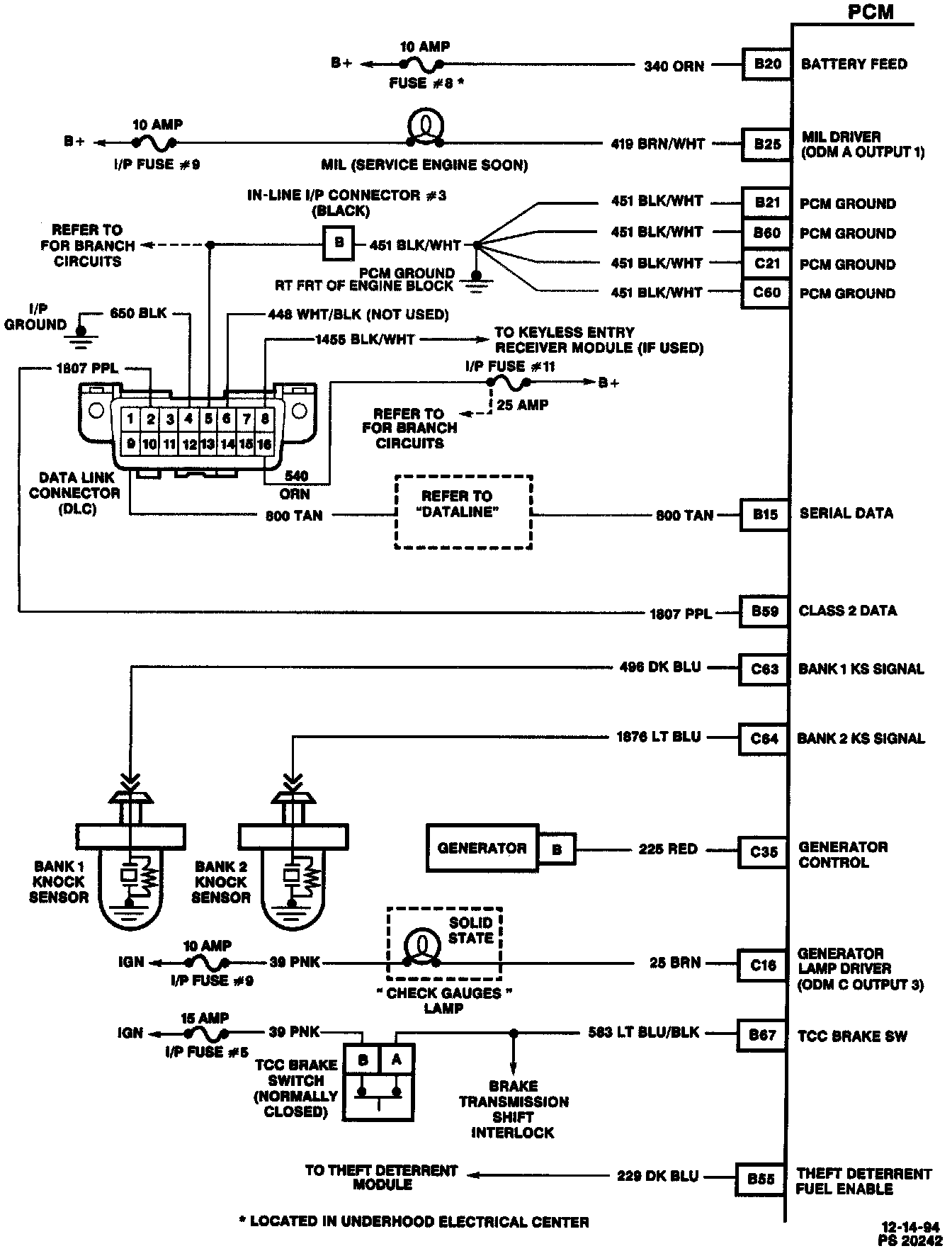

PCM (Part 6 Of 6):

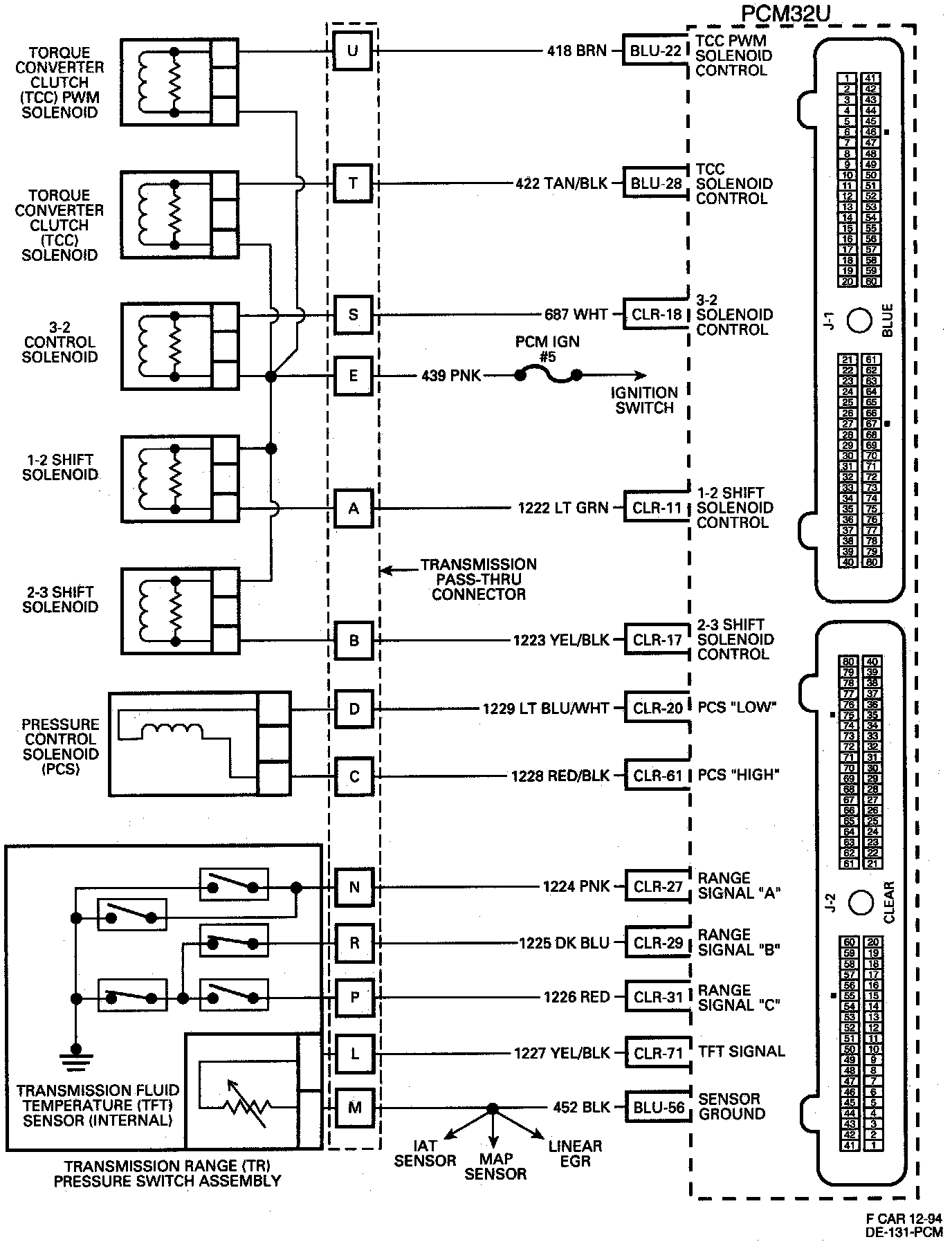

PCM (L36) - 4L60-E Transmission:
