Pinout Description

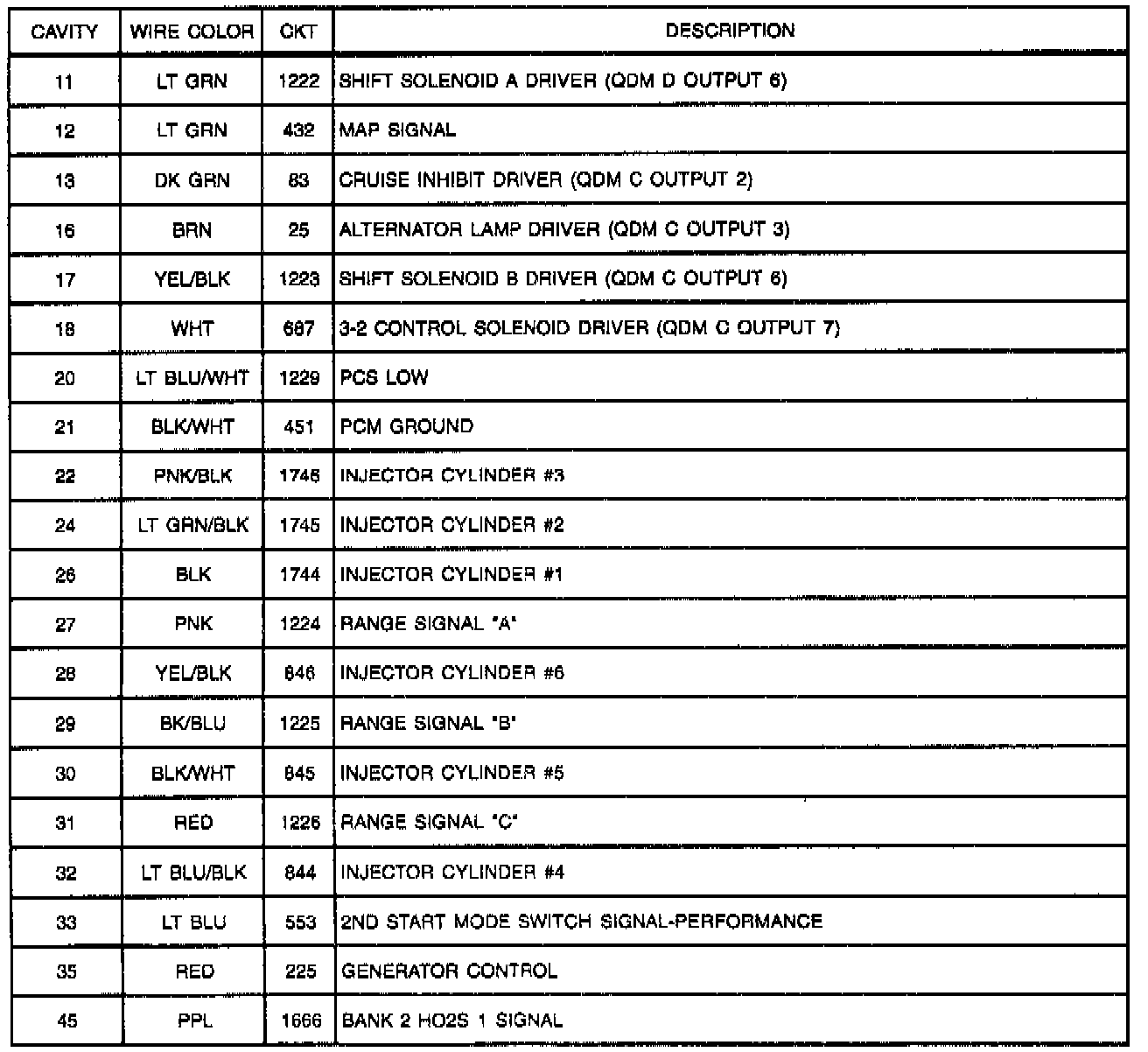

Pinout Identification:




Part 1 of 4

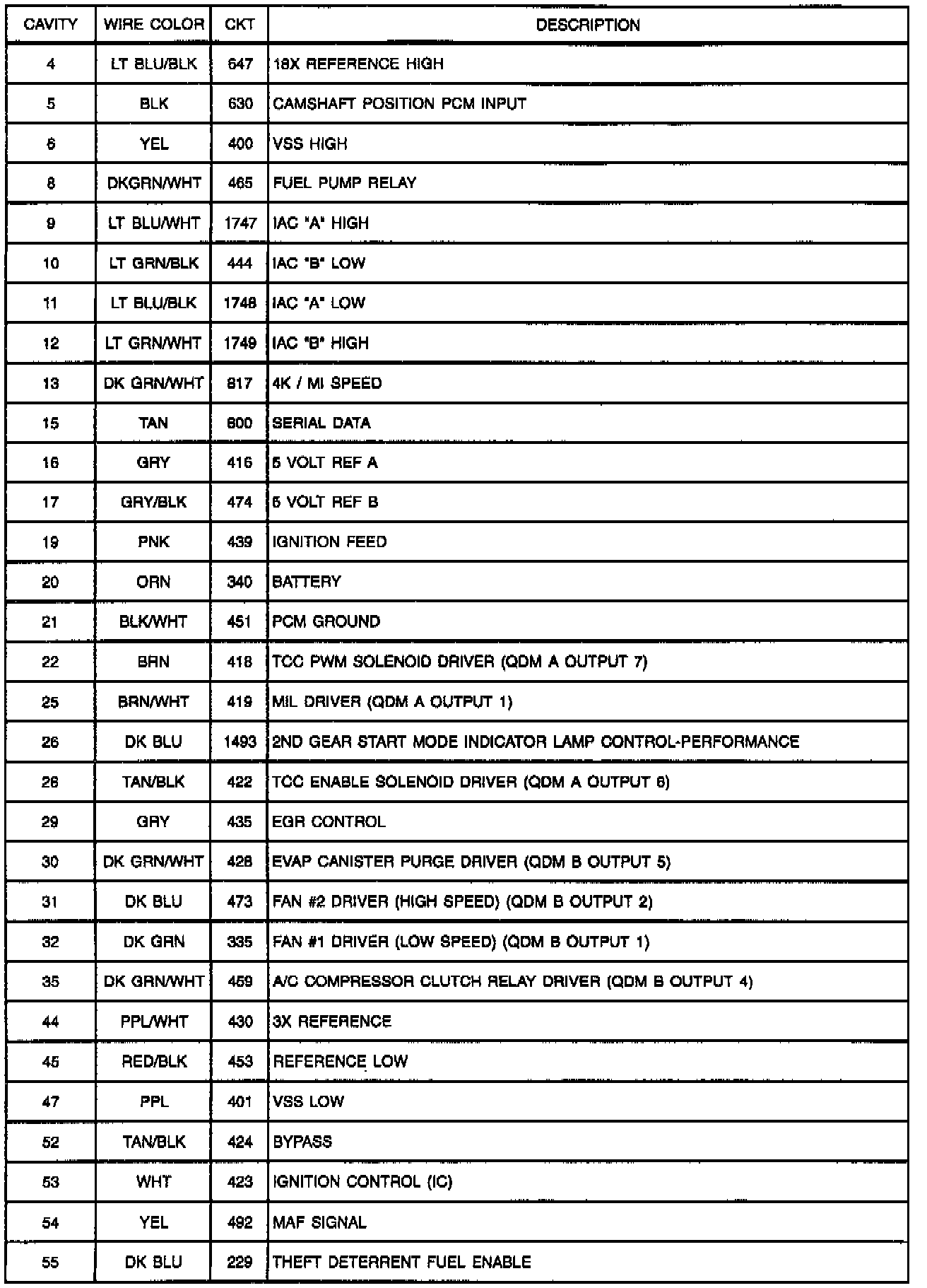

Pinout Identification:




Part 2 of 4

Pinout Identification:




Part 3 of 4

Pinout Identification:




Part 4 of 4
