Abs/TCS Functional Check

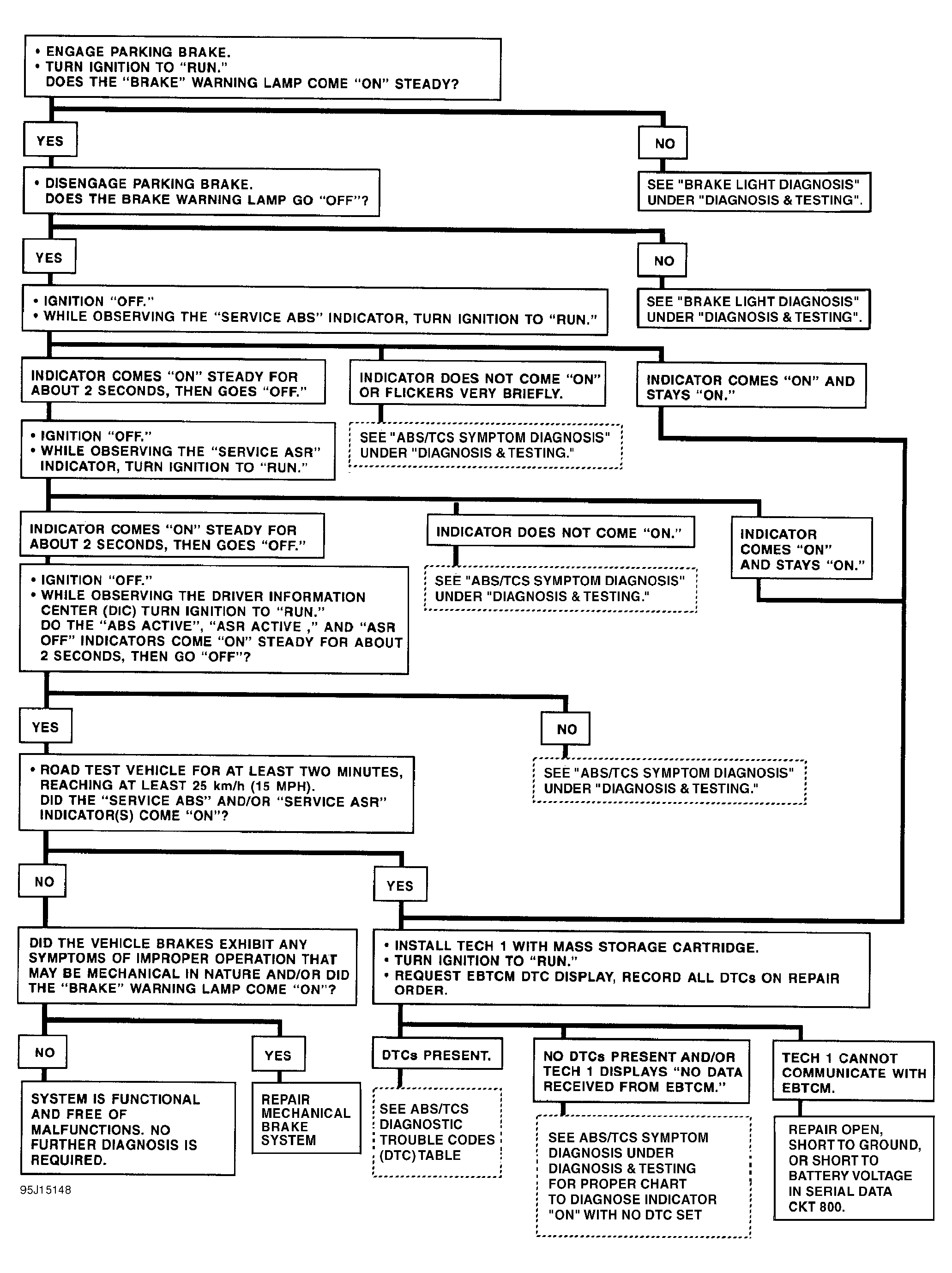

Fig 1: ABS/TCS Functional Check Flow Chart
Courtesy of GENERAL MOTORS CORP.
