Heater Control Assembly:

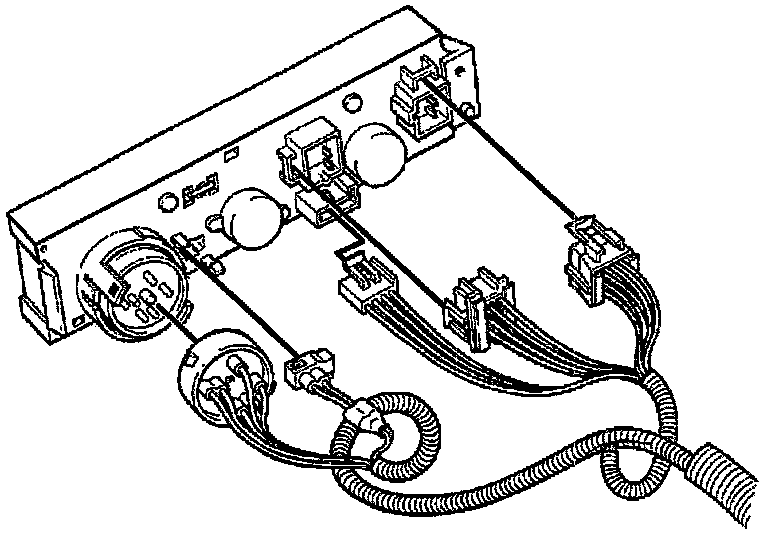

Control Assembly Harnesses:

REMOVE OR DISCONNECT
1. Instrument cluster trim plate.
2. Control assembly from Instrument Panel (I/P).
^ One retaining screw from left edge of control assembly.
^ Pivot control assembly from the I/P.
^ Pull control assembly out of the instrument panel far enough to reach the vacuum and electrical connectors.
3. Electrical connectors.
4. Vacuum connectors.

INSTALL OR CONNECT
1. Vacuum connectors.
2. Electrical connectors.
3. Control assembly to the I/P.
^ Align tab on control with slot in I/P.
^ Pivot control assembly into the I/P.
^ One retaining screw to the left edge of the control assembly.
4. Instrument cluster trim plate.
