Removal & Installation

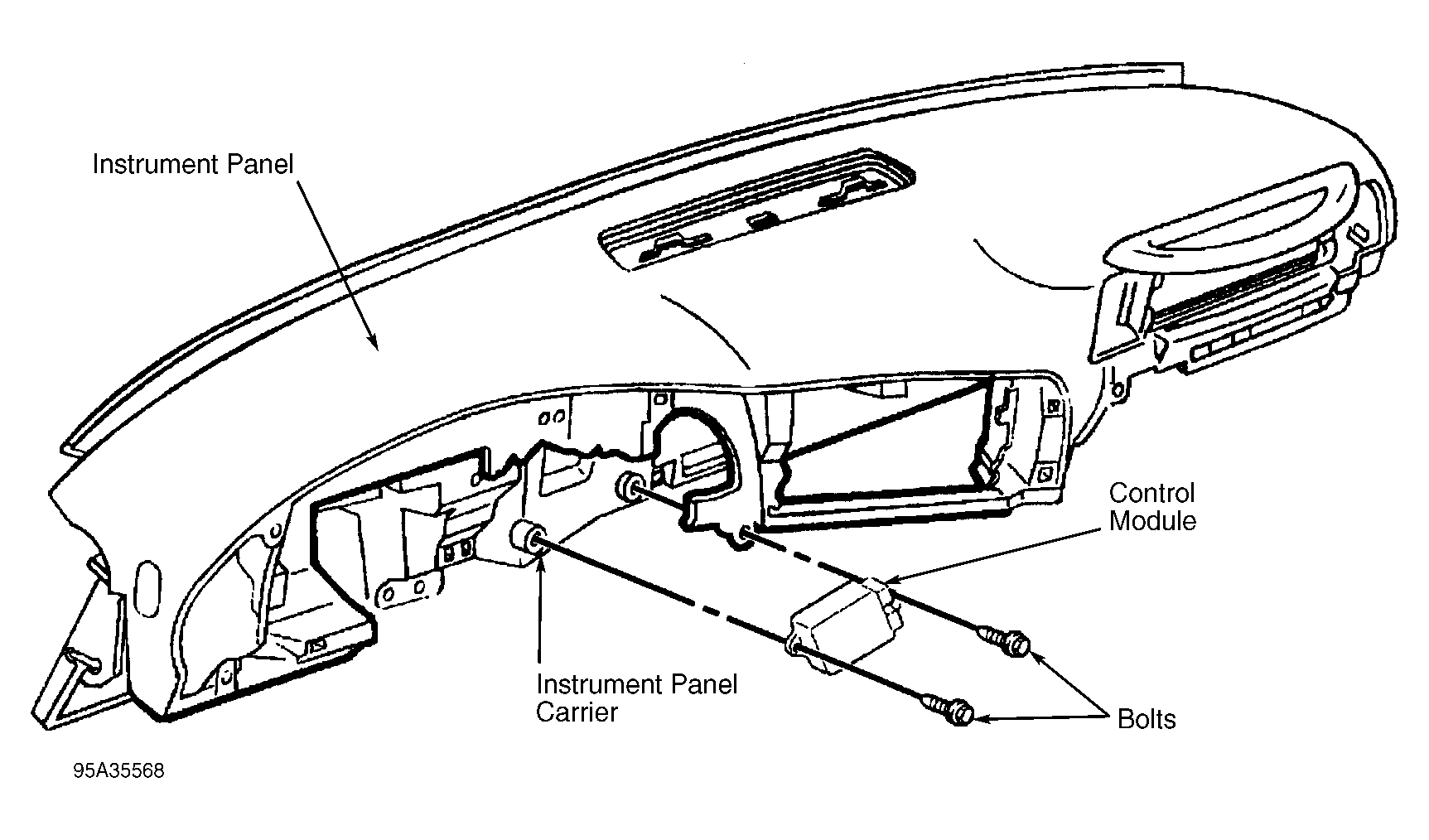

Disconnect negative battery cable. Remove instrument panel cluster trim plate. Remove radio or instrument panel storage pocket. Disconnect electrical connectors. Remove control module-to-instrument panel carrier bolts. Remove control module. To install, reverse removal procedure.
