Pinout Description

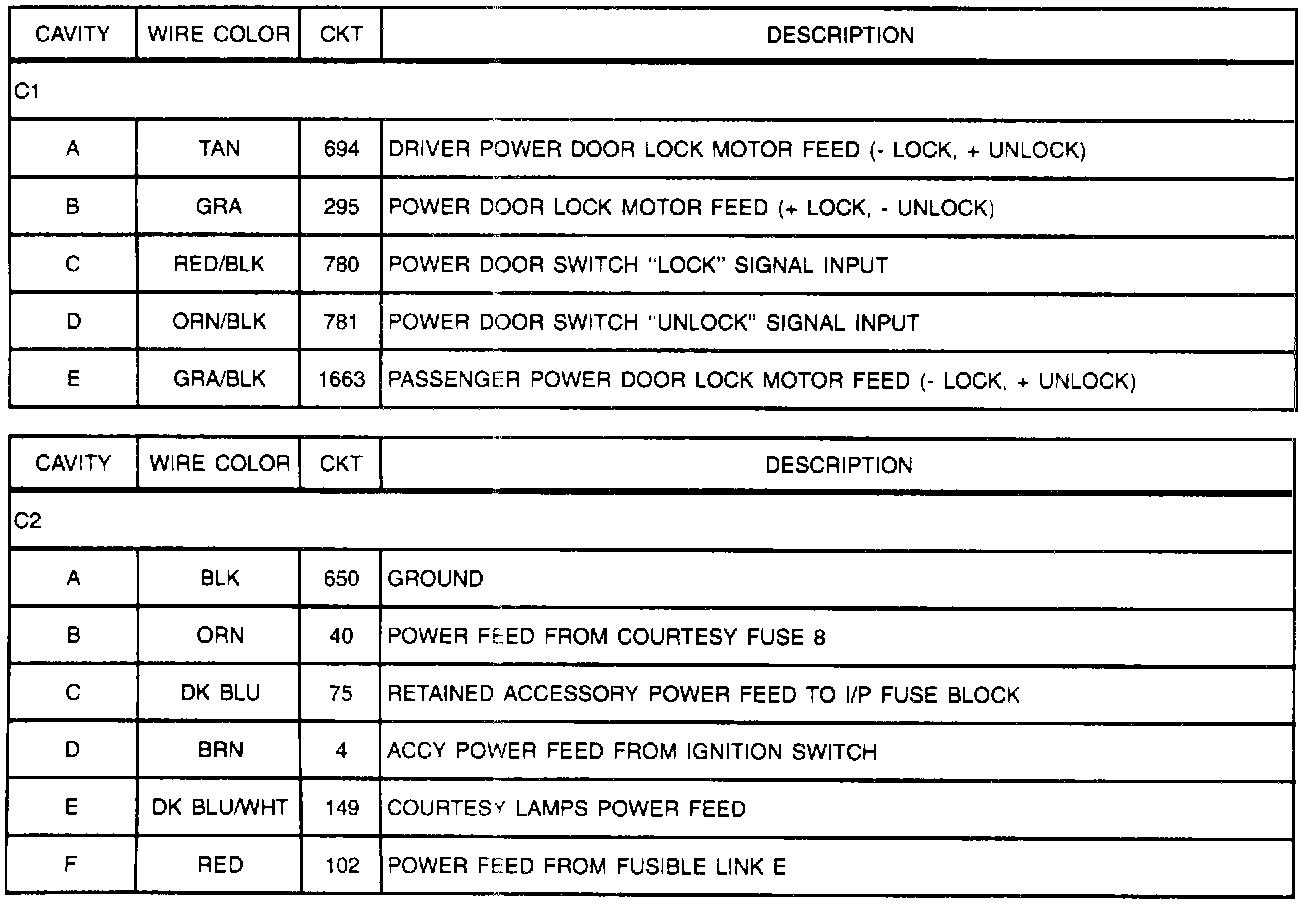

C1, C2, C3: Body Control Module (BCM) (Part 1 Of 2):

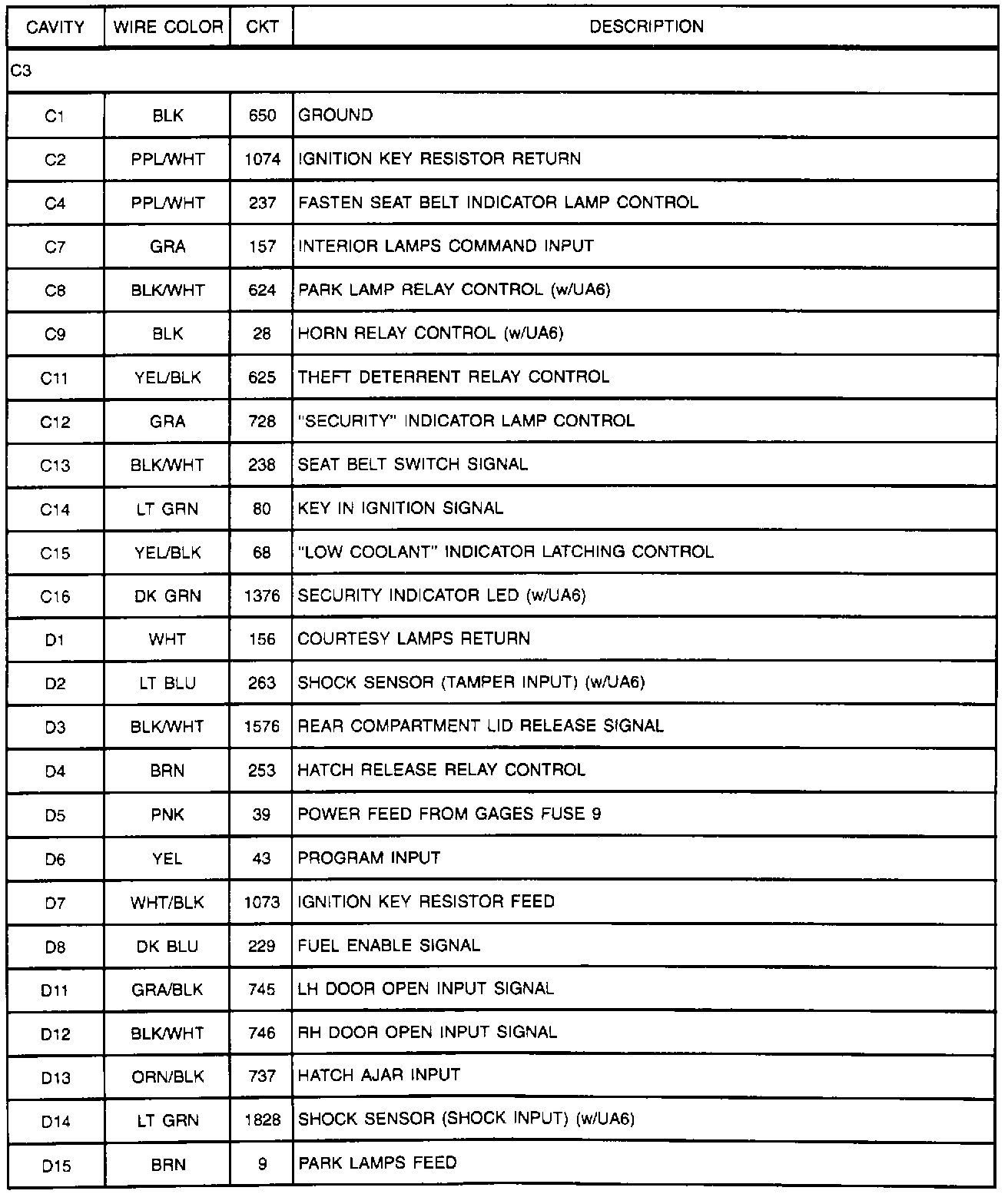

C1, C2, C3: Body Control Module (BCM) (Part 2 Of 2):
