Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C1 (Blue)
>>
Pin Information
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pin Information

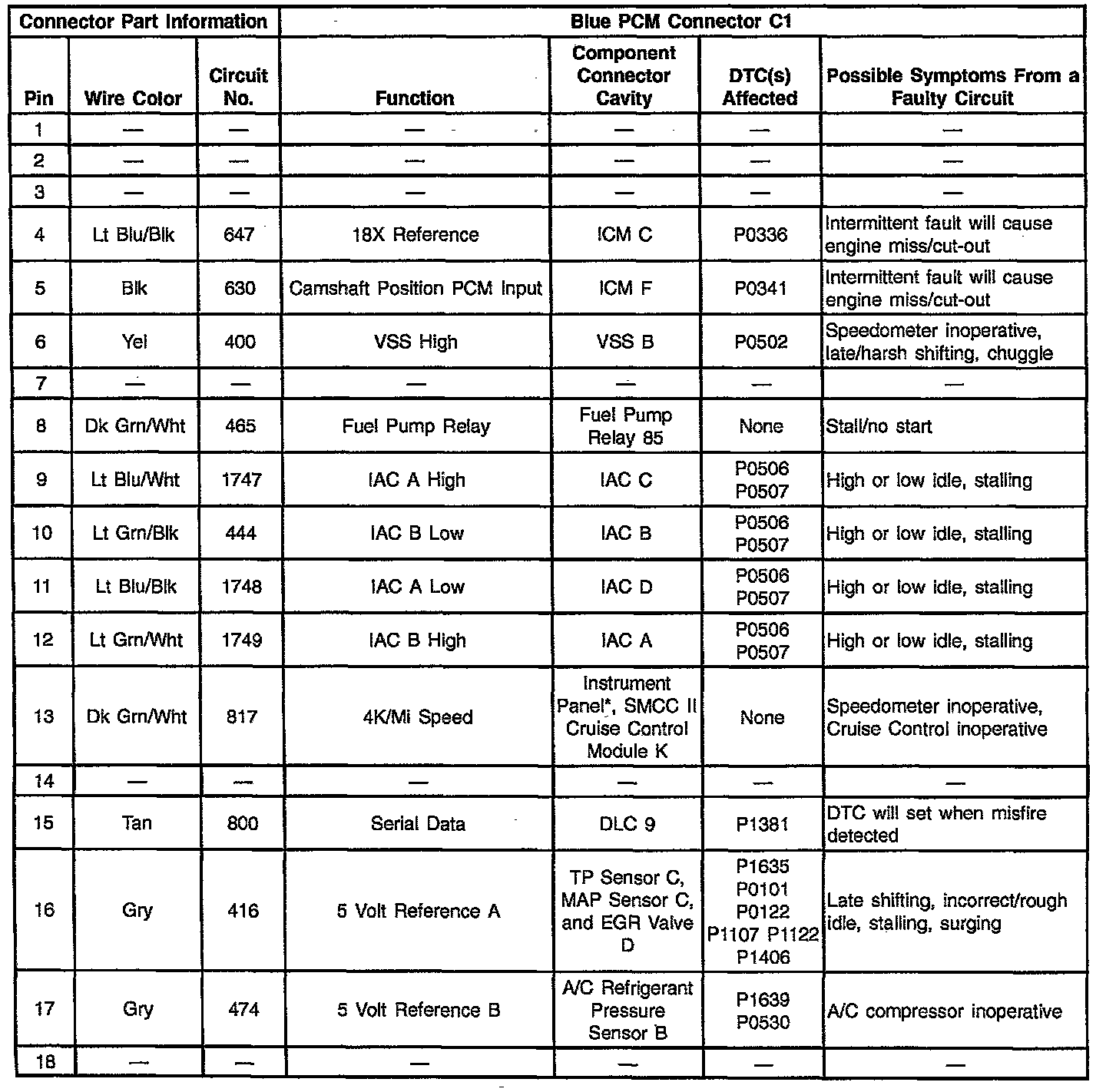

Pins 1-18:

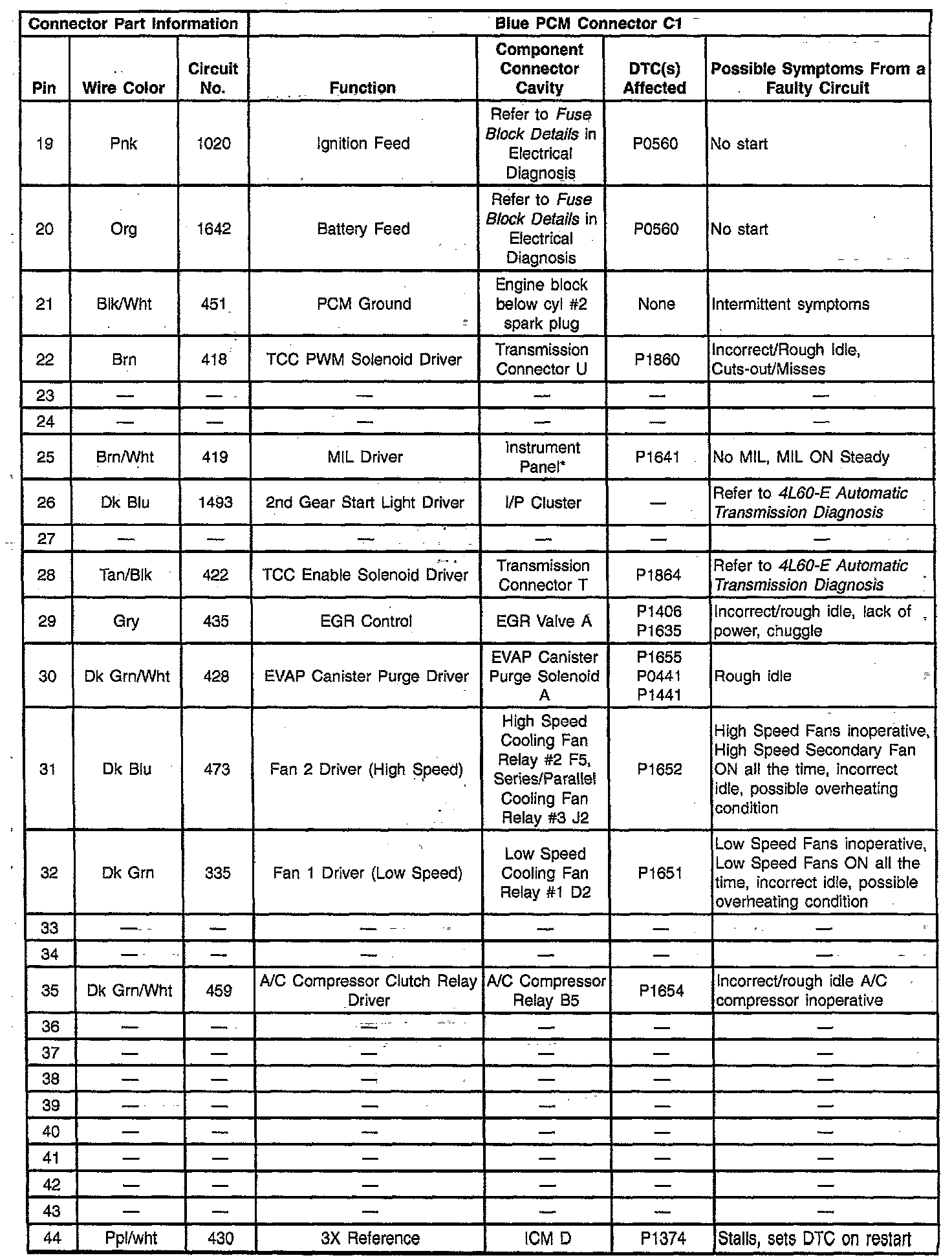

Pins 19-44:

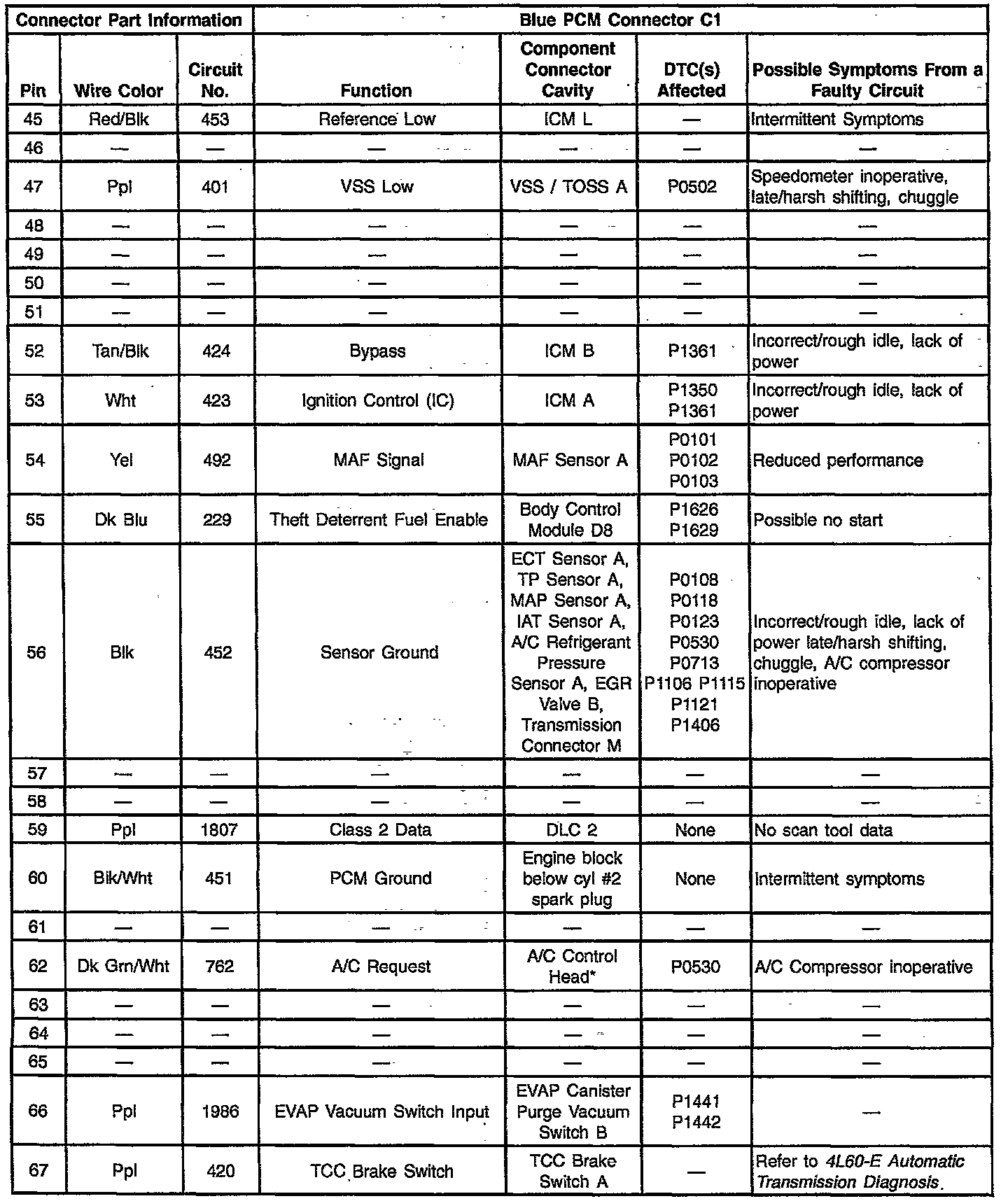

Pins 45-67:

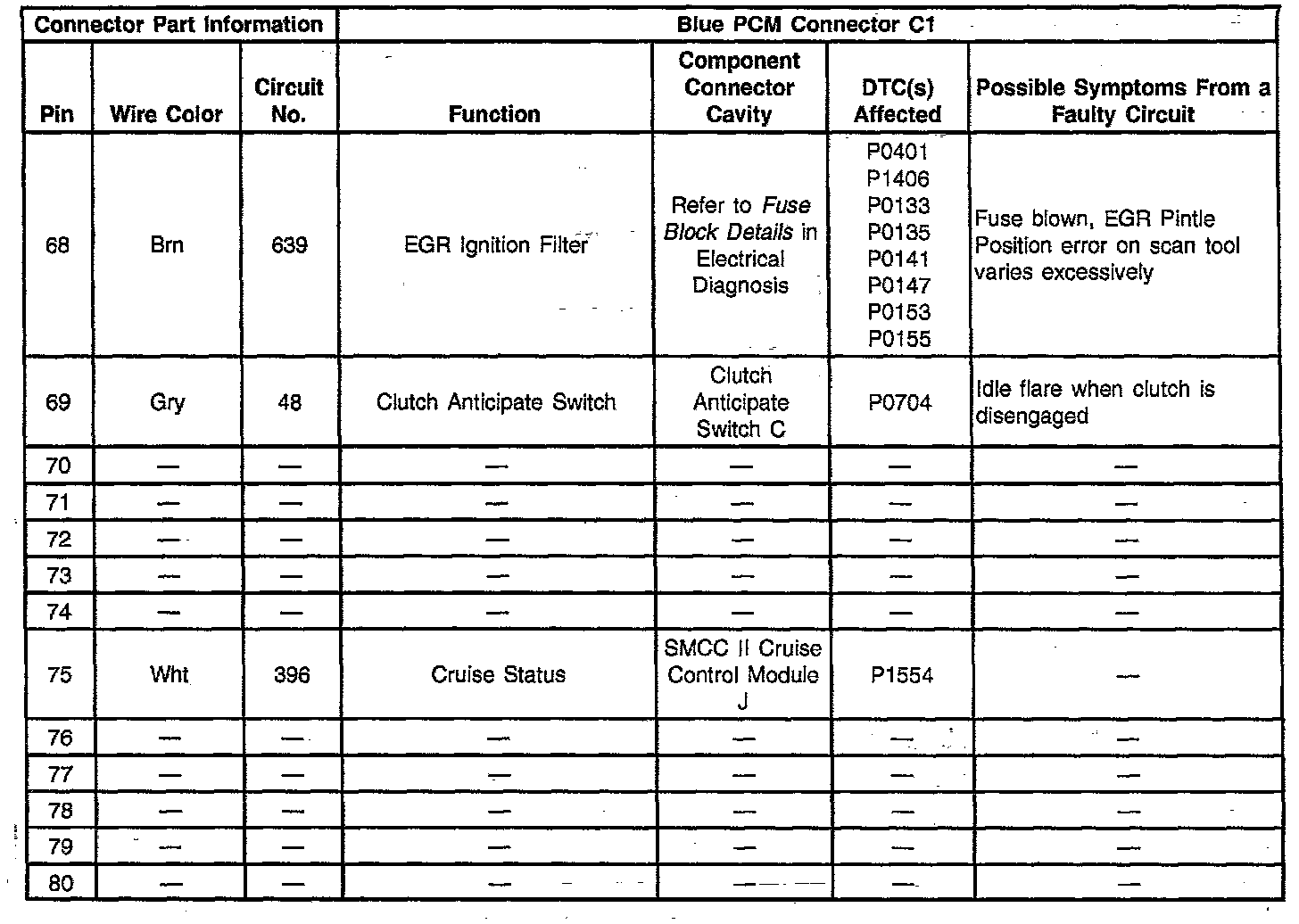

Pins 68-80:
