Passlock System Controller Learning Procedure

CONTROLLER LEARNING PROCEDURE

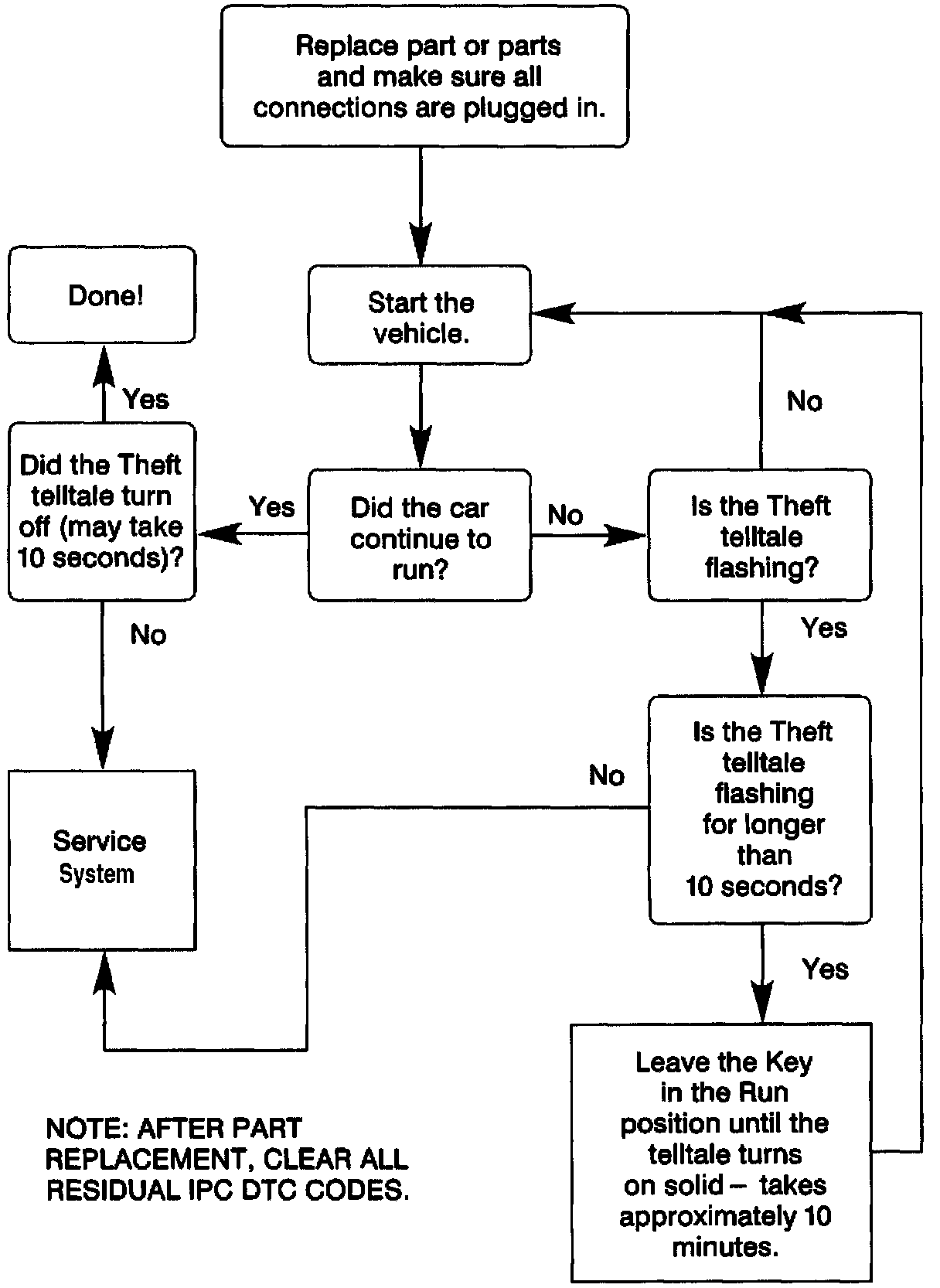

Controller Learning Diagram:

Passlock Relearn Procedure:

The PASSLOCK System is designed to prevent theft even if various theft deterrent parts are changed. Parts that can no longer be changed without the possibility of going into a tamper mode are:
- PASSLOCK Lock Cylinder
- Instrument Panel Cluster (IPC)
- Powertrain Control Module (PCM)
If any of these parts are replaced, the vehicle may start and stall for 10 (ten) minutes (LONG TAMPER MODE). If this occurs, the system MUST go through a LONG TAMPER MODE cycle. During this time, the THEFT TELLTALE will be flashing for the full ten minutes. The IPC and PCM require the full ten minutes to complete a learn cycle. The Ignition Key MUST remain in the "RUN" position until the telltale stops flashing or the cycle will have to be repeated.
