Engine Compartment Fuse/Relay Center

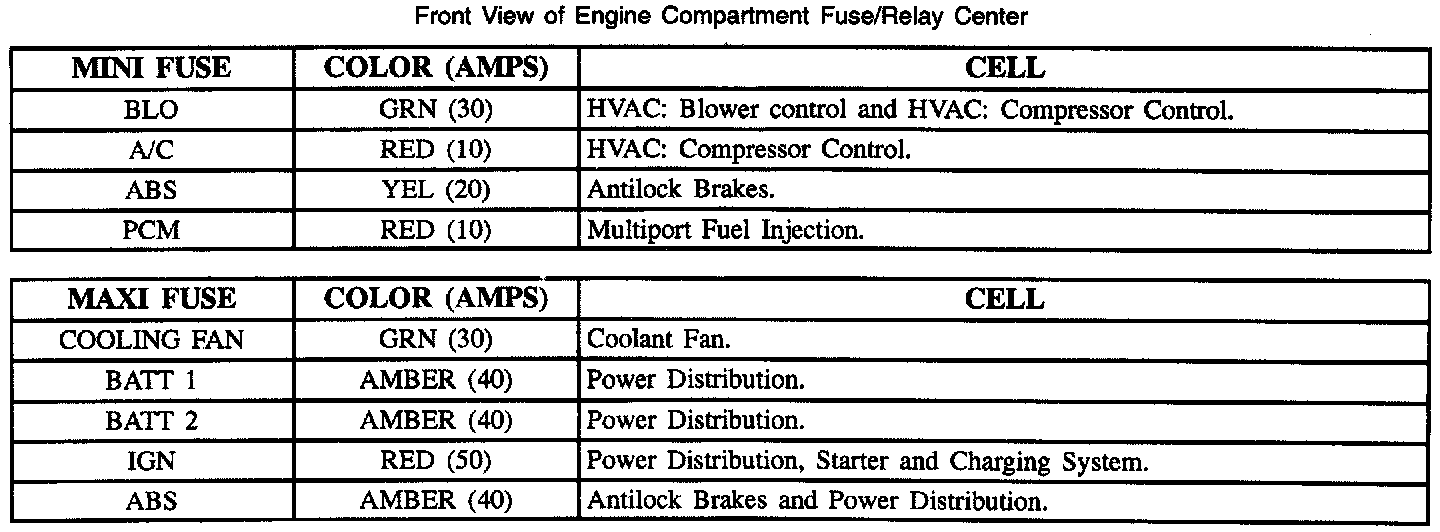

Front View Of Engine Compartment Fuse/Relay Center:



Front View Of Engine Compartment Fuse/Relay Center:
