Pinout Description

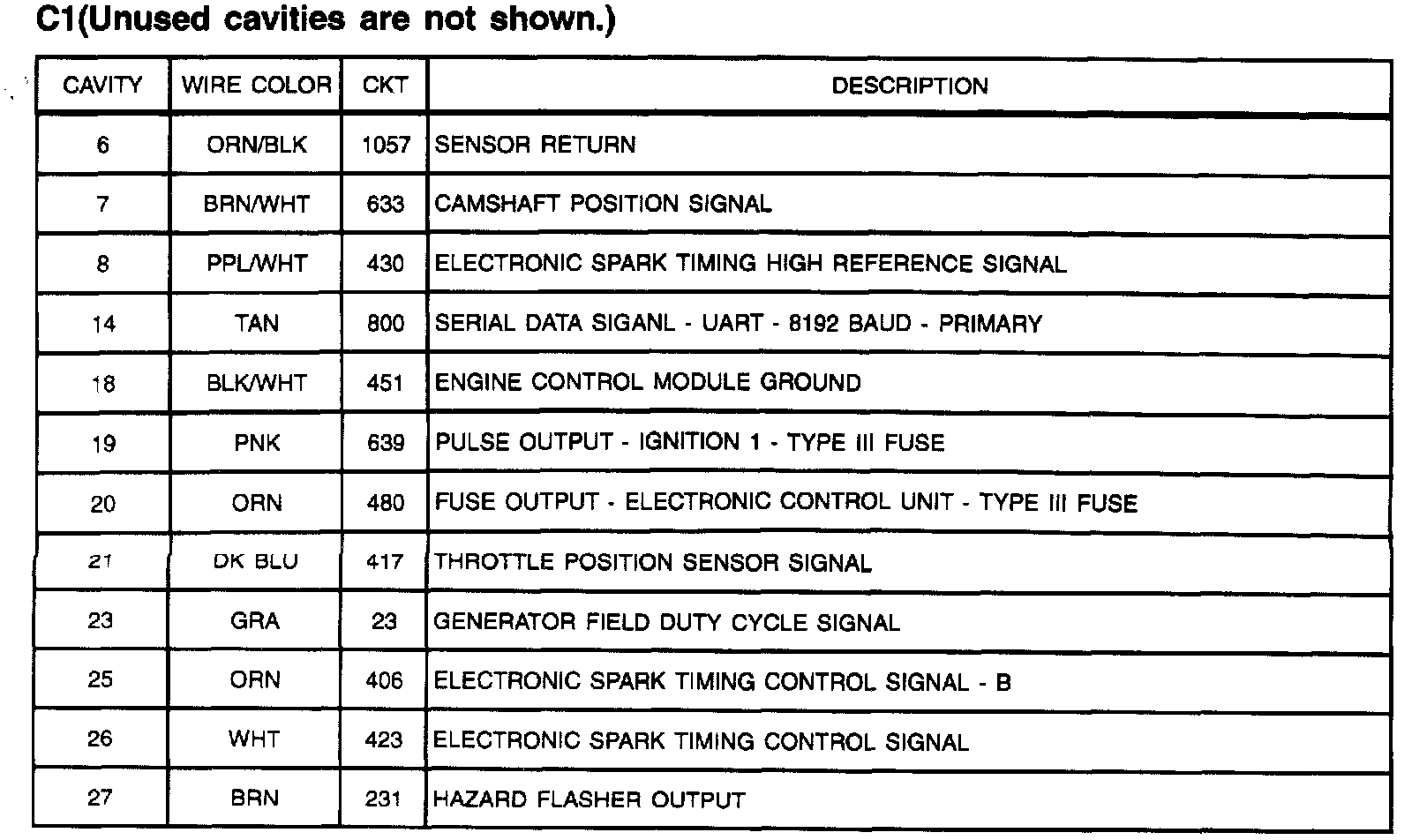

Powertrain Control Module: C1 (Unused Cavities Are Not Shown) (Part 1 Of 2):

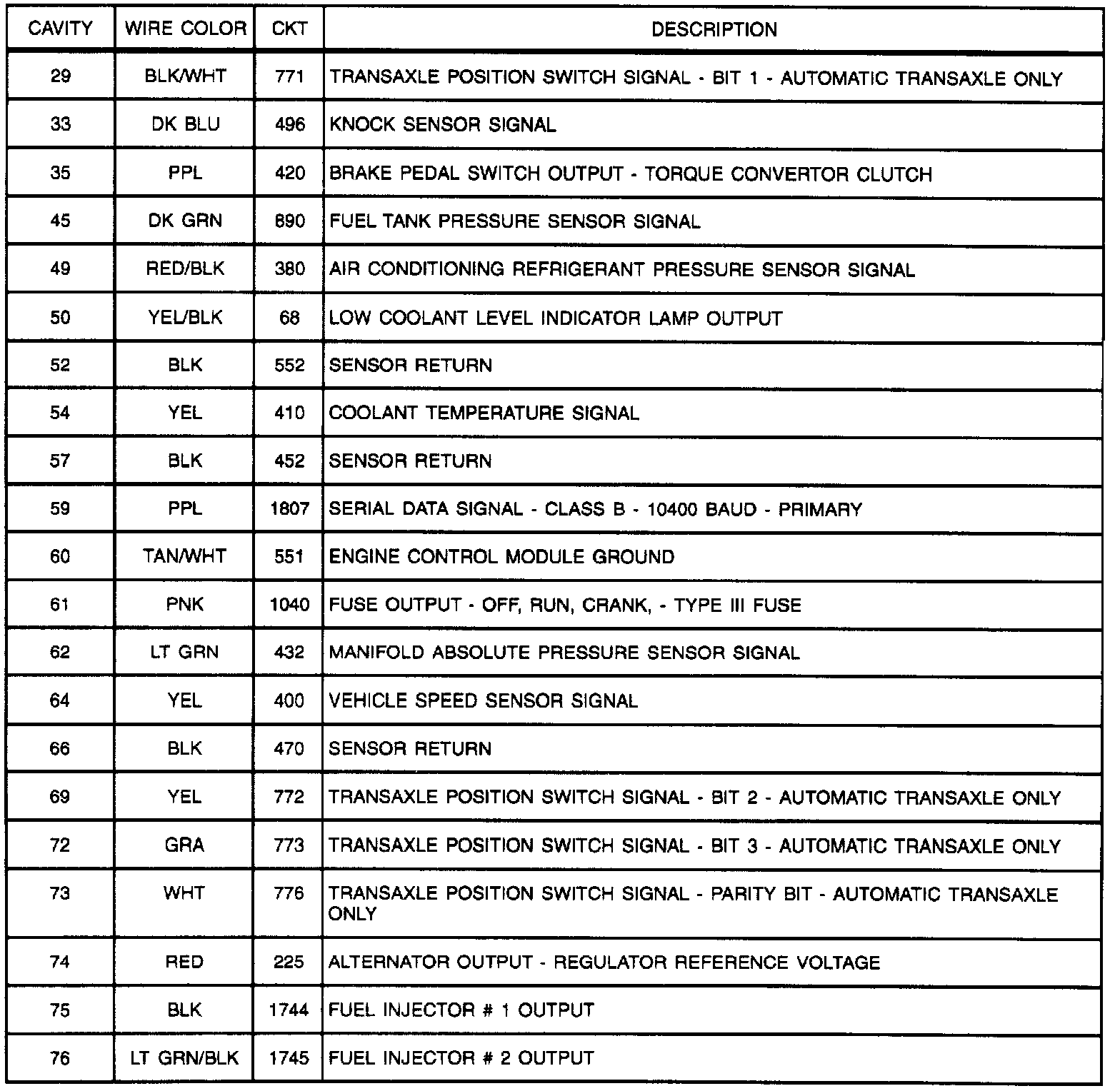

Powertrain Control Module: C1 (Unused Cavities Are Not Shown) (Part 2 Of 2):

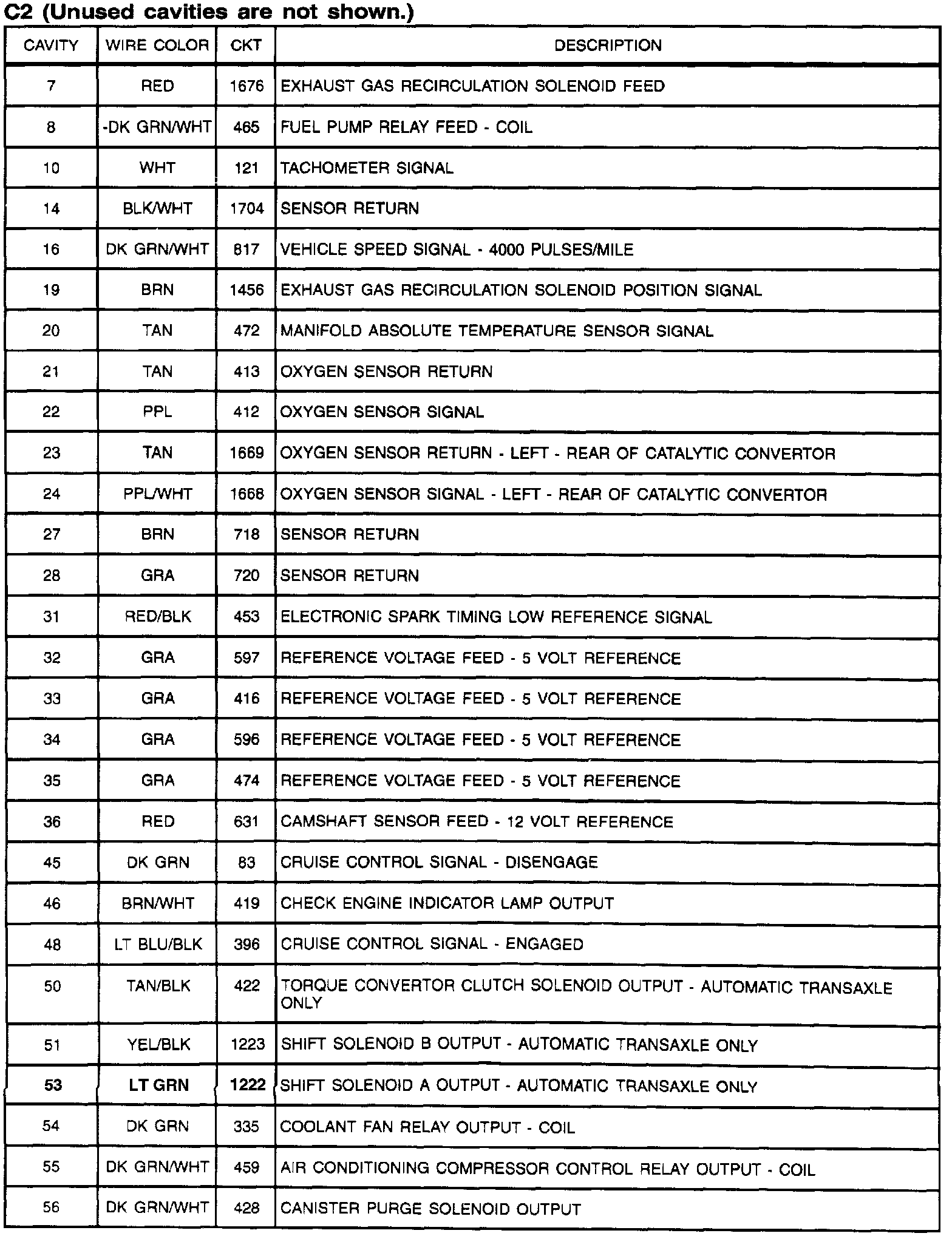

Powertrain Control Module: C2 (Unused Cavities Are Not Shown) (Part 1 Of 2):

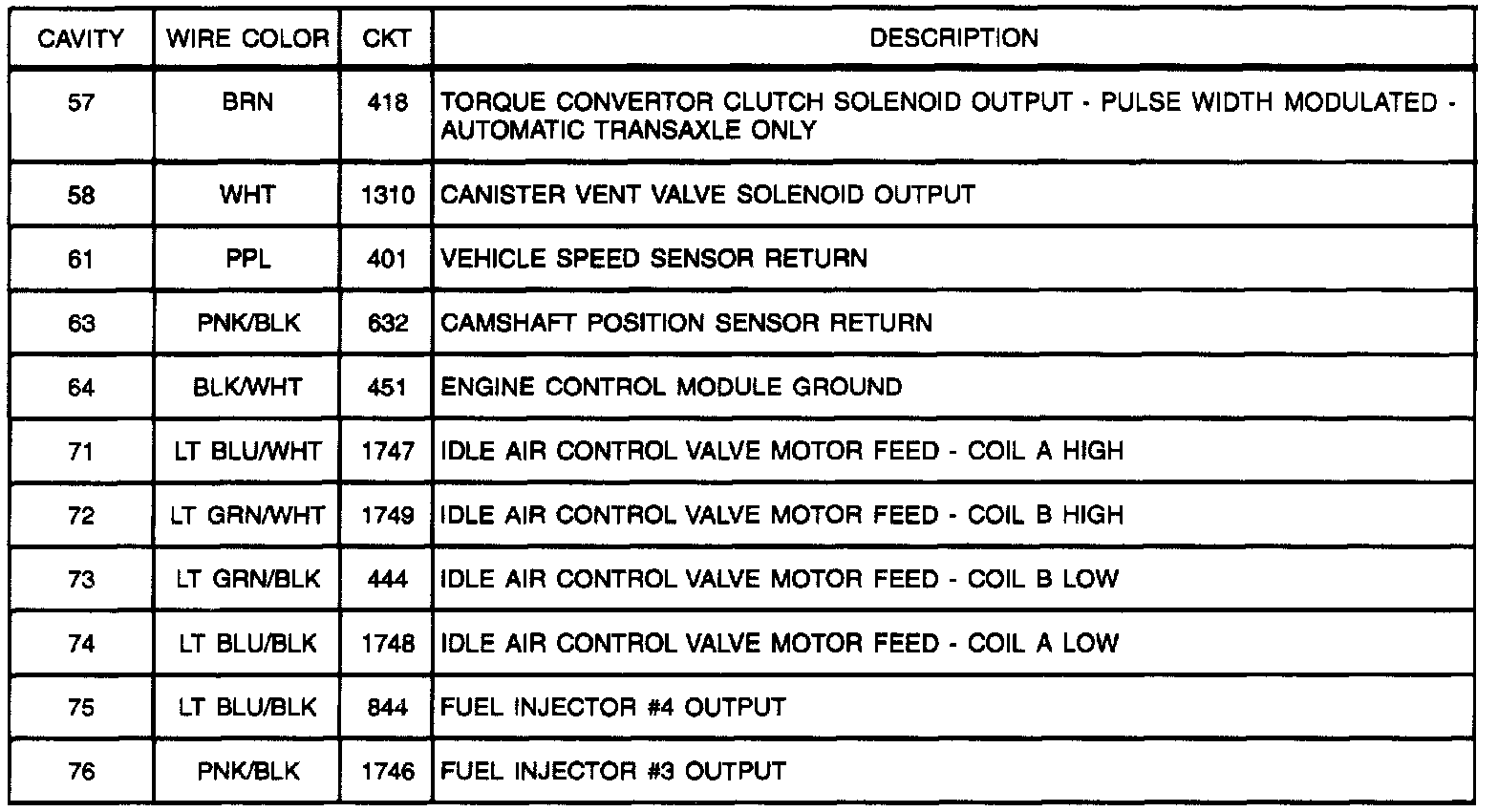

Powertrain Control Module: C2 (Unused Cavities Are Not Shown) (Part 2 Of 2):
