Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Power Window Switch

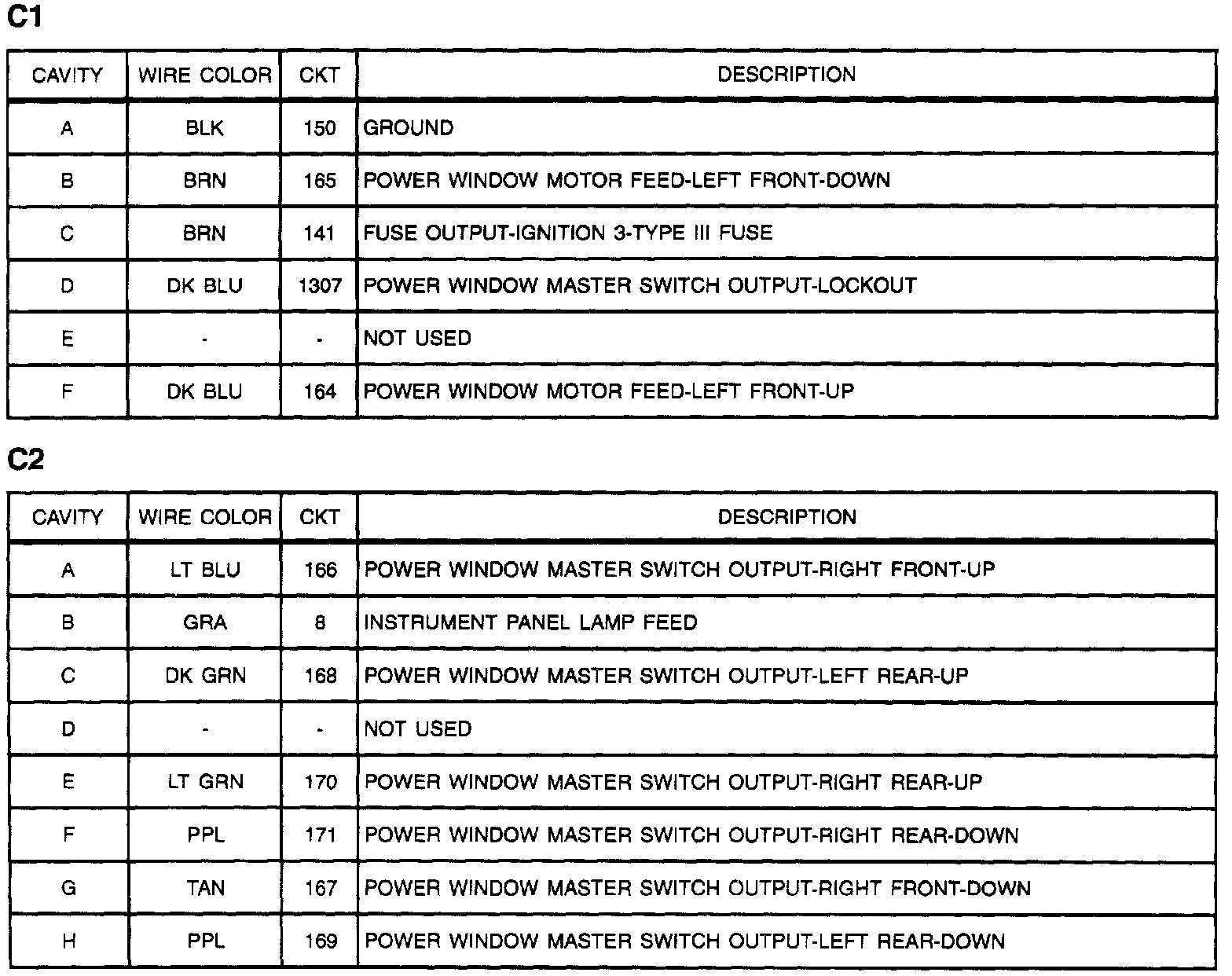

Master Window Switch: 4 Door (C1 And C2):



Master Window Switch: 4 Door (C1 And C2):



Rear Window And Door Lock Switches:
