Front Camber Adjustment

Important: When camber adjustment is necessary, Refer to "Front Suspension" for instructions on modifying the front strut.

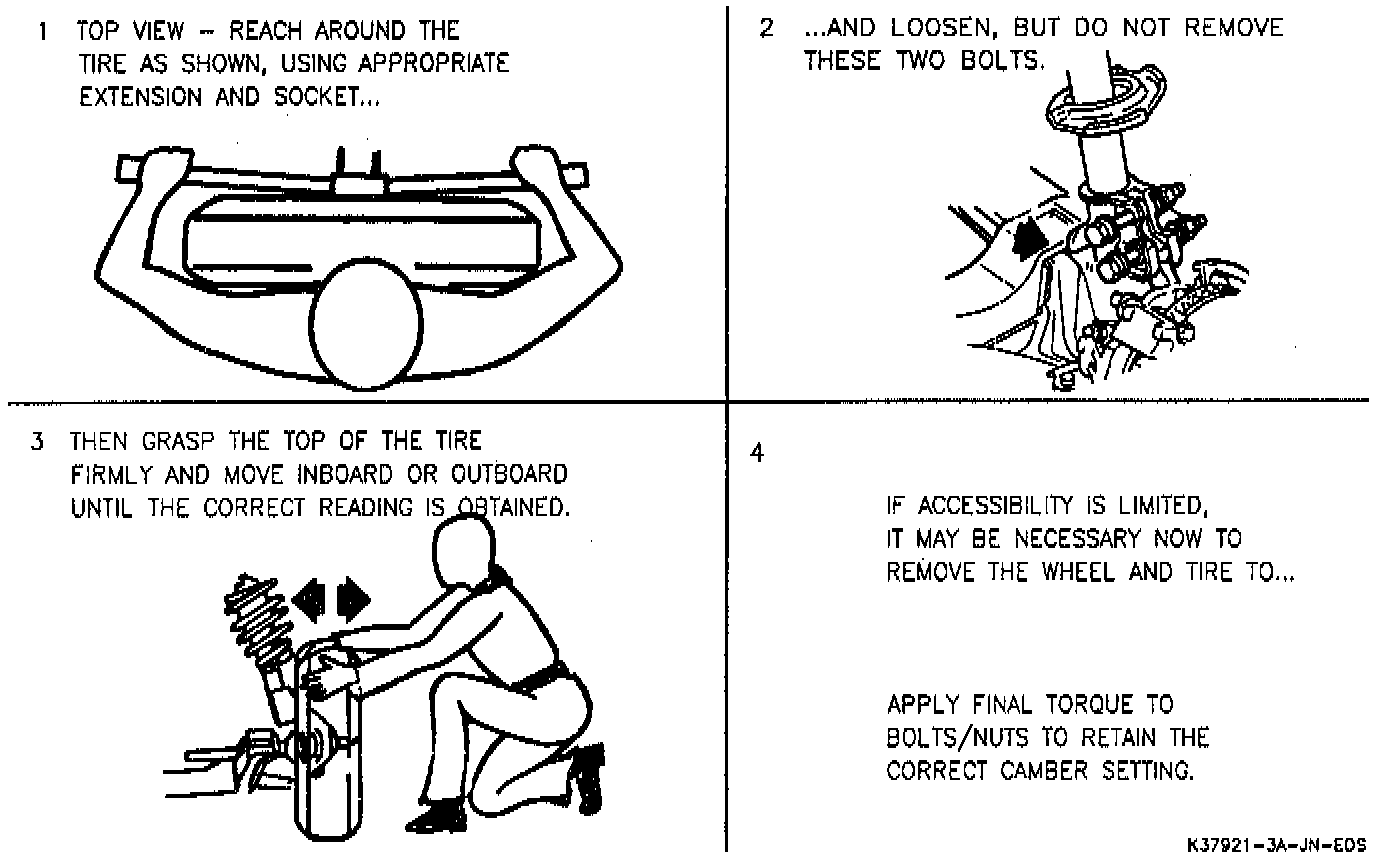

GENERAL PROCEDURE
^ Loosen both strut to knuckle nuts just enough to allow movement.
^ Adjust the camber to specification by moving top of wheel in or out. Refer to "Specifications."
^ Tighten the strut-to-knuckle nuts to 180 Nm (133 ft. lbs.).
