Window Regulator Assembly

DOOR REGULATOR ASSEMBLY

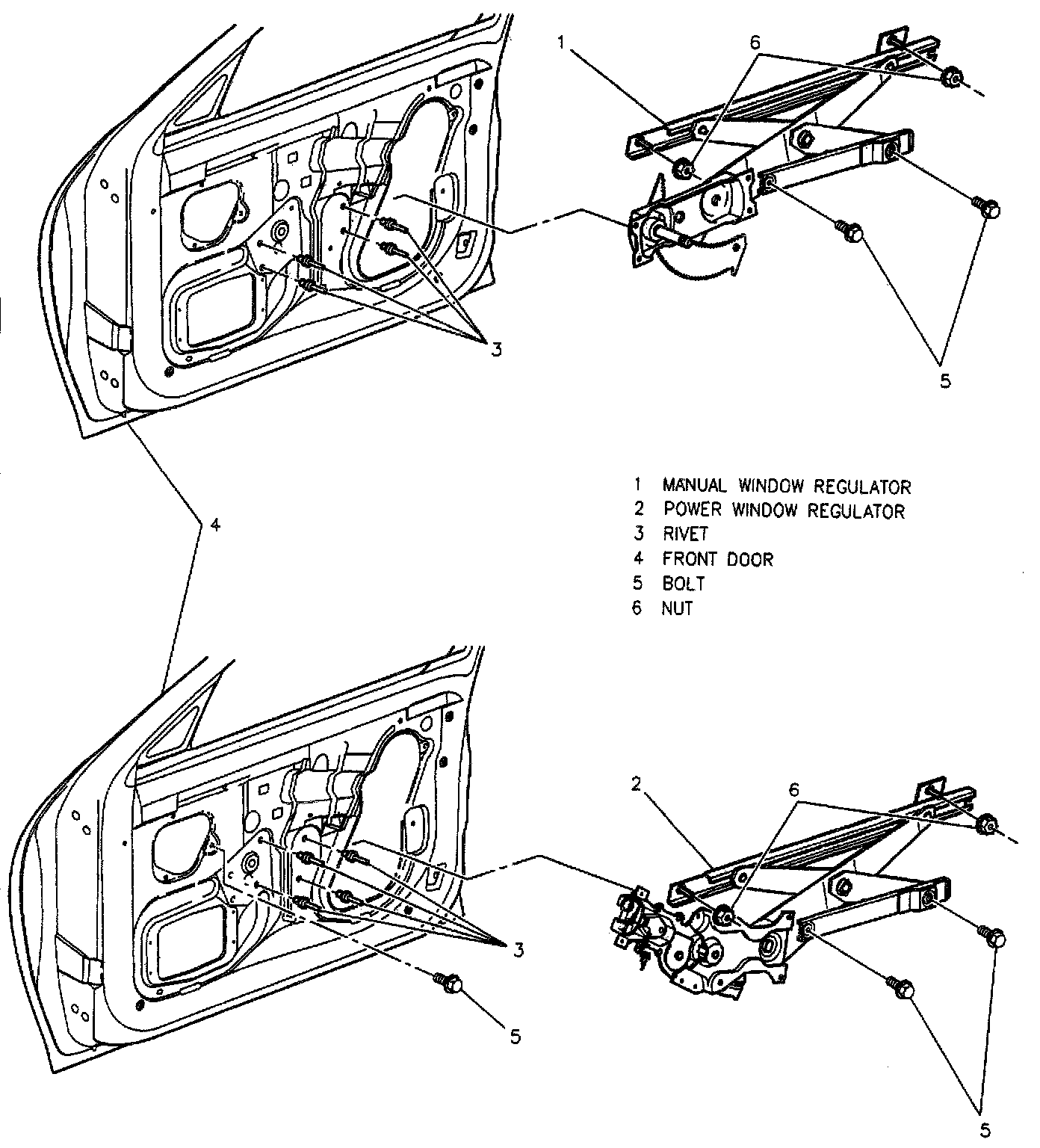

Front Door Window Regulator:

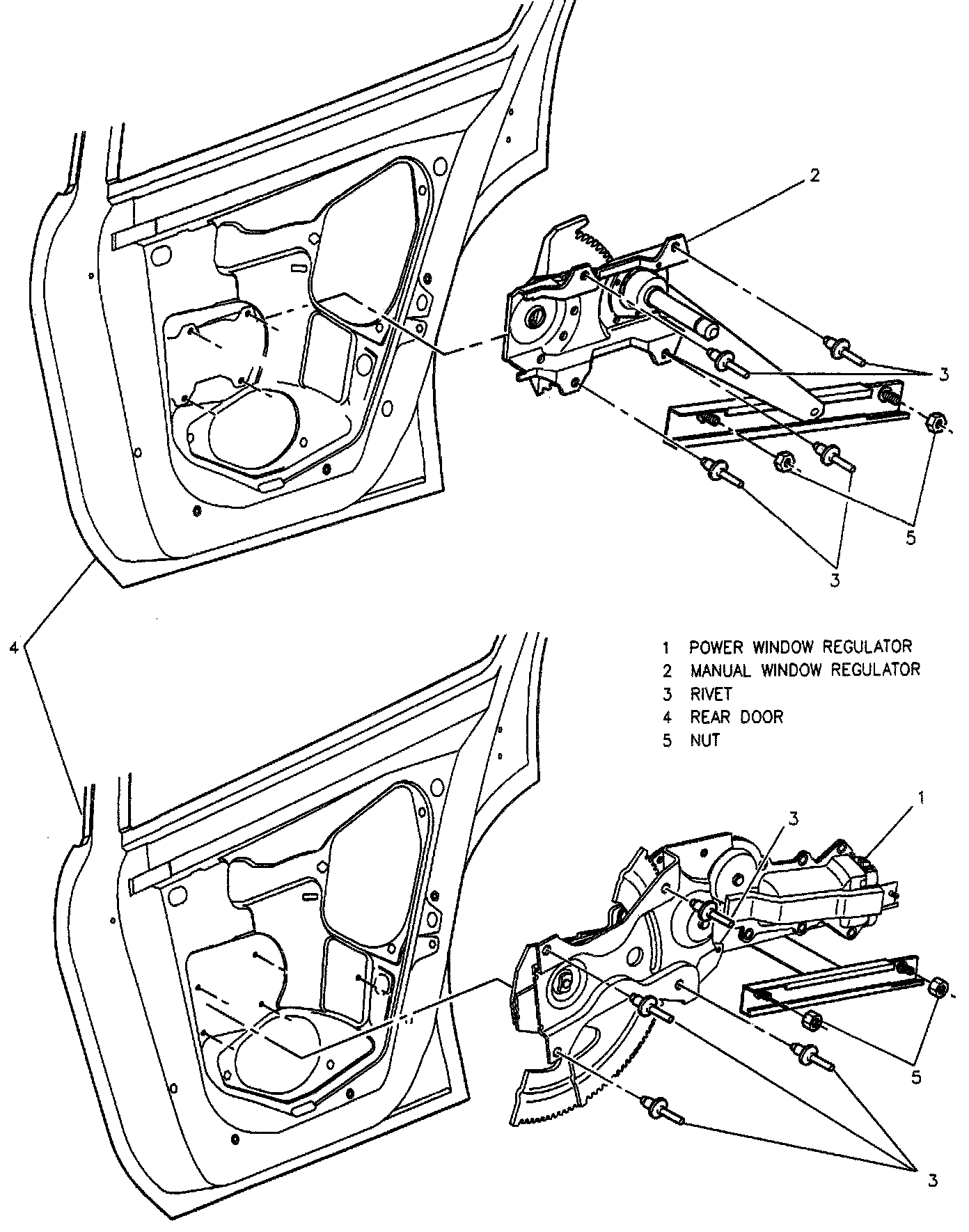

Rear Door Window Regulator:

REMOVE OR DISCONNECT
1. Door trim panel.
2. Enough door water deflector to access door window regulator.
3. Door window assembly.
4. (Front Door Only) Door regulator bolts.
5. Door regulator rivets.
6. Door regulator.

INSTALL OR CONNECT
1. Door regulator.
2. Door regulator rivets.
3. (Front Door Only) Door regulator bolts.

TIGHTEN
^ Bolt to 10 N.m (89 lb in).

4. Door regulator nuts.

TIGHTEN
^ Nut to 10 N.m (89 lb in).

5. Door window assembly.
6. Door water deflector.
7. Door trim panel.
