Removal & Installation

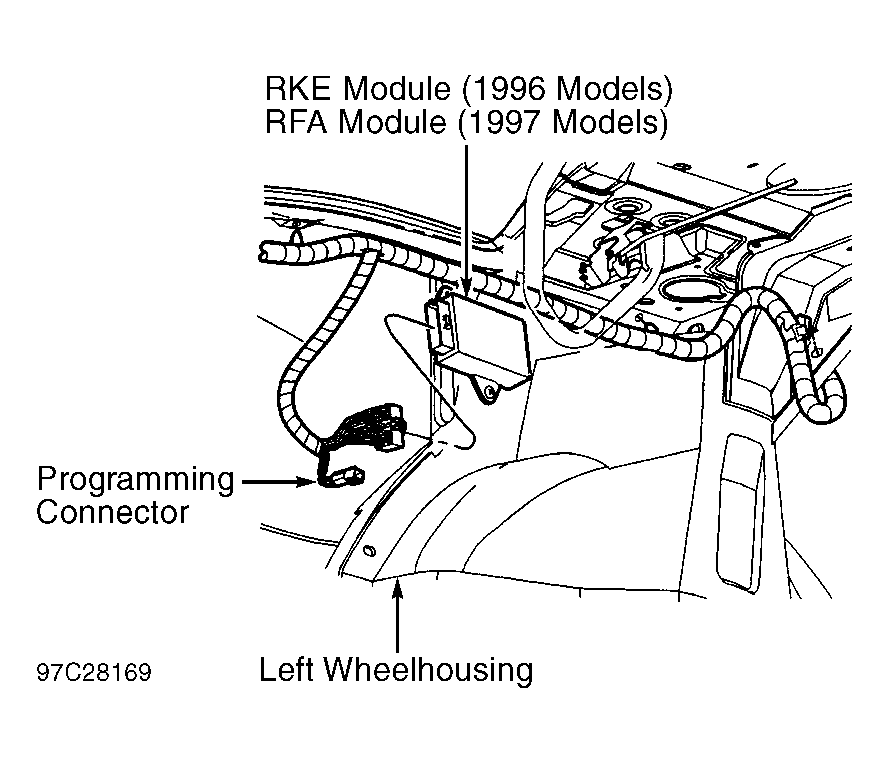

Disconnect negative battery cable. Open trunk lid. Remove left inner trim panel. Disconnect electrical connector. Remove module push pins. Remove module. See Figure . To install, reverse removal procedure. Program module to match transmitter(s). See PROGRAMMING PROCEDURE  .
