Throttle Position (TP) Sensor

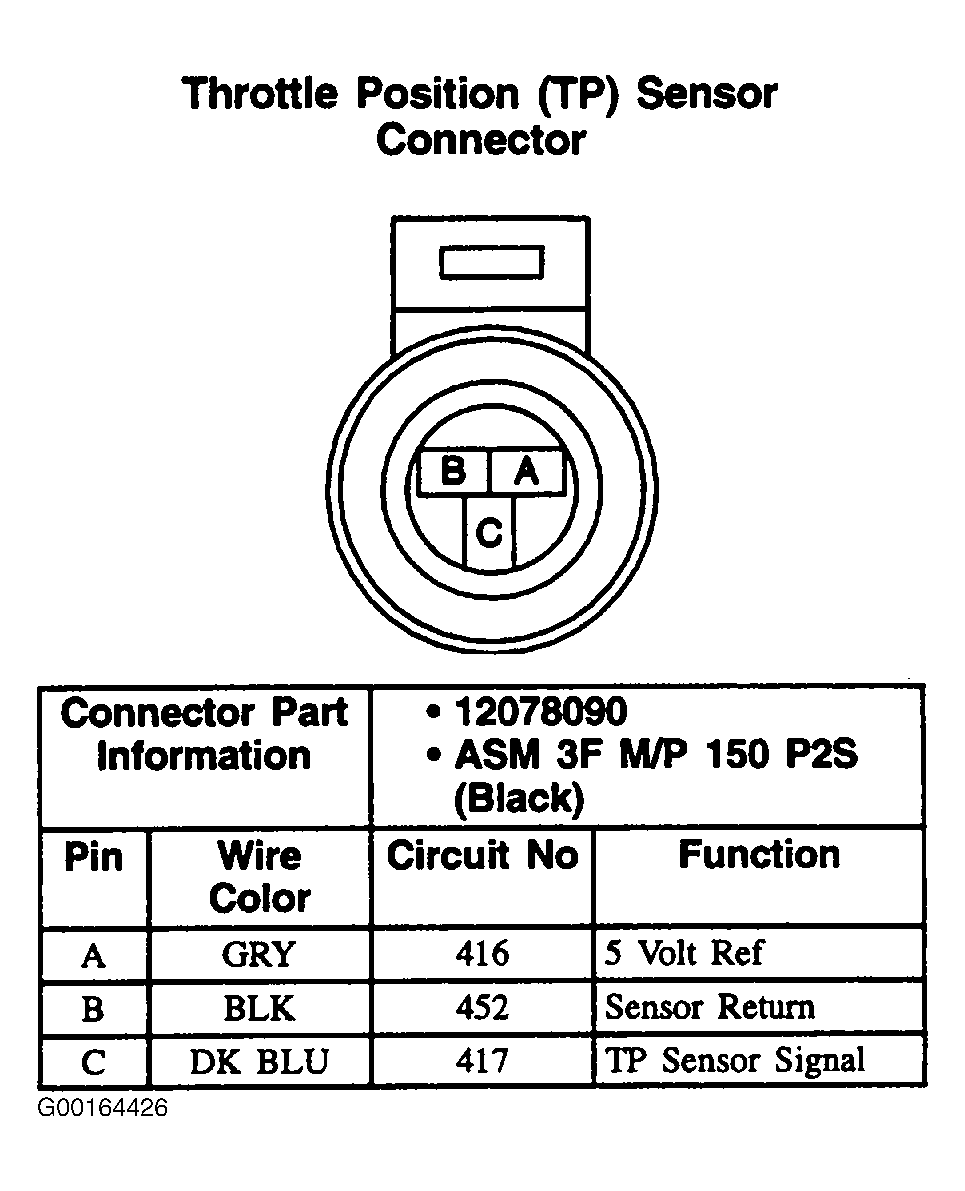

Fig 1: Throttle Position (TP) Sensor - 3-Pin Connector, Black
G00164426Courtesy of GENERAL MOTORS CORP.
