No-Start / Non-Functional Pcm After Reprogramming (87-65-10)

NO-START / NON-FUNCTIONAL PCM AFTER REPROGRAMMING

TECHNICAL SERVICE BULLETIN

NO START CONDITION, NON-FUNCTIONAL PCM AFTER REPROGRAMMING (REPLACE/REPROGRAM PCM)

Model(s): 1997-99 Chevrolet Corvette

Section: 6E - Engine Fuel & Emission

Bulletin No.: 87-65-10

Date: March, 1998

VEHICLES AFFECTED

1997-99 Chevrolet Corvette with 5.7L engine (VIN G - RPO LS1).

CONDITION

Some 1997-99 Chevrolet Corvettes may experience a non-functional PCM after reprogramming the PCM. This may result in a no-start condition.

CAUSE

When reprogramming the PCM, the on-board control modules may attempt to communicate with the PCM across the Class II data link. When this happens, the reprogramming procedure is interrupted and will result in a non-functional PCM. If this happens, a new PCM must be installed and calibration downloaded.

CORRECTION

When reprogramming any 1997, 1998 or 1999 Chevrolet Corvette, check and record all stored trouble codes. When reprogramming the PCM, the service method listed must be used to ensure that no other modules in the vehicle attempt to communicate with the PCM during the reprogramming procedure.

SERVICE PROCEDURE

1. Check and record all stored trouble codes.

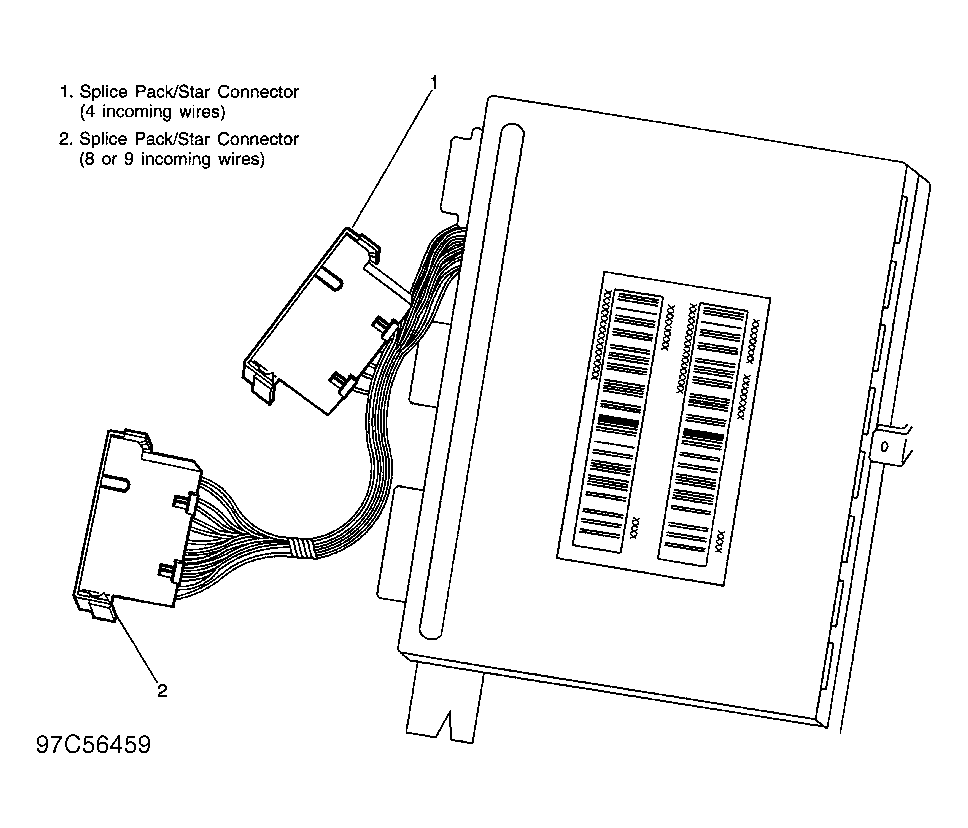

2. Install star connector cable #1- from Kent-Moore Tool J ,42236-A (Data Bus Diagnostic Switch Box) to the 12 pin splice pack/star connector with eight or nine incoming wires. See Fig 1 , Number 2. Install star connector cable #2 from Kent-Moore Tool J 42236-A to the 12 pin splice pack/star connector with four incoming wires. See Fig 1 , Number 1. These splice packs are located to the left of the BCM (Body Control Module). The splice packs/star connectors are stand alone and do not plug into the BCM. The BCM is located behind the passenger floor access panel.

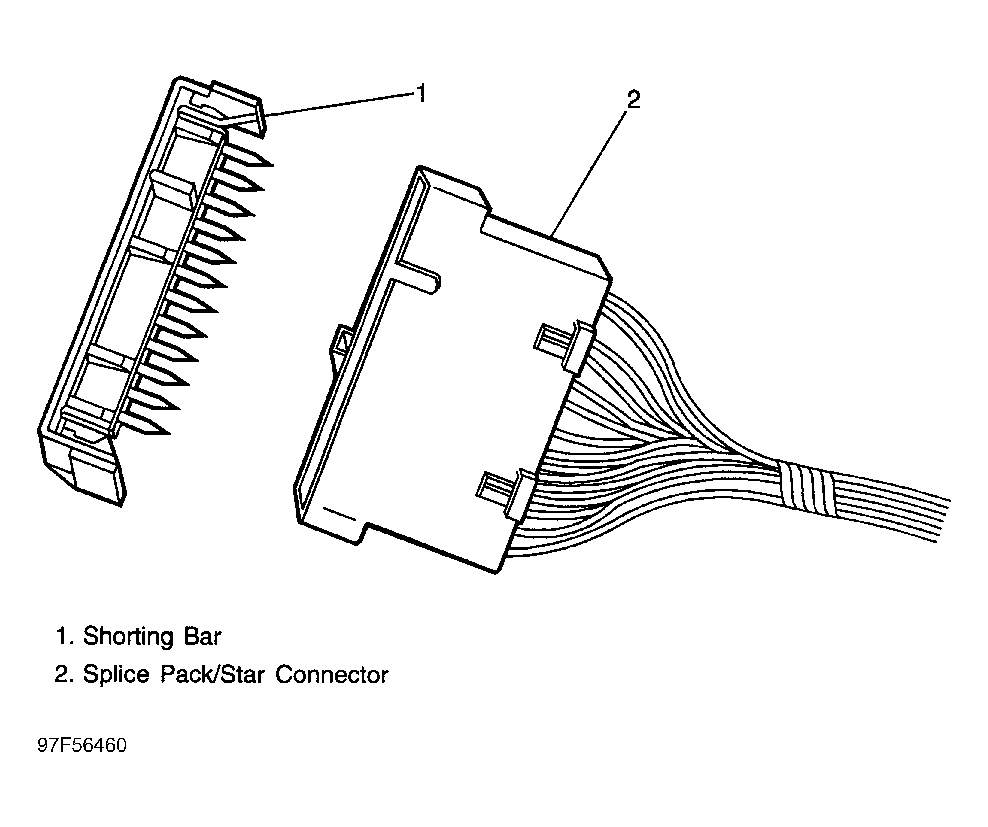

   To install Kent-Moore Tool J 42236-A, both splice pack/star connector shorting bars need to be removed from the splice pack/star connector. See Fig 2 , Number 2. This is done by squeezing both ends of the shorting bar and pulling it away from the splice pack. See Fig 2 , Number 1.

   The splice packs/star connectors may have to be removed from their mounting pins to install Kent-Moore Tool J 42236-A. The splice packs/star connectors must be visually checked to ensure the proper cable from Kent-Moore Tool J 42236-A is installed on the correct splice pack/star connector.

3. Ensure toggle switch on Kent-Moore Tool J 42236-A is in the Star Connector Number 1 position.
4. Turn the selector button on Kent-Moore Tool J 42236-A to the "B" mode.
5. Reprogram the PCM by following normal PCM reprogramming procedures.
6. Disconnect Tool J 42236-A and reinstall both shorting bars back on to the splice packs.
7. To ensure the vehicle is not returned to the owner with stored trouble codes, check all vehicle modules for trouble codes. Refer to the Service Manual to correct trouble codes that may have been recorded prior to reprogramming and are still present. Any trouble codes that may appear after the reprogramming procedure must also be diagnosed using the Service Manual.

WARRANTY INFORMATION

For vehicles repaired under warranty, use:

Labor Operation No.: J-6355

Labor Time: 0.7 hr.
