Fuel Level Sender Unit & Float: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel level sender unit and float onto fuel pump module. Make sure that sender card snaps into place. Connect fuel level sender unit and float electrical connector. Install fuel pump module into fuel tank. See PRIMARY FUEL PUMP MODULE or SECONDARY FUEL PUMP MODULE . Install fuel tank. See FUEL TANK .

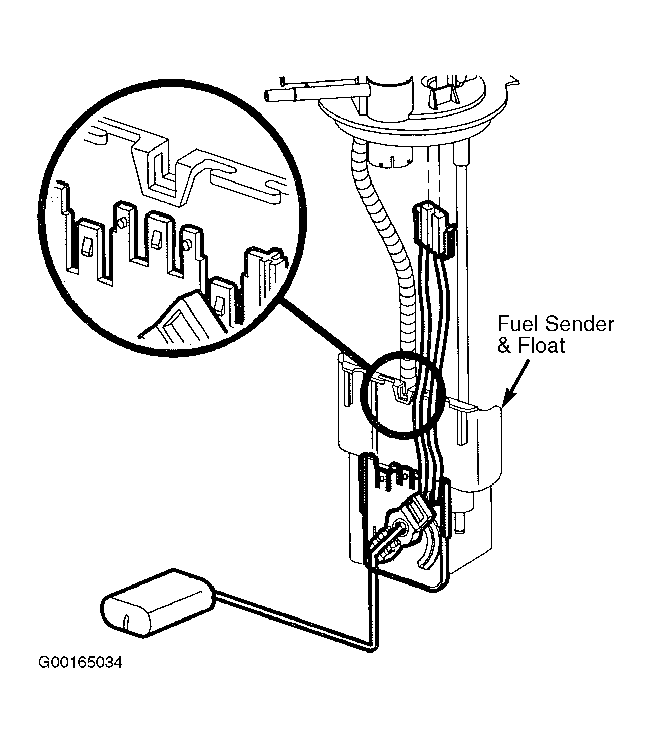

Fig 1: Identifying Fuel Level Sender Unit & Float

Courtesy of GENERAL MOTORS CORP.
