Wheel Speed Signal Module Conditioner Module: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install wheel speed conditioner module by inserting module into connector. Make sure module is fully seated. Tape module to harness at point where connector lies. Install front console left trim panel retainer screws and push pin.
  2. Install steering column filler panel by aligning retention clips with corresponding slots in retainer and snapping into place. Install retainer screws.
  3. Install front console center trim panel by aligning retention clips with corresponding slots in retainer and snapping into place. Place transaxle in neutral.
  4. Install shifter bezel by aligning retention clips with corresponding slots in retainer and snapping into place. Move driver's front seat all the way forward. Slide floor console to proper position and install retainer screws.

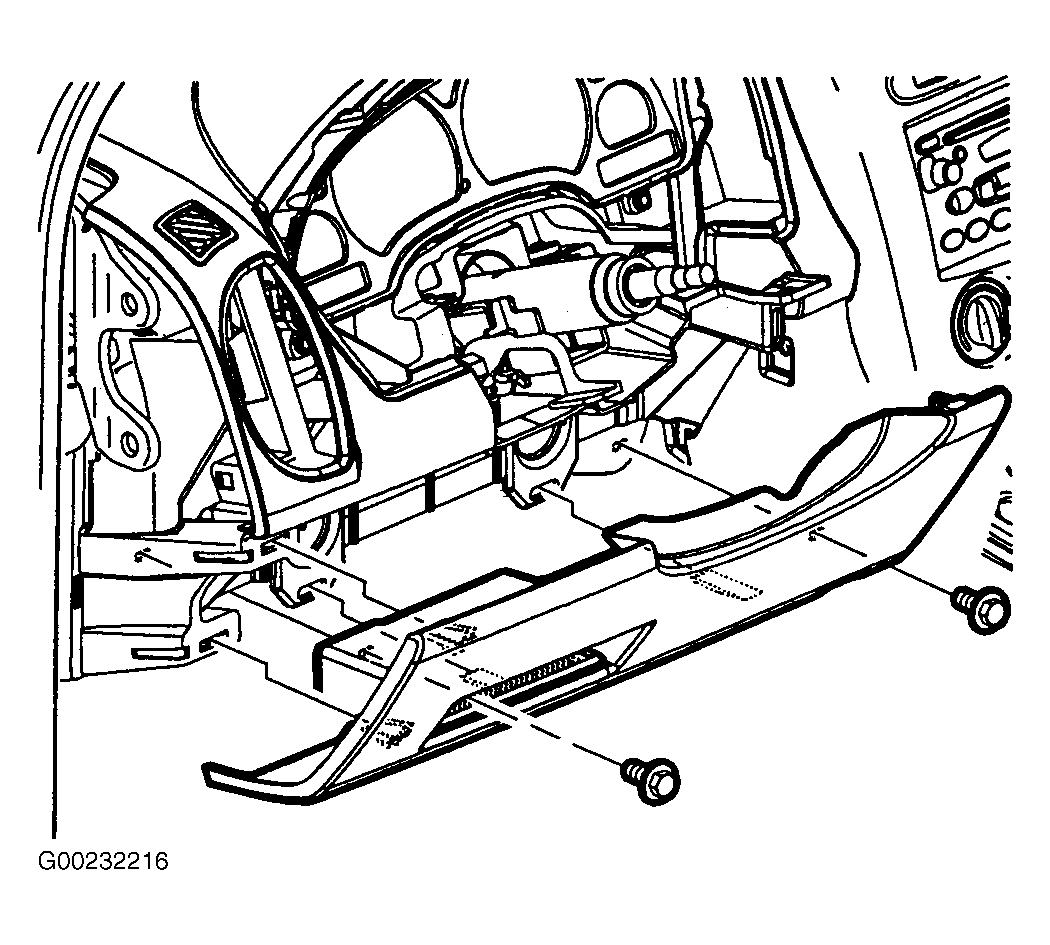

Fig 1: Removing/Installing Steering Column Filler Panel
G00232216Courtesy of GENERAL MOTORS CORP.

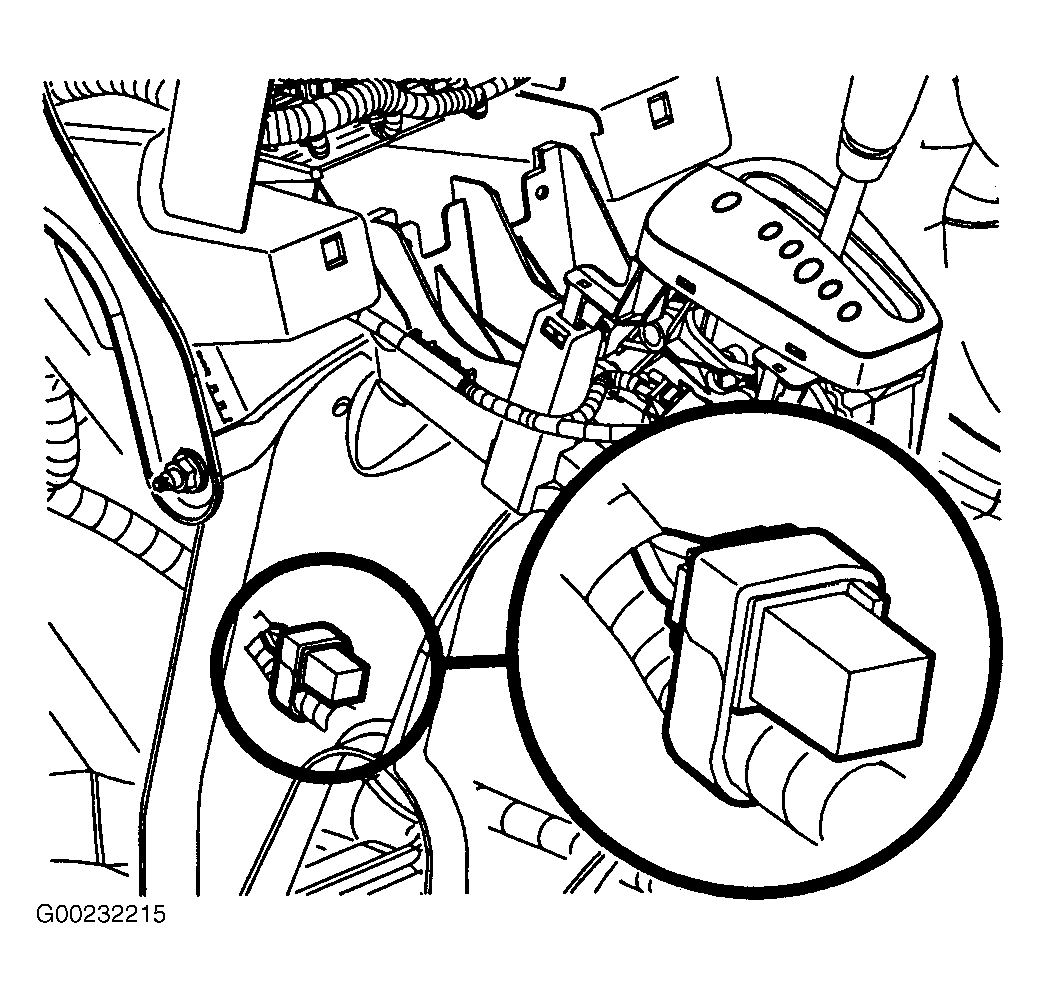

Fig 2: Locating Wheel Speed Signal Conditioner Module
G00232215Courtesy of GENERAL MOTORS CORP.
