Electronic Ignition Module: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install gasket to ignition module. Apply dielectric compound to spark plug boots and ensure no corrosion is present. Install ignition module housing assembly with spark boots into position, then install bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
Connect EI module harness connector. Push connector until the lock position is felt, then pull back to confirm engagement. Install upper intake manifold. See INTAKE MANIFOLD & SPACER (3.0L) under AIR INDUCTION SYSTEMS.
Connect negative battery cable. Tighten negative battery terminal bolt to specification. Reset all preset radio stations and set clock to correct time.

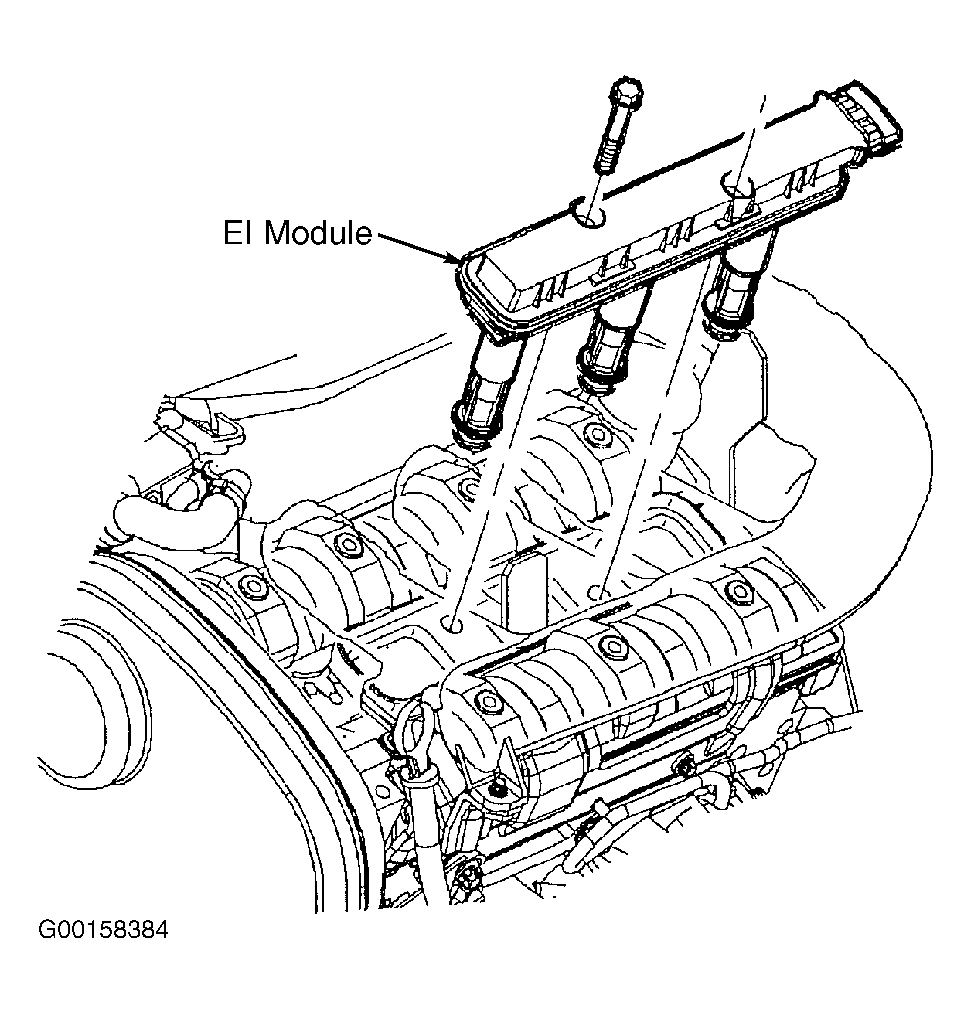

Fig 1: Removing/Installing EI Module (2.2L)

Courtesy of GENERAL MOTORS CORP.

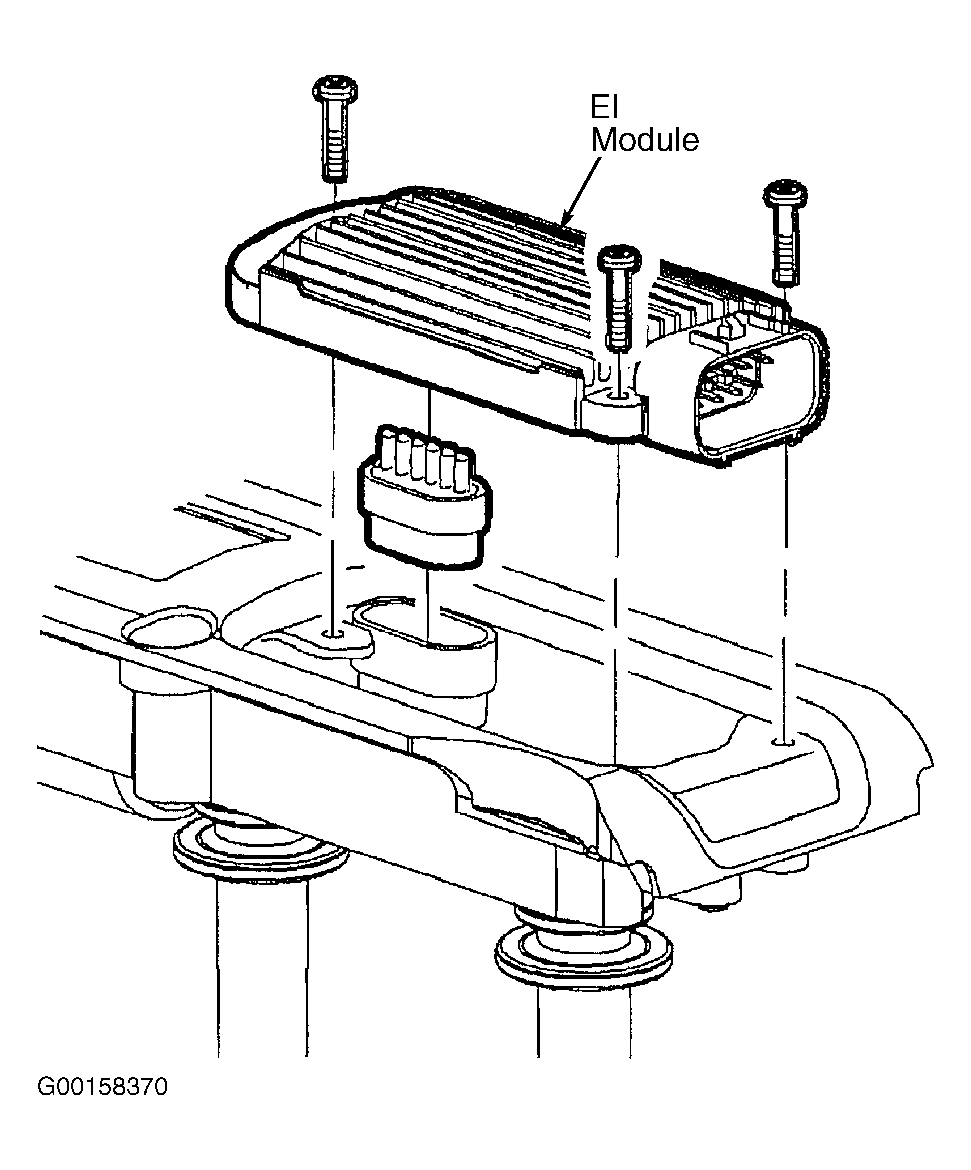

Fig 2: Removing/Installing EI Module (3.0L)

Courtesy of GENERAL MOTORS CORP.
